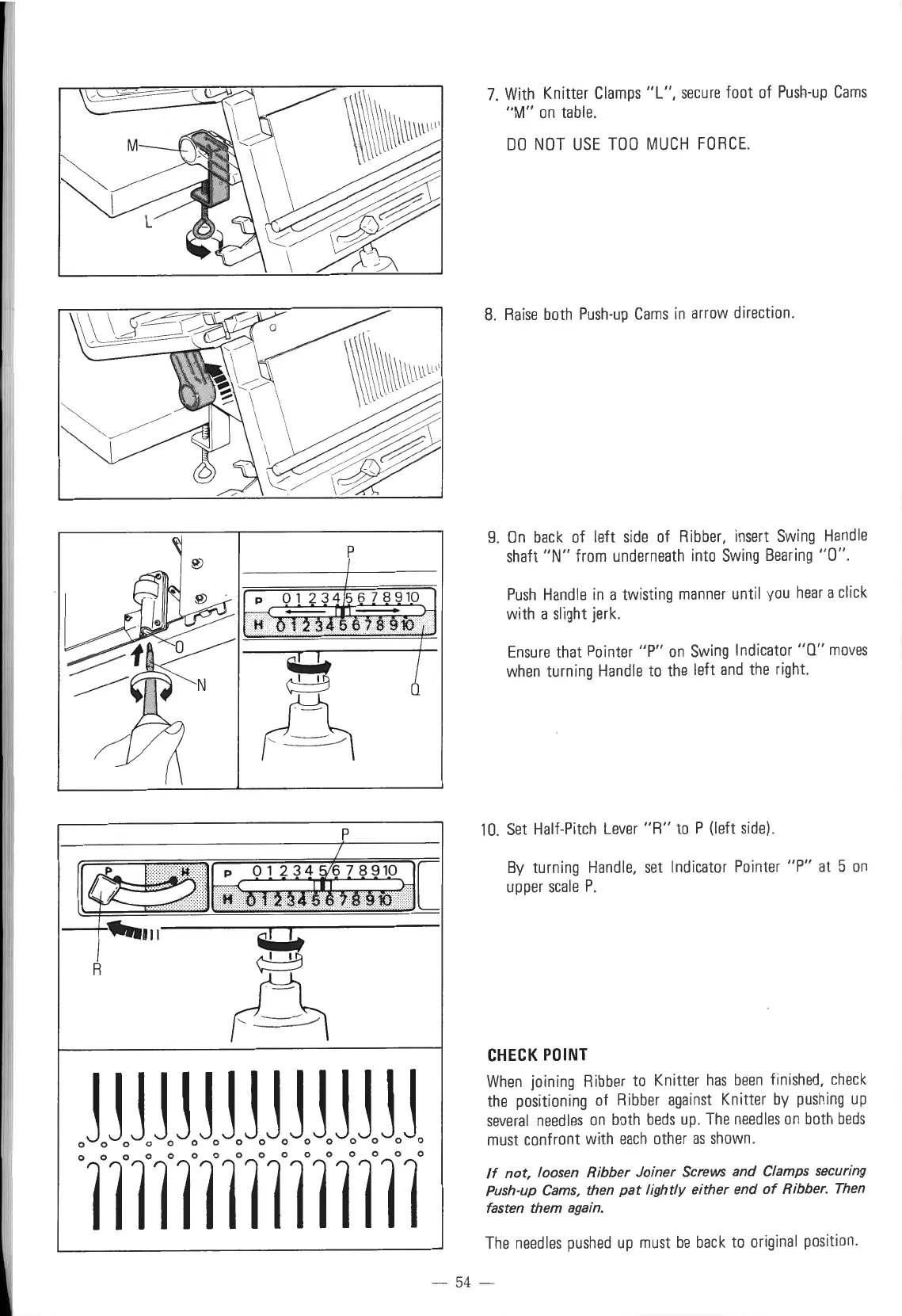

7. With Knitter Clamps "L", secure foot of Push -up Cam s
"M" on table.
DO NOT USE TOO MUCH FORCE.
8. Raise both Push-up Cams in arrow direction.
9. On back of left side of Ribber, insert Swing H andle
shaft "N" from underneath into Swing Bearing "0".
Push Handle in a twisting manner until you hear a click
with a slight jerk.
Ensure that Pointer "P" on Swing Indicator "Q" moves
when turning Handle to the left and the right.
10. Set Half-Pitch Lever "R" to P (left side).
By turning Handle, set Indicator Pointer "P" at 5 on
upper scale P.
CHECK POINT
When joining Ribber to Knitter has been finished, check
the positioning of Ribber against Knitter by pushing up
several needles on both beds up . The needles on both beds
must confront with each other as shown.
If not, loosen Ribber Joiner Screws and Clamps securing
Push-up Cams, then
pat lightly either end of Ribber. Then
fasten them again.
The needles pushed up must be back to original position.
