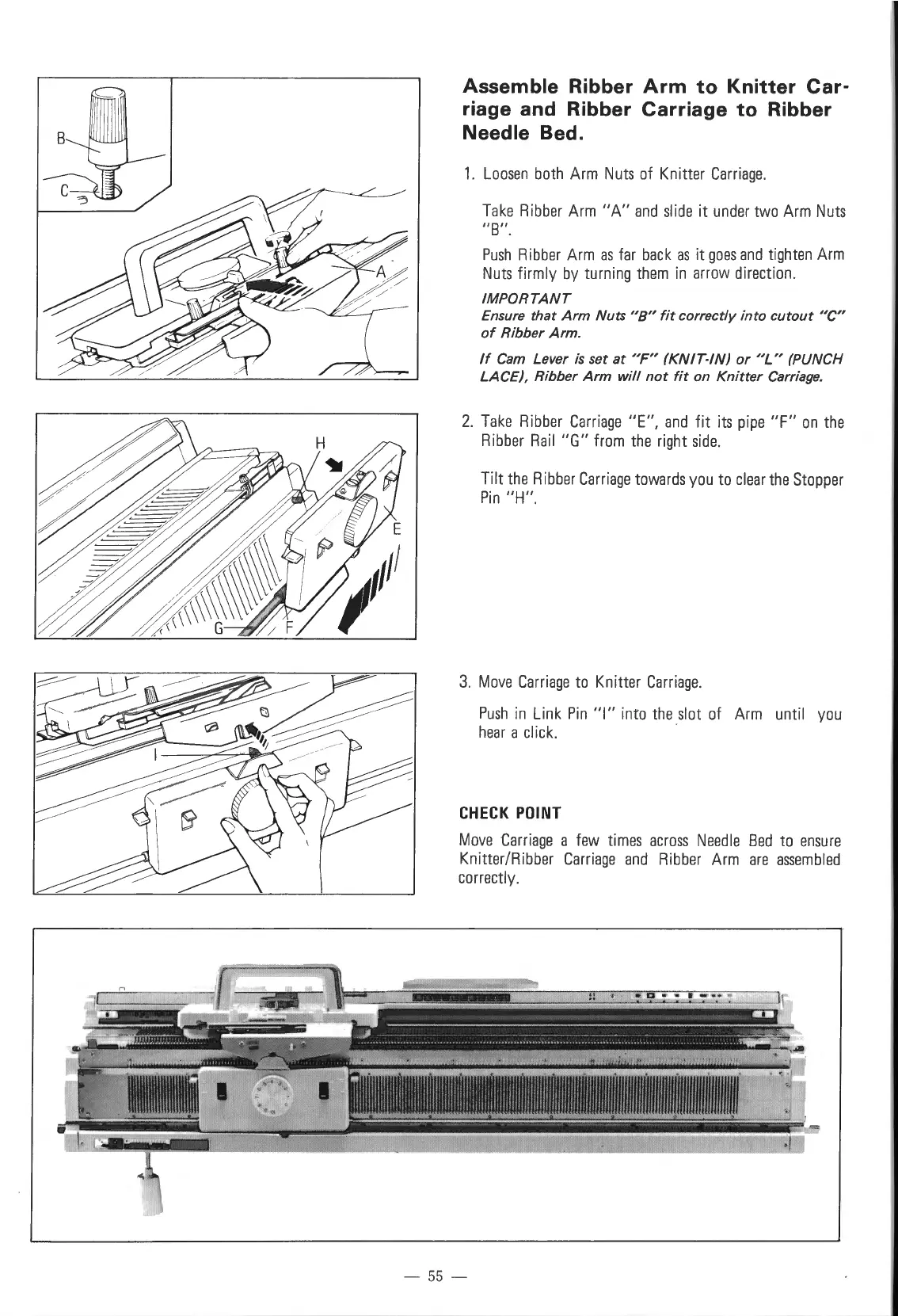

Assemble Ribber Arm to Knitter Car·
riage and Ribber Carriage to Ribber
Needle Bed.
1. Loosen both Arm Nuts of Knitter Carriage.
Take Ribber Arm "A" and slide it under two Arm Nuts
"B".
Push Ribber Arm as far back as it goes and tighten Arm
Nuts firmly by turning them in arro w direction.
IMPORTANT
Ensure that Arm Nuts "8" fit correctly into cutout "C"
of Ribber Arm.
If Cam Lever is set at "F" (KNIT-IN) or "L" (PUNCH
LACE), Ribber Arm will not fit on Knitter Carriage.
2. Take Ribber Carriage "E", and fit its pipe "F" on the
Ribber Rail "G" from the right side.
Tilt the Ribber Carriage towards you to clear the Stopper
Pin "H" .
3. Move Carriage to Knitter Carriage .
Push in Link Pin ''I" into the slot of Arm until you
hear a click .
CHECK POINT
Move Carriage a few times across Needle Bed to ensure
Knitter/Ribber Carriage and Ribber Arm are assembled
correctly.
- 55 -
