Singer 560 - Page 88

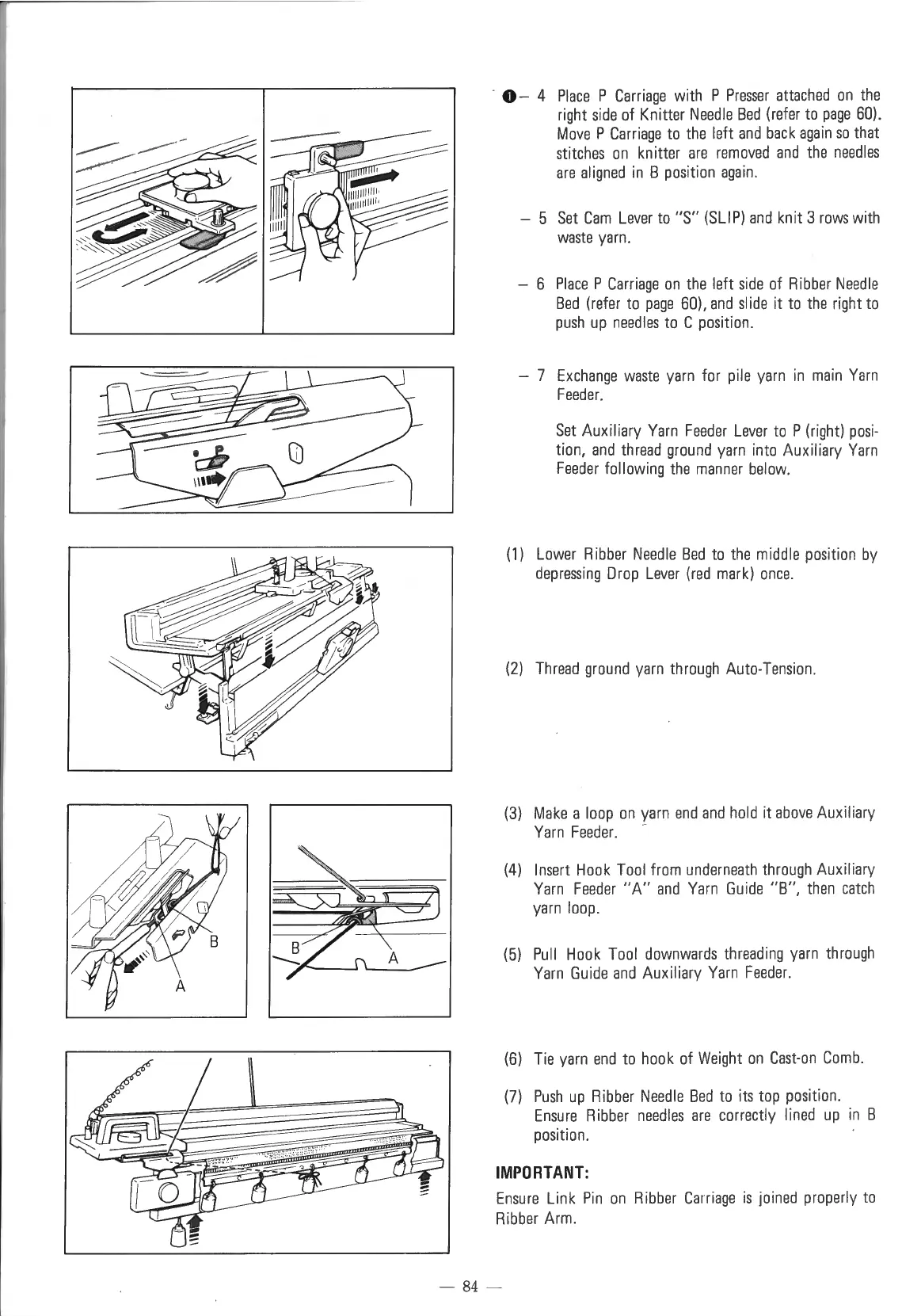

0- 4 Place P Carriage with P Presser attached on the
right side of Knitter Needle Bed (refer to page 60).
Move P Carriage to the left and back again so that
stitches on knitter are removed and the needles
are aligned in B position again.
- 5 Set Cam Lever to "S" (SLIP) and knit 3 rows with
waste yarn.
- 6 Place P Carriage on the left side of Ribber Needle
Bed (refer to page 60), and slide it to the right to
push up needles to C position.
- 7
Exchange waste yarn for pile yarn in main Yarn
Feeder .
Set Auxiliary Yarn Feeder Lever to P (right) posi -
tion, and thread ground yarn into Auxiliary Yarn
Feeder following the manner below.
(1) Lower Ribber Needle Bed to the middle position by
depressing Drop Lever (red mark) once .
(2) Thread ground yarn through Auto-Tension.
(3) Make a loop on yarn end and hold it above Au xiliary
Yarn Feeder .
(4) Insert Hook Tool from underneath through Auxiliary
Yarn Feeder "A" and Yarn Guide "B", then catch
yarn loop .
(5) Pull Hook Tool downwards threading yarn through
Yarn Guide and Auxiliary Yarn Feeder.
(6) Tie yarn end to hook of Weight on Cast-on Comb .
(7) Push up Ribber Needle Bed to its top position.
Ensure Ribber needles are correctly lined up in B
position.
IMPORTANT:
Ensure Link Pin on Ribber Carriage is joined properly to
Ribber Arm.
- 84 -
