Singer 560 - Double Jacquard Knitting

A

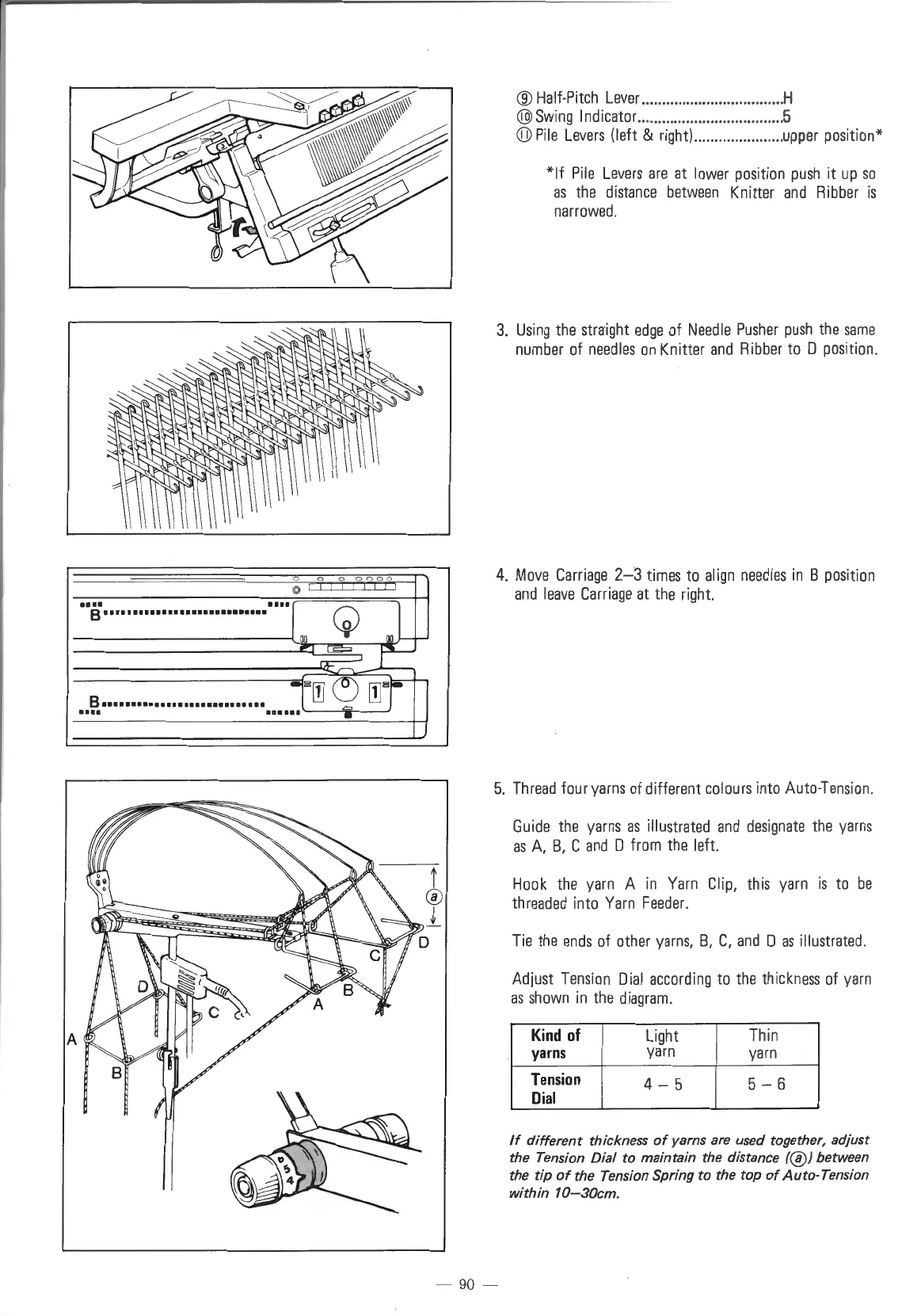

® Half-Pitch Lever ................................... H
@
Swing I ndicator ................. ...... ............. 5
@
Pile Levers (left & right) .... .... ...... . .... . .. upper position *
*If Pile Levers are at lower position push it up so
as the distance between Knitter and Ribber is
narrowed.
3. Using the straight edge of Needle Pusher push the same
number of needles on Knitter and Ribber to 0 position.
0
0 0
0000
4. Move Carriage 2-3 times to align needles in B position
and leave Carriage at the right.
@
•••• • •••
Q
E~····························
I DO
~
s............................ l:;;III ~
••••
• •• Ill
•
OOL~
L
[]Br
f-
5. Thread four yarns of different colours into Auto-Tension.
Guide the yarns as illustrated and designate the yarns
as A, B, C and 0 from the left.
t Hook the yarn A in Yarn Clip, this yarn is to be
@ threaded into Yarn Feeder.
1
- 90 -
Tie the ends of other yarns, B, C, and 0 as illustrated.
Adjust Tension Dial according to the thickness of yarn
as shown in the diagram .
Kind of
yarns
Tension
Dial
Light
yarn
4-5
Thin
yarn
5-6
If different thickness of yarns are used together, adjust
the Tension
Dial to maintain the distance (@) between
the tip
of the Tension Spring to the top of Auto-Tension
within 10-30cm.
