SKOPE BME-N ActiveCore
Replacement Procedures
Service Manual
Replacing the
Gasket
The one-piece door gasket clips into the door frame and runs around the perimeter of the door.
Remove the gasket by peeling it from the door frame, starting at a corner.
If the gasket is out of shape after refitting, use a hair dryer to heat and reshape it.
Removing and
Refitting the
Door
For ease of servicing and to reverse the hinging (hinge reversal on one-door cabinets only),
the door can be removed from the cabinet. Refer to image below for door hinging components.

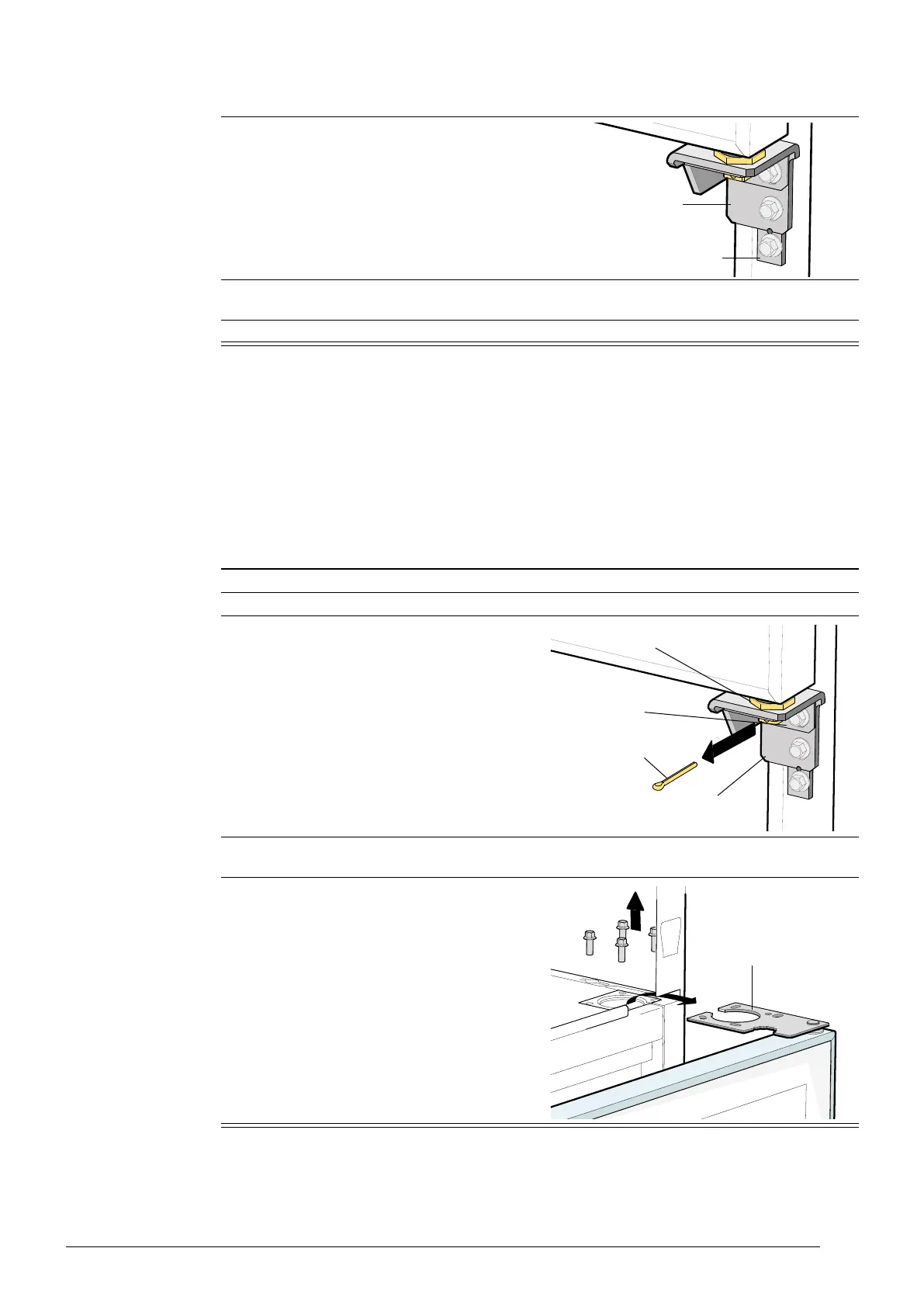

3. Loosen the bottom hinge, and remove the
height adjustment block.
4. Set the door to the correct height, rotate and refit the height adjustment block to the most
appropriate setting and tighten up the bottom hinge screws.
5. Refit the kick panel.
Procedure 18: To adjust the door height (continued)
Bottom hinge
Height adjustment block
Procedure 19: To remove the door
1. Disconnect the cabinet from the mains power supply (see page 22).
2. If present, remove the sign panel and kick panel.
3. Remove the split pin from the capstan at the
bottom hinge.
4. Undo the top bolt from the hinge, and carefully remove the tension bracket. Warning: Take care of
the capstan, which will spin as tension is relieved.
5. Unscrew the top hinge, and lift the door up and
off the cabinet.
Split pin
Bottom hinge
Capstan
Tension
bracket
Top hinge
