SKOPE BME-N ActiveCore
Replacement Procedures
Service Manual

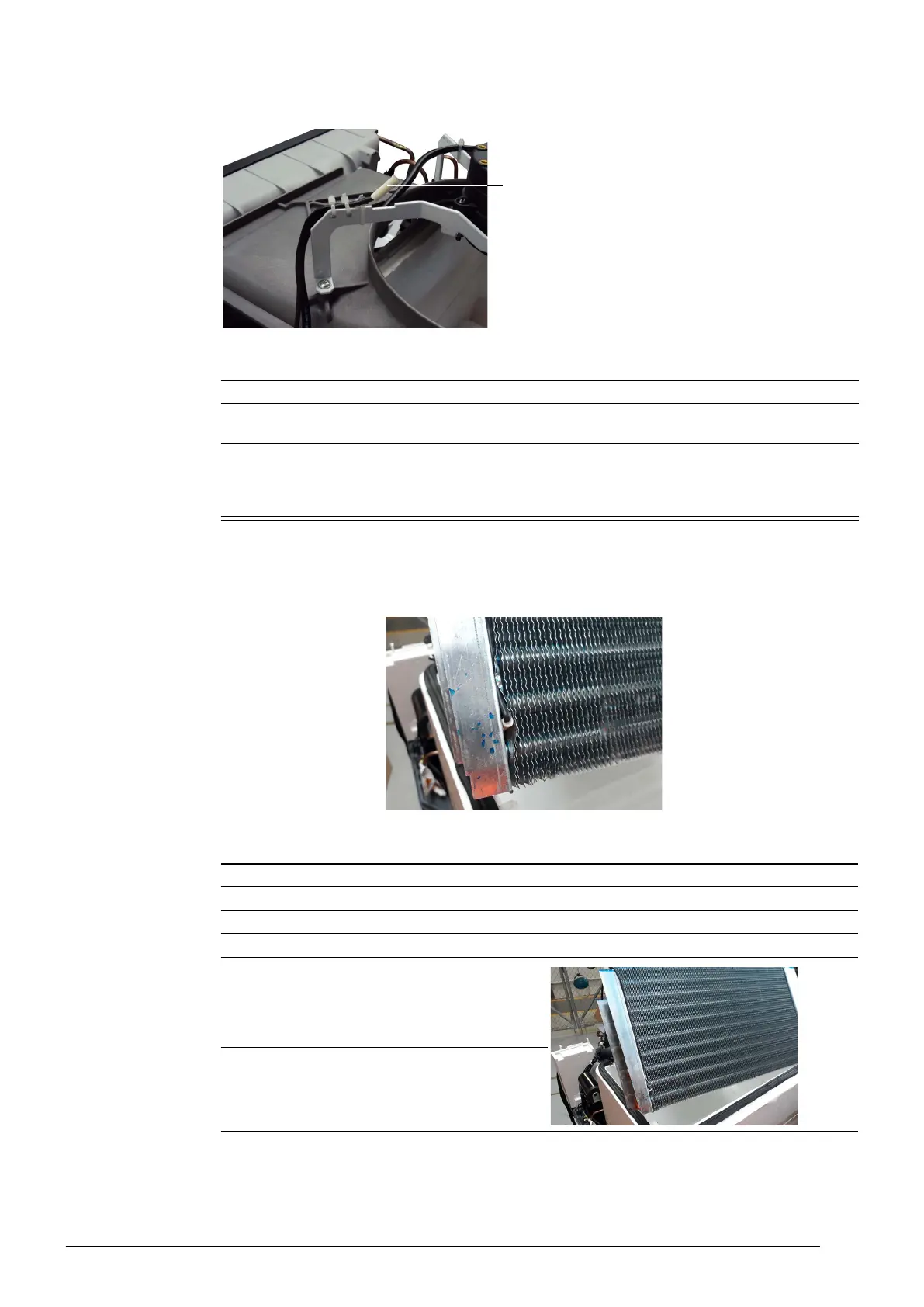

Control Probe The control probe is cable-tied to a bracket on the evaporator fan motor bracket.
Evaporator
Probe
The evaporator probe is located within the evaporator coil. It controls the refrigeration system
defrost initiation and termination.
Control probe
Procedure 38: To replace the control probe
1. Remove the evaporator fan assembly (see page 36).
2. Detach the probe from the evaporator fan shroud bracket and trace the probe cable back to the
cartridge electrics box and unplug (see page 33).
3. Following the same path as the original probe, fit the new probe with cable ties as necessary.
Ensure the probe cable is securely plugged into the rear of the cartridge junction box, and that it is
cable-tied to the evaporator fan shroud bracket, with the probe bent away from the fan bracket at
a 45° angle.
Procedure 39: To replace the evaporator probe
1. Disconnect the cabinet from the mains power supply (see page 22).
2. Remove the refrigeration cartridge.
3. Remove the cartridge cover (see page 34).
4. Remove the evaporator fan assembly (see page 36).
5. Remove both pieces of putty securing the pipes
and cables on the evaporator tub edge.
6. Carefully lift the coil up and out of the
evaporator tub. Take care of pipes and cables
when lifting out.
