SKOPE BME-N ActiveCore
Spare Parts
Service Manual
7 Spare Parts

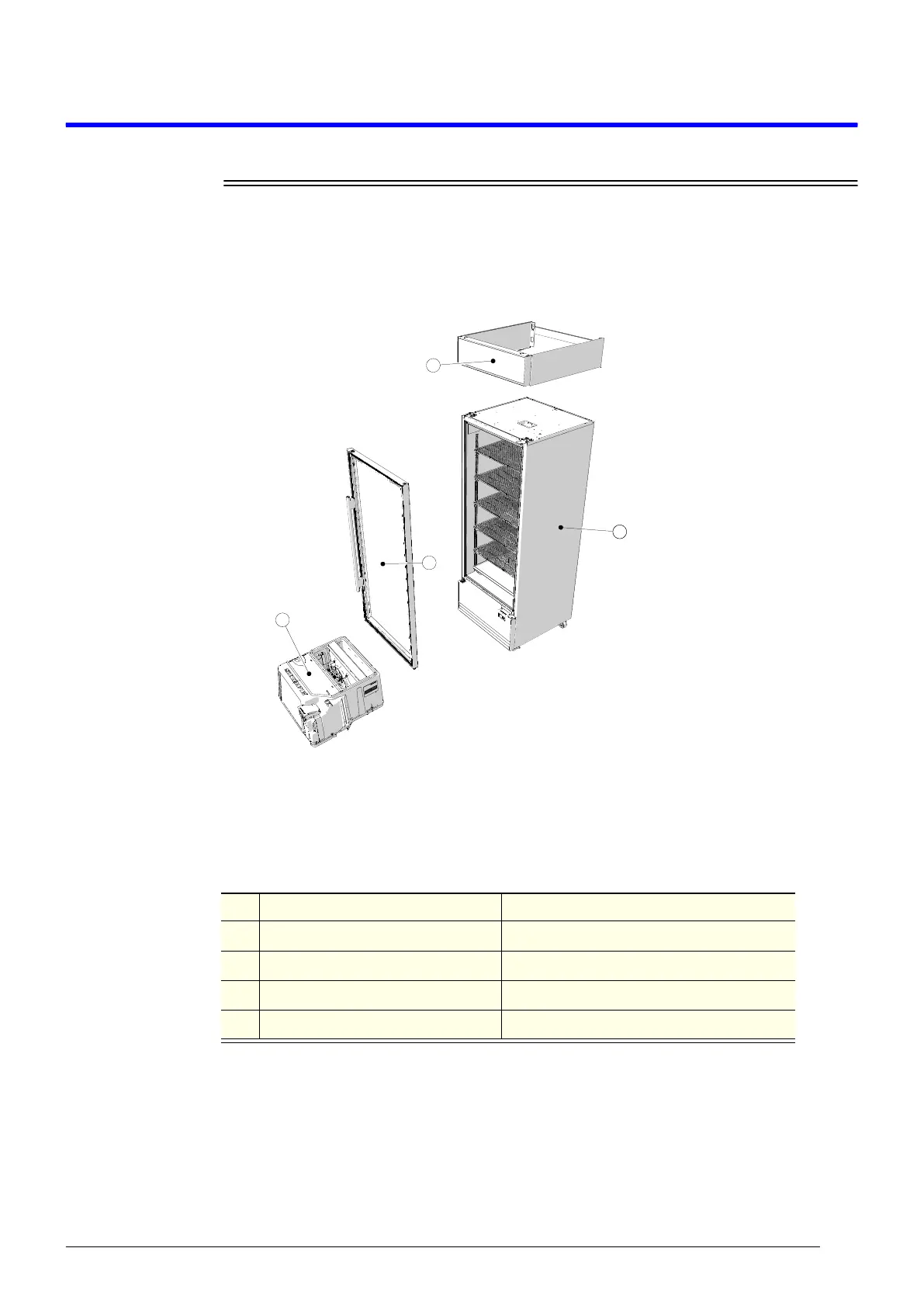

Main Assembly – BME600N-A Series
1
4
2
3
Table 10: Parts – Main assembly: BME600N-A series
No. Description Page
1
Cabinet assembly Page 45
2
Door assembly Page 49
3
Sign assembly Page 50
4
Cartridge assembly
Page 51
