SKOPE BME-N ActiveCore
Spare Parts
Service Manual

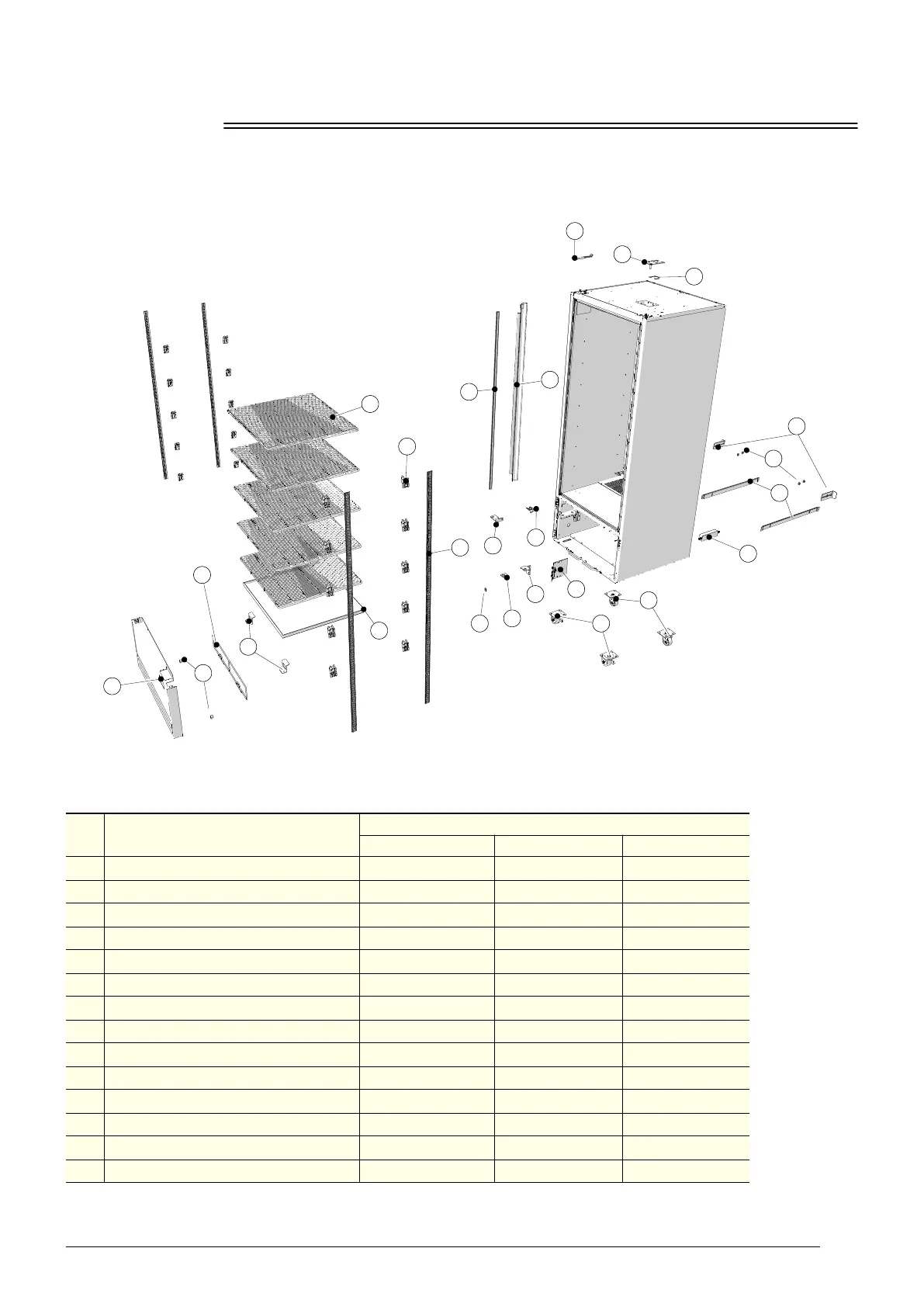

Cabinet Assembly – BME600N-A Series
9
12
13
16
14
15
10
6
8
11
7
22
17
18
25
23
24
20
19
21
3
5
4
1
2
Table 12: Parts – Cabinet assembly: BME600N-A series
No.
Description SKOPE Part No.
Unpainted/standard Colour: White Colour: Black
1 Shelf clip HB0070205867
2 Shelf support strip HB0070110331
3 Bottom Shelf Solid HB0070109270
4 Wire shelf HB0070109245
5 Kick panel HB0070833176B HB0070833176C
6 Kick panel stop HB0070203535
7 Rear stopper HB0070110666
8 Rear stopper bush HB0070110592
9 Door sensor bracket HB0070110662
10 Bottom hinge – right hand HB0070110578
11 Bottom hinge – left hand (hinge reversal kit) SM60BYN/D100-32 SM60BYN/D100-49
12 Tension bracket HB0070110580
13 Vertical lock nut HB0070110581
14 Top hinge – right hand HB0070110582
