Skope ActiveCore BME-N Series - Evaporator Fan

36
Replacement Procedures
Service Manual
SKOPE BME-N ActiveCore
Evaporator
Fan
The evaporator fan assembly is made up of a fan motor and fan blade, both of which can be
replaced when necessary. The evaporator fan flexible cord has a white plug.
If the fan stops for any reason, check all connections to ensure no plugs have come loose.
Refer to the label on the electrics box cover to identify the evaporator fan plug and socket in
the electrics box.
The fan motor and fan blade are fixed to the evaporator shroud via the brackets. The shroud
(complete with fan motor and fan blade) can be lifted off the evaporator tub once the
refrigeration cartridge cover has been removed.
It is important that the fan blade and/or fan motor is replaced with the same part to ensure
safety, correct alignment and refrigeration performance, and compliance. Tighten fan blades
to the fan motor manufacturer’s recommended torque settings (shown in the table below).
4. Fit the new motor and reattach the fan blade with a 12 mm flat washer and serrated head screw.
Tighten the blade to 1.5Nm.
5. Reassemble the cartridge, ensuring all cables are neatly cable-tied away from the fan blade.
6. Test for correct operation.
Procedure 30: To replace the condenser fan motor (continued)
IMPORTANT
Replace the motor with the same SKOPE OEM part.
DO NOT use alternative parts.
Table 9: Fan motor manufacturer recommended torque settings
Fan motor manufacturer Torque setting
Wellington Drive 1.5 N m

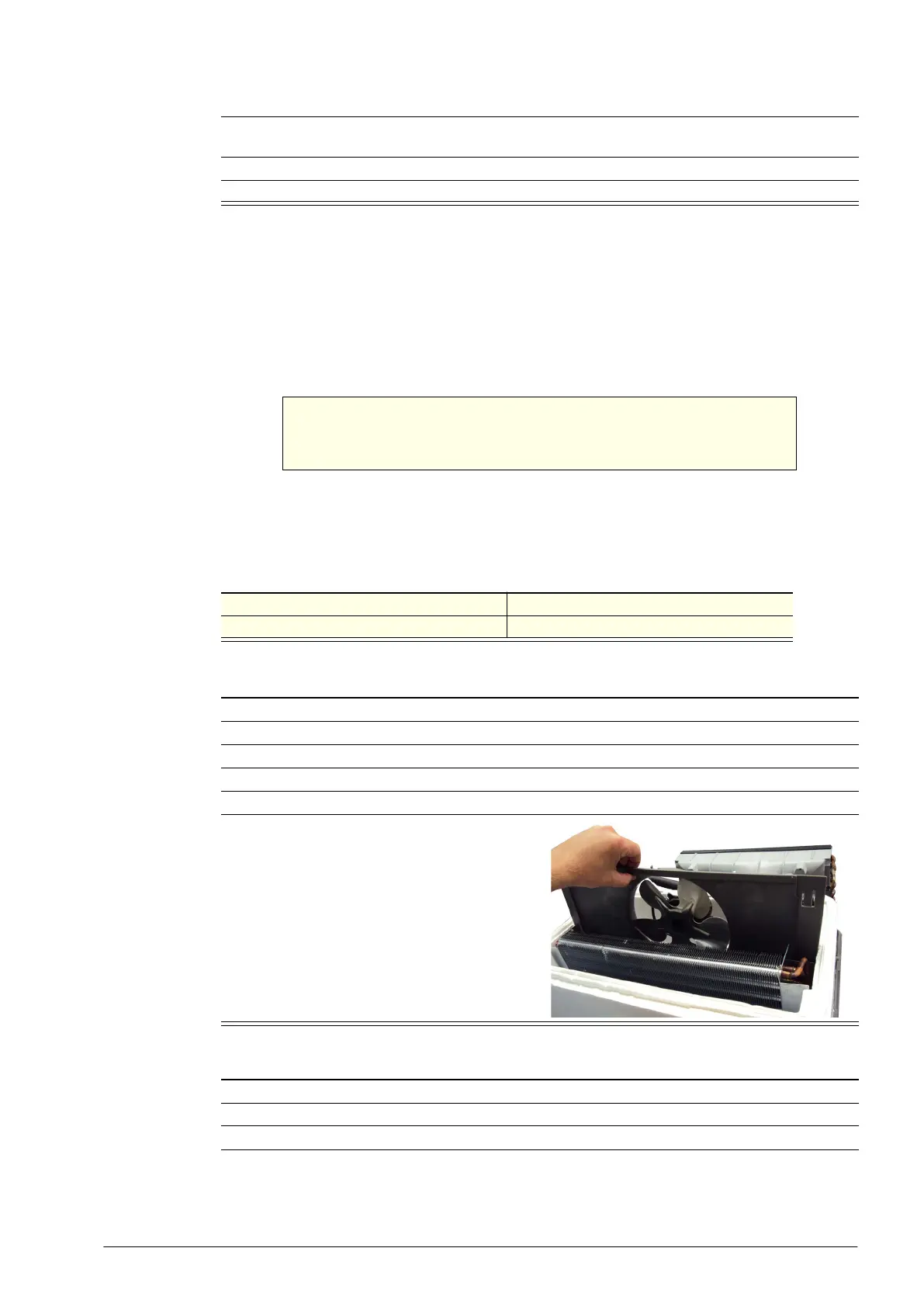

Procedure 31: To access the evaporator fan assembly
1. Disconnect the cabinet from the mains power supply (see page 22).
2. Remove the refrigeration cartridge (see page 31).
3. Remove the refrigeration cartridge cover.
4. Free the cables from the putty on the evaporator tub edge.
5. Cut the cable ties to release the control probe from the fan bracket.
6. Lift the assembly up and out of the evaporator
box.
Procedure 32: To replace the evaporator fan blade
1. Disconnect the cabinet from the mains power supply (see page 22).
2. Remove the refrigeration cartridge (see Procedure 25, on page 31).
3. Gain access to the evaporator fan assembly (see Procedure 31).
