Skope ActiveCore BME-N Series - Condenser Fan

35
SKOPE BME-N ActiveCore
Replacement Procedures
Service Manual
Condenser
Fan
The condenser fan assembly is made up of a fan motor, fan blade and mounting brackets
which can be replaced if necessary.
If the fan stops for any reason, check all connections to ensure no plugs have come loose.
Refer to the label on the electrics box cover to identify the condenser fan plug and socket in
the electrics box.
It is important that the fan blade and/or fan motor is replaced with the same part to ensure
safety, correct alignment and refrigeration performance, and compliance. Tighten fan blades
to the fan motor manufacturer’s recommended torque settings (shown in the table below).
IMPORTANT
Replace the motor with the same SKOPE OEM part.
DO NOT use alternative parts.
Table 8: Fan motor manufacturer recommended torque settings
Fan motor manufacturer Torque setting
Wellington Drive 1.5 Nm
Procedure 28: To access and remove the condenser fan assembly
1. Disconnect the cabinet from the mains power supply (see page 22).
2. Remove the refrigeration cartridge (see page 31).
3. Remove the cartridge cover (see page 34).
4. Open the electrics box and unplug the condenser fan motor plug (see page 33).

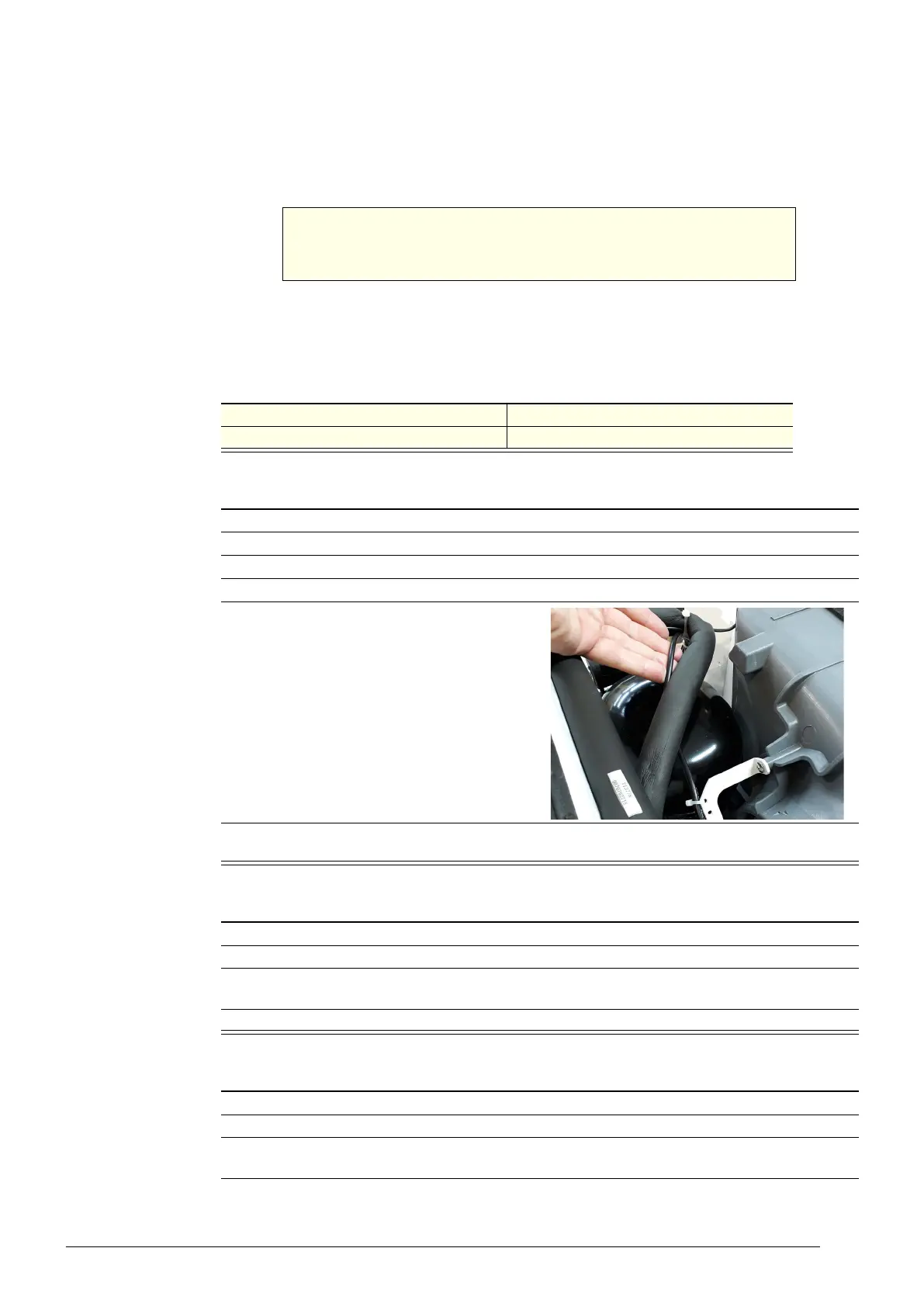

5. Cut the cable ties holding the cables along the
cartridge, and free up the condenser fan motor
cable.
6. Remove the fan assembly (fan motor, fan blade, mounting brackets) from the cartridge by lifting
the shroud up and out.
Procedure 29: To replace the condenser fan blade
1. Remove the condenser fan assembly (see Procedure 28).
2. Remove the screw and washer from the centre of the fan blade, and lift the blade from the motor.
3. Replace the new blade and fix with a 12 mm flat washer and serrated head screw. Tighten the
blade to fan motor manufacturer recommended torque setting.
4. Reassemble the cartridge and test.
Procedure 30: To replace the condenser fan motor
1. Remove the condenser fan assembly (see Procedure 28) and the fan blade (see Procedure 29).
2. Unplug the fan flexible cord from the electrics box (see page 33).
3. Detach the fan motor from the fan mounting brackets by removing the four screws from the
mounting bracket.
