Installation
Service Manual
SKOPE BME-N ActiveCore
3 Installation

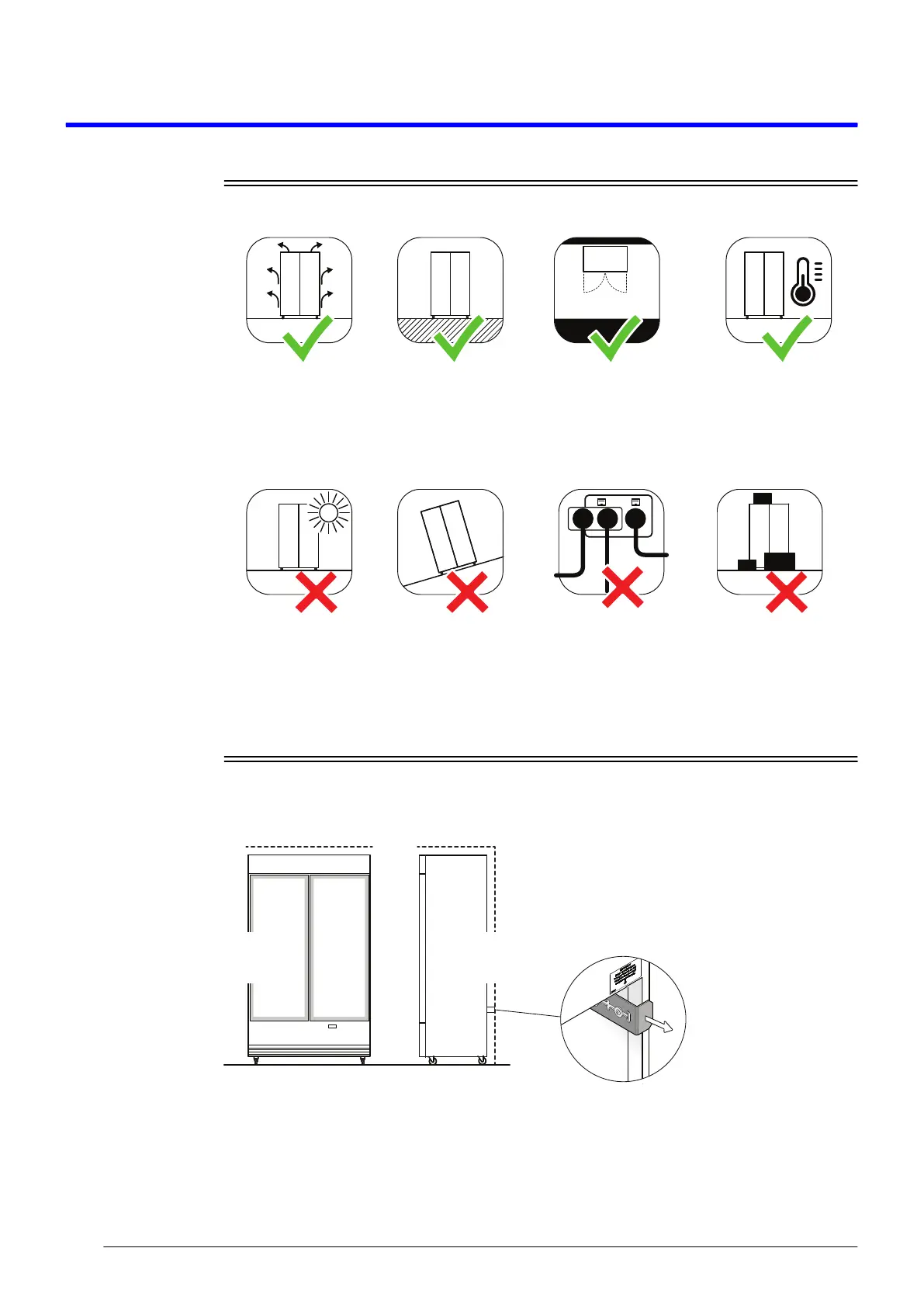

Installation Guidelines
When installing this cabinet, ensure the installation guidelines below are considered and met.
Ventilation Requirements
This cabinet must have the following ventilation clearances at all times.
Ventilation
Ensure all ventilation
requirements below are
met.
Door Opening
Allow adequate space for
the door/s to open and
close properly.
Sunlight
Do not install the cabinet
in direct sunlight.
Uneven Surface
Do not install the cabinet
on an uneven surface.
Surface
The installation surface
must be capable of
supporting the loaded
cabinet.
Power Supply
Do not overload the power
supply.
Blocking Ventilation
Do not store boxes or items in
front or on top of the cabinet.
Climate Class
The cabinet must be installed
in an environment within its
climate class.
The climate class is stated on
the cabinet rating label inside
the fridge.
Min. 50 mm above
Min.
50 mm
below
No side
clearance
required
Min. 50 mm
behind (provided
by rear spacer)
BME and SKB Rear Spacer
Extend the two rear spacers
out, ensuring they are
locked into place.
