SKOPE BME-N ActiveCore
Replacement Procedures
Service Manual
Replacing the
Torsion Bar
When the door tension can no longer be adjusted, replace the torsion bar.
Hinge
Reversal
Single glass door standard (non-tropical) cabinets only. The cabinet is supplied with the door
hinged on the right hand side. If required, the hinge can be swapped to the left hand side.
Some spare parts are required to complete the procedure, and are available in the Left Hand
Hinge Reversal Kit (see page 45 for part kit numbers).
Procedure 23: To replace the torsion bar
1. Remove the door from the cabinet (see Procedure 19, on page 25).

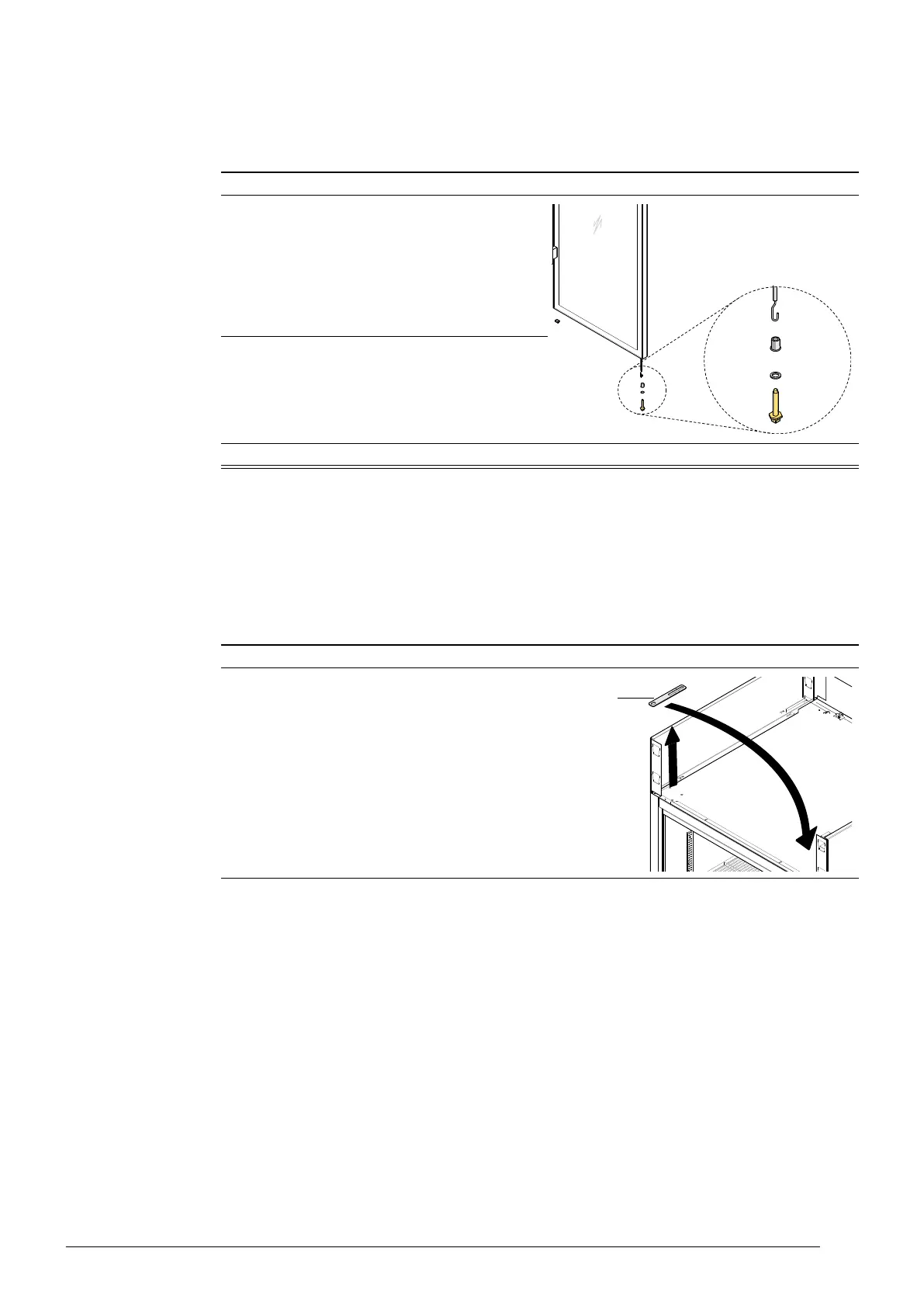

2. Lever the capstan, bush and bush washer from
the bottom of the door, and unhook from the
torsion bar.
Note: The torsion bar cannot easily be removed
from the door. Push it into the door frame.
3. Fit the capstan, bush and bush washer to the
new torsion bar, and fit this assembly into the
bottom of the door.
4. Refit the door (see Procedure 20, on page 26).
Procedure 24: To reverse the door hinging
1. Remove the door from the cabinet (see Procedure 19, on page 25).
2. Remove the door lock bracket from the top of
the cabinet and fit to the other side.
Door lock
bracket
