Spare Parts
Service Manual
SKOPE BME-N ActiveCore
Lit Sign Assembly
1
3
2
3
4
5
6

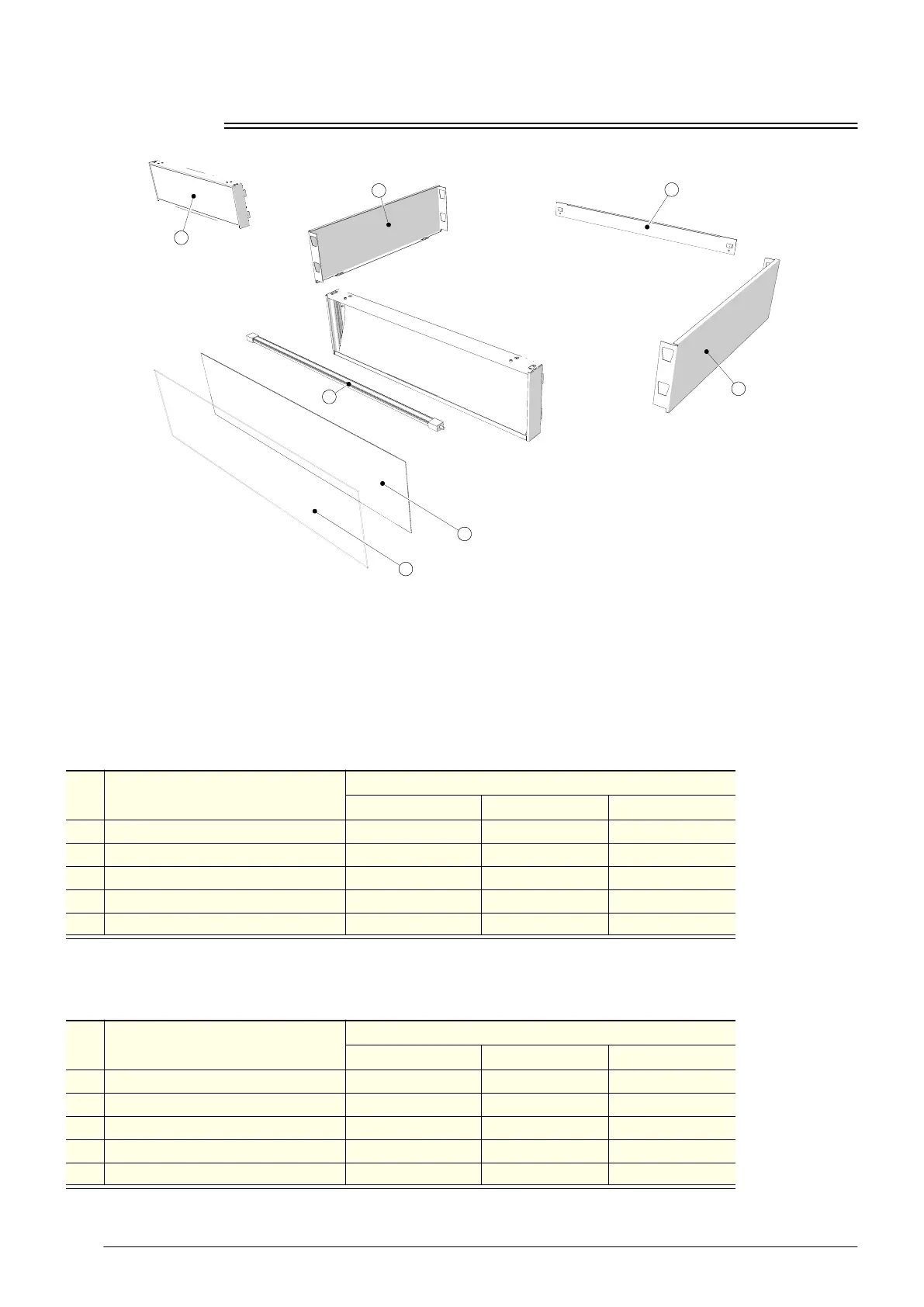

Table 15: Parts – Lit sign assembly: BME600N-AC
No. Description SKOPE Part No.
Unpainted/standard Colour: White Colour: Black
1 Lit sign assembly – MB60BYN/T61-32/00 MB60BYN/T61-49/00
2 Sign back strip – HB0070105692P HB0070105692Q
3 Sign side – SM12BV/S20-32 SM12BV/S20-49
4 Sign light bar ELL11772 – –
5 Sign panel (transparent) (lit sign) SM60BV/S17 – –
Table 16: Parts – Lit sign assembly: BME1200N-AC
No. Description SKOPE Part No.
Unpainted/standard Colour: White Colour: Black
1 Lit sign assembly – MB12BYN/T61-32/00 MB12BYN/T61-49/00
2 Sign back strip – HB0070108524P HB0070108524R
3 Sign side – SM12BV/S20-32 SM12BV/S20-49
4 Sign light bar ELL11800 – –
5 Sign panel (transparent) (lit sign) SM12BV/S17 – –
