Replacement Procedures
Service Manual
SKOPE BME-N ActiveCore
3. Remove the bottom hinge, tension bracket and
height adjustment block. Retain the tension
bracket and height adjustment block (these are
fitted to the opposite side once the door is
refitted). You can discard the bottom hinge.
4. Unplug the door switch cable from the cabinet.
The door switch bracket is fitted to the door
switch bracket, below the door.
5. Fit the new bottom hinge.
Note: The topmost screw can be left off until
the tension bracket is fitted, later on in the
procedure.
6. Remove the door lock bracket, and fit to the
opposite end of the door.
7. Remove the bush and keep for the opposite
end of the door.
8. Remove the capstan, bush, and bush washer,
and unhook from the torsion bar.
Note: The torsion bar cannot easily be
removed from the door. Push the torsion bar
into the door frame.
9. Fit the capstan, bush and bush washer to the
new torsion bar, and fit this assembly to the
opposite end of the door.
10. Fit the bush (retained from step 7) to the end of
the door, opposite the capstan.
11. Remove the door switch magnet from the end
of the door, and fit to the opposite end.
Note: Ensure the magnet is orientated
correctly and does not protrude past the frame
edge.
12. Refit the door (see page 25).
13. Apply the SKOPE logo label to the top left
hand corner of the door. Use the label backing
to align the label as pictured.
14. Apply the blanking labels over the upside down
logos at the bottom of the door.

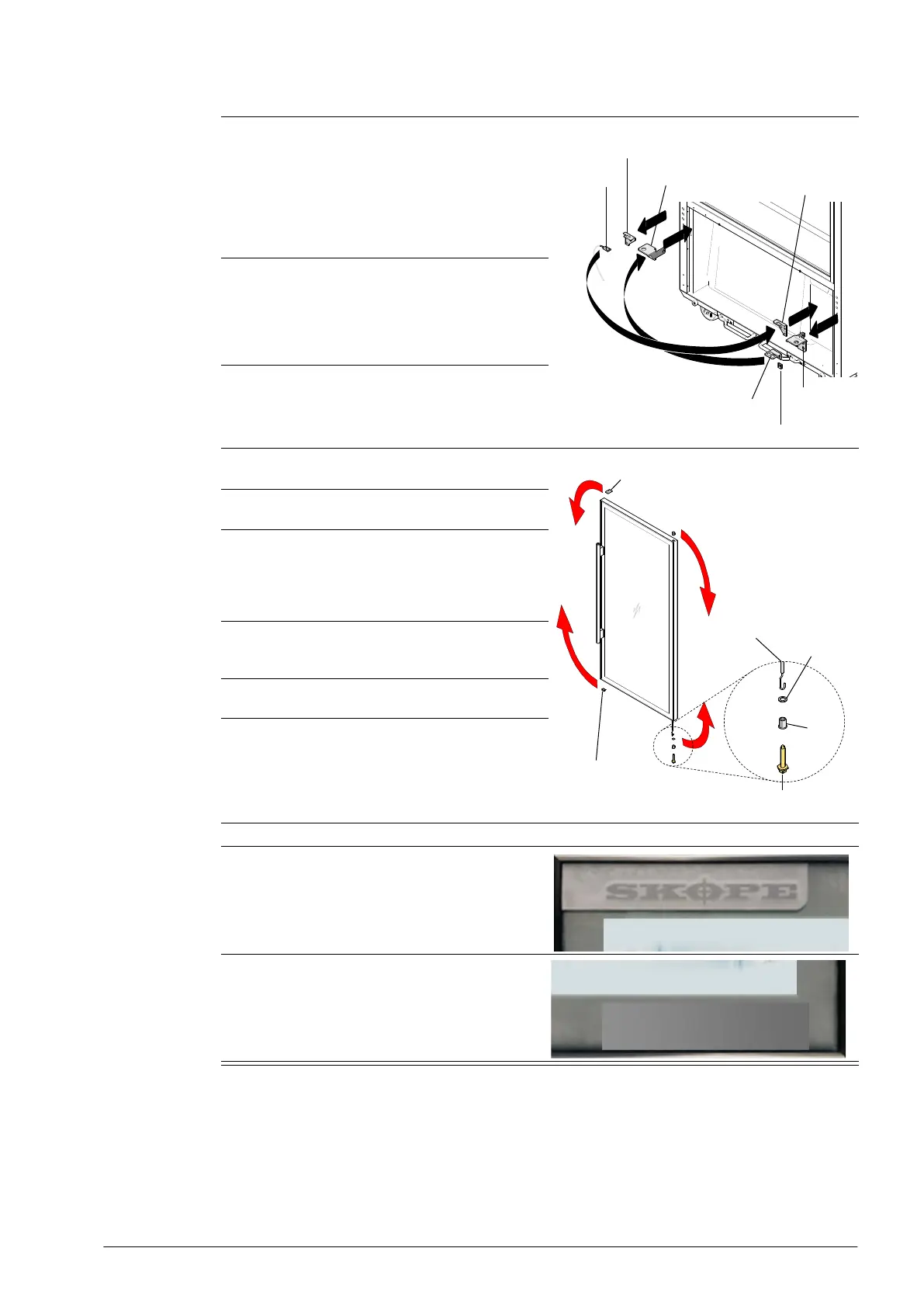

Procedure 24: To reverse the door hinging (continued)
Tension bracket
Door switch
Old door switch
bracket
New bottom hinge
Old bottom
hinge
New door
switch bracket
Height adjustment block
Torsion bar
Bush
washer
Capstan
Bush
Door lock bracket
Door switch
magnet
