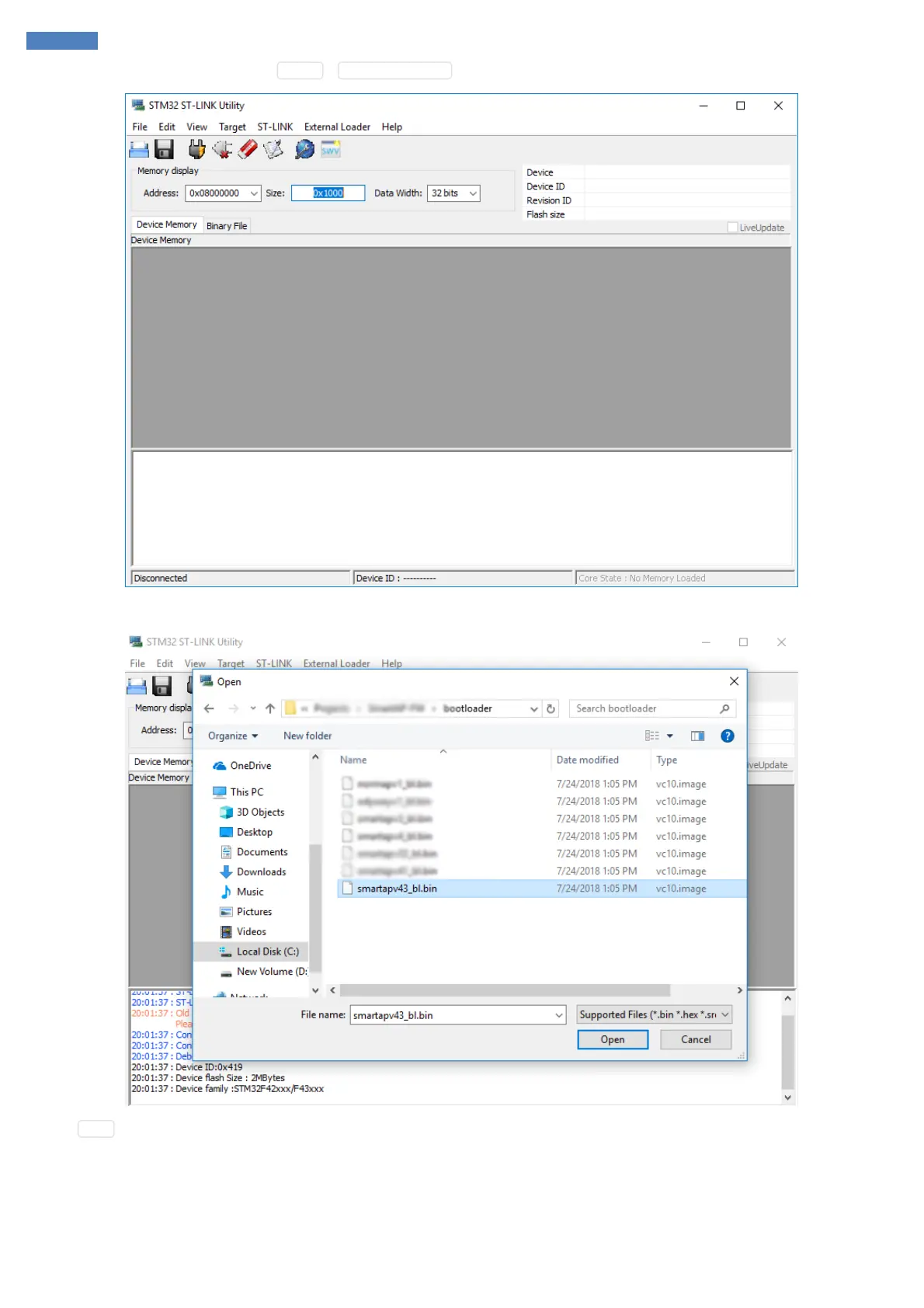

Open STM ST Link Utility and then go to Target > Program and Verify :

Select the bootloader file to flash:

Press Start

SmartAP AutoPilot User’s Guide Flashing Bootloader

Sky-Drones - SmartAP Flight Control Systems 118 / 151
