Plastic case version

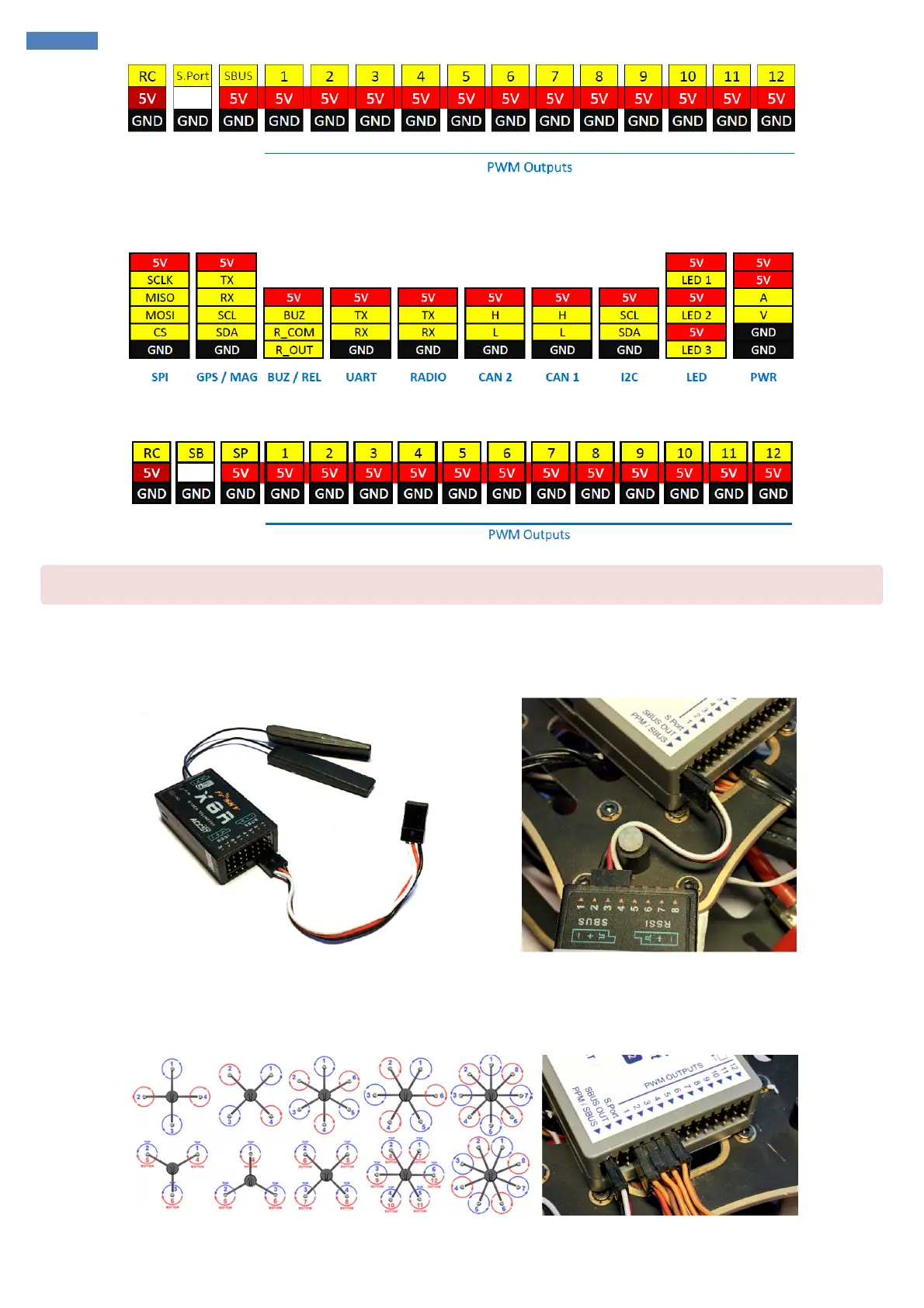

Front panel connectors pinout:
Rear panel connectors pinout:
Make sure NOT to mix up polarity. GND line (black) is always near edge (bottom)
RC Receiver
Connect PPM / SBUS output of the RC receiver to PPM / SBUS Input port of SmartAP.
ESC / Motors PWM
Connect ESC cables to SmartAP PWM outputs 1-12 depending on the number of the motors your airframe has. The first motor is always front or
front-right, it’s spinning direction is CCW. Supported airframe types and motors number / spinning direction are shown below.
