By default, 8 dBi antennas comes with the set. Depending on your specific applications you might use different antennas designed for 2.4 GHz
band.

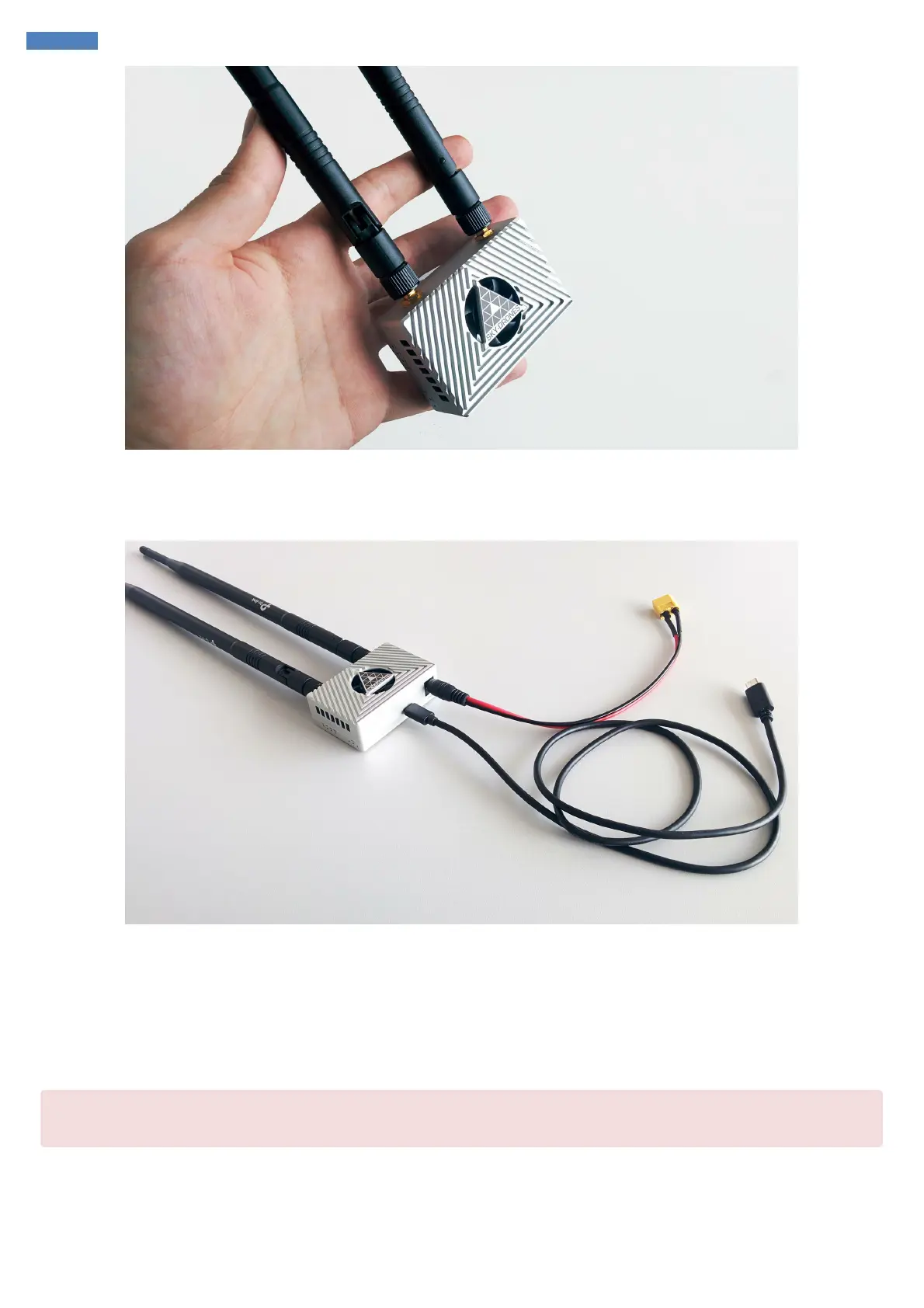

Connect micro USB cable and power cable to the ground module as shown on the image:
Power supply
Ground module supports any power supply source with the voltage in range from 10V to 50V. We recommend to use 3S or 4S LiPo battery to
power the ground module. Typical current for 3S battery is around 1A at maximum power output.
Air module is 5V tolerant only. Peak current can be up to 3A, therefore, make sure to provide powerful, stable and reliable power supply to air
module. We highly recommend to use SmartAP PDB 5V output port to power SmartLink. SmartAP PDB has 5V at 5A max power output which is
enough for SmartLink.
AIR MODULE IS 5V ONLY TOLERANT. POWERING THE MODULE WITH HIGHER VOLTAGE MAY CAUSE PERMANENT DAMAGE TO
THE SYSTEM. HIGHLY RECOMMENDED TO POWER FROM SMARTAP PDB 5V OUTPUT.
