Ground module
Air module
Pair of antennas for air module
Pair of antennas for ground module
Power cable for ground module
Power cable for air module
Telemetry cable for the autopilot
Preparing Air module

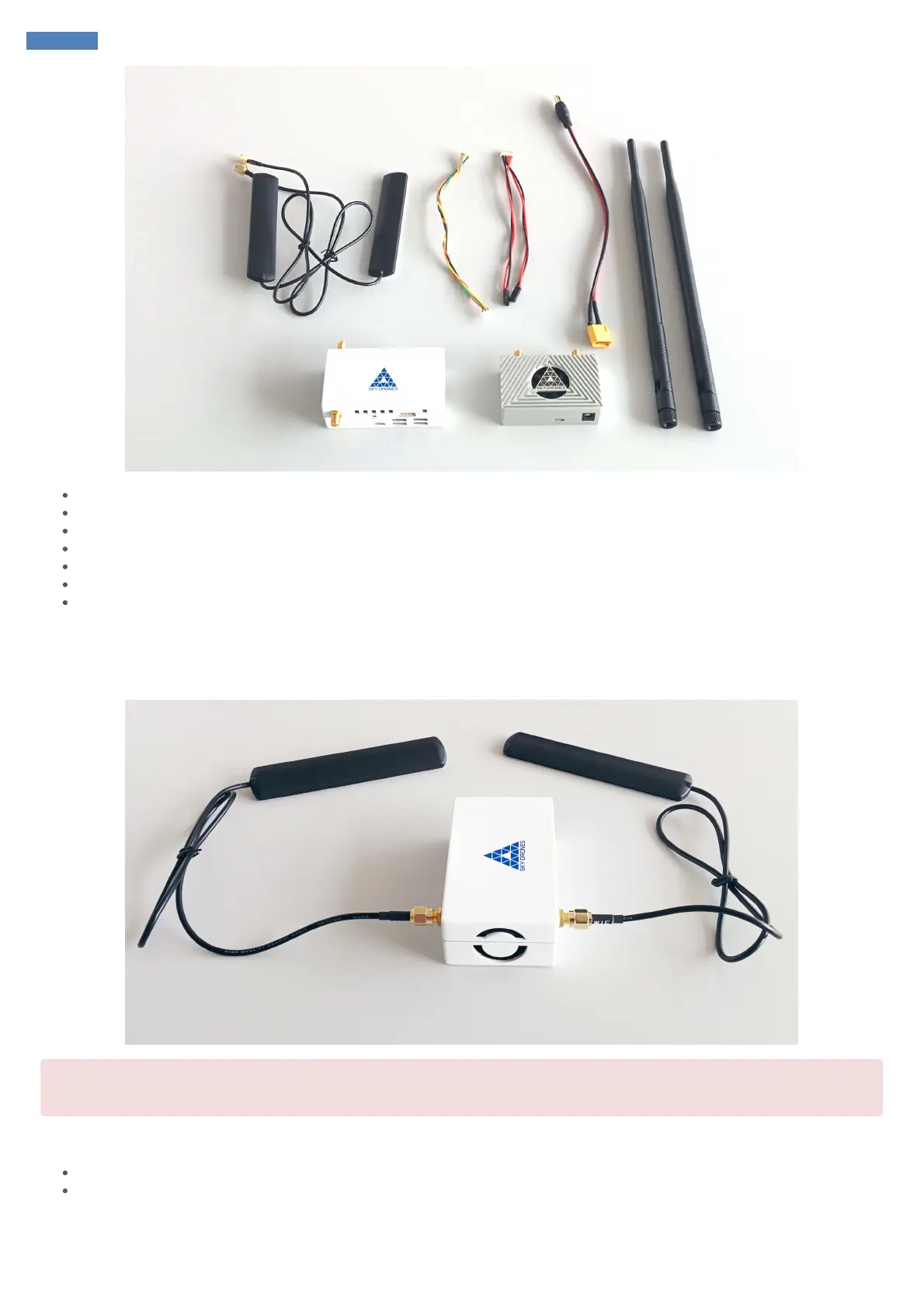

First of all, attach antennas to the air module:
It's not allowed to power up any of the modules without antennas! Powering up the modules without antennas may cause malfunction of the
amplifier and permanent damage. Powering up without antennas voids warranty.
Then attach power supply cable and autopilot telemetry cable:
Power supply goes to 5V DC connector
Autopilot telemetry cable goes to UART connector
