Airframe

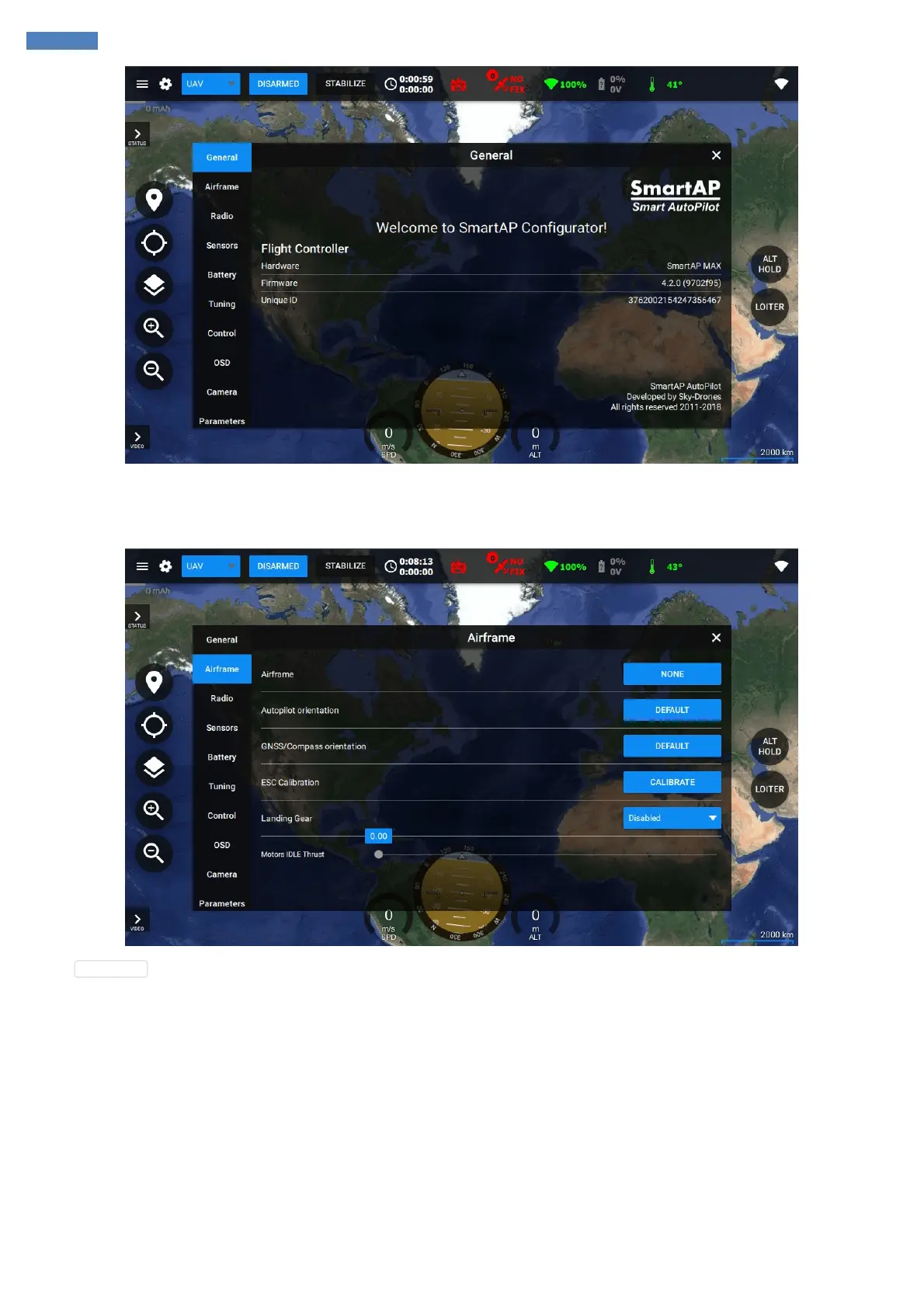

Airframe tab allows you to configure the type of your vehicle.

Click AIRFRAME and choose your airframe from the list. If you can’t see your airframe there – feel free to contact us and we’ll add the new

airframe type for you.

SmartAP AutoPilot User’s Guide General configuration

Sky-Drones - SmartAP Flight Control Systems 98 / 151
