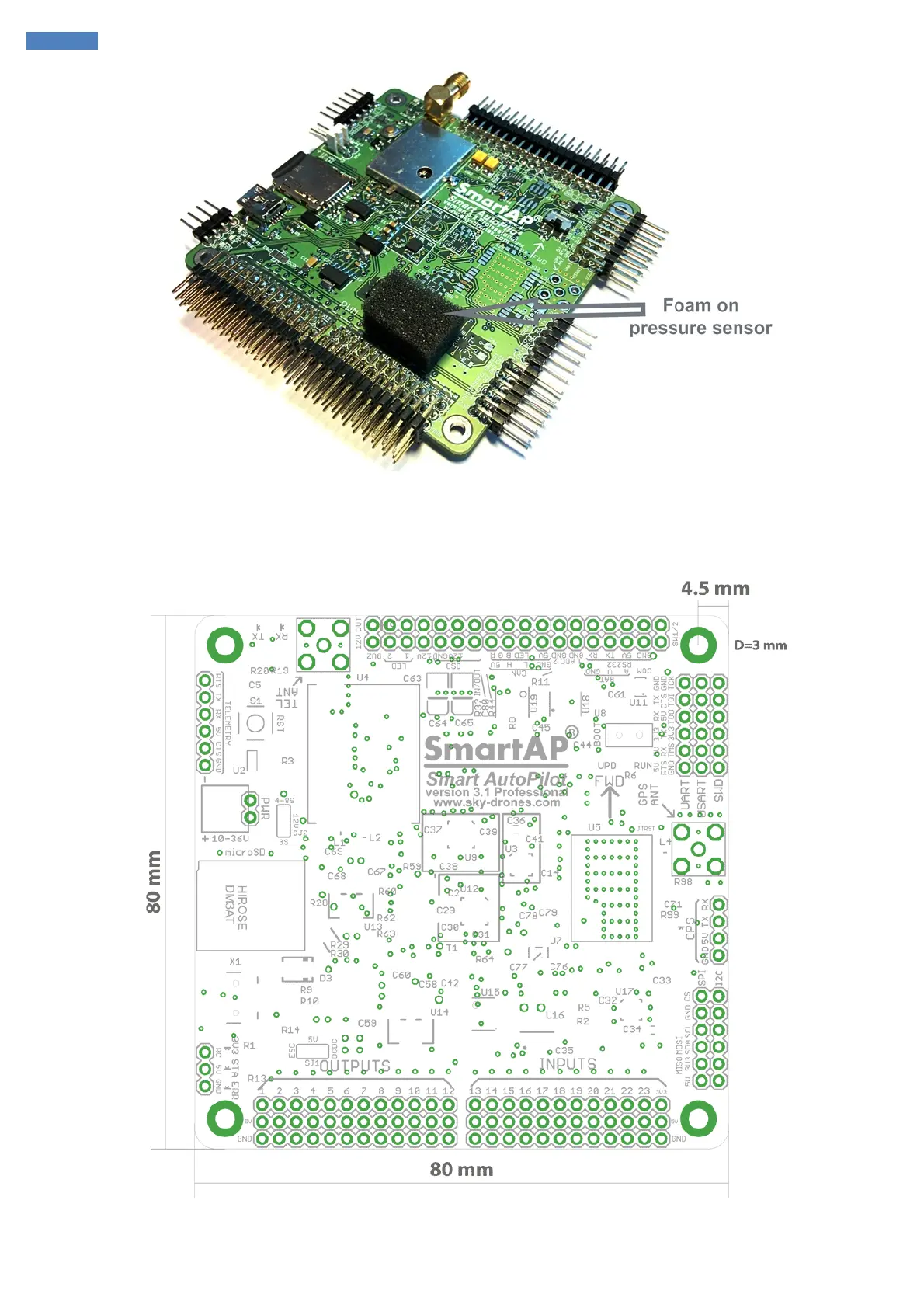

Dimensions

Dimensions of the board are 80x80 mm. Mounting holes diameter is 3 mm, distance between the center of the mounting hole and board edges is

4.5 mm.

SmartAP PRO v .2 pinout

SmartAP AutoPilot User’s Guide Installation

Sky-Drones - SmartAP Flight Control Systems 22 / 151
