SMA Solar Technology AG Commissioning
Technical Description SWebBox-TEN101232 39

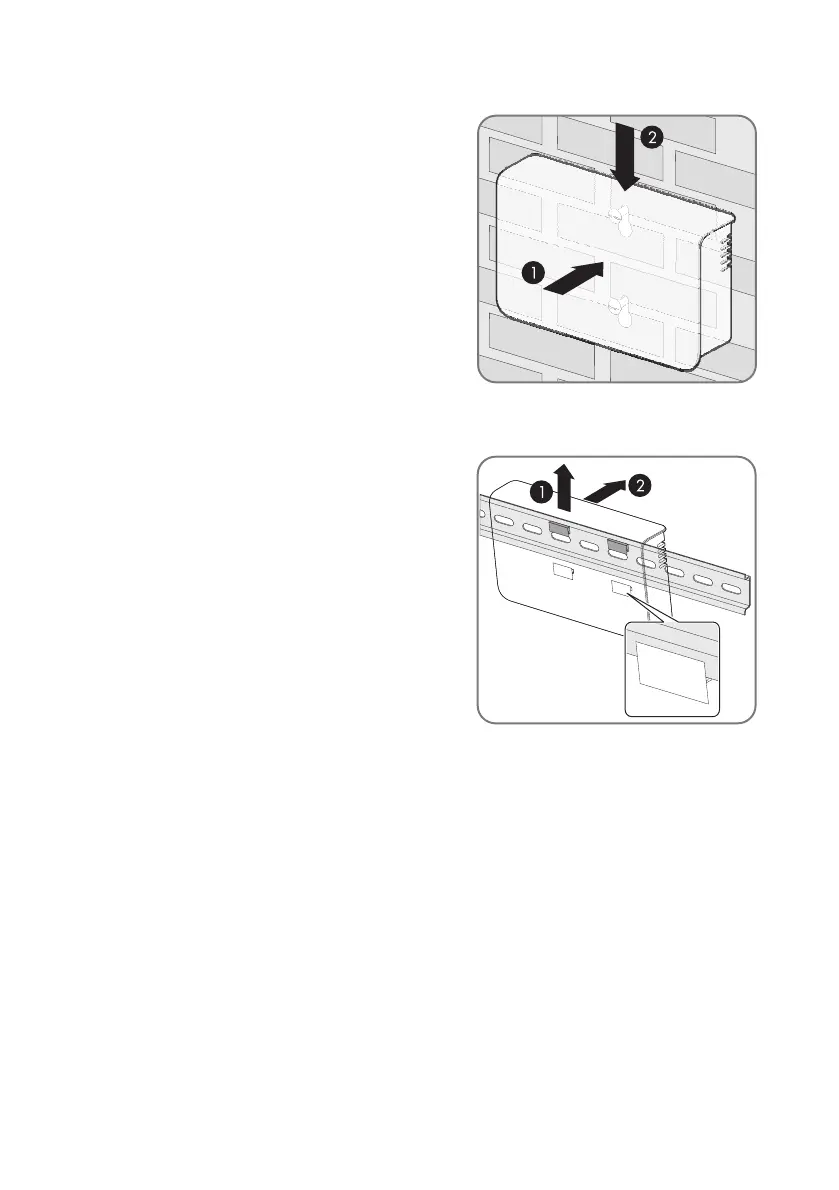

5. Hang the Sunny WebBox onto the screws.
☑ The Sunny WebBox is now mounted on the wall.
Mounting the Sunny WebBox on the top-hat rail
1. Hook the Sunny WebBox with both lower retainers
into the lower edge of the top-hat rail.
2. Press the Sunny WebBox upwards and snap it into
the upper brackets of the Sunny WebBox.
☑ The Sunny WebBox is now mounted on the top-hat
rail.
