SMA Solar Technology AG Operation
Technical Description SWebBox-TEN101232 43

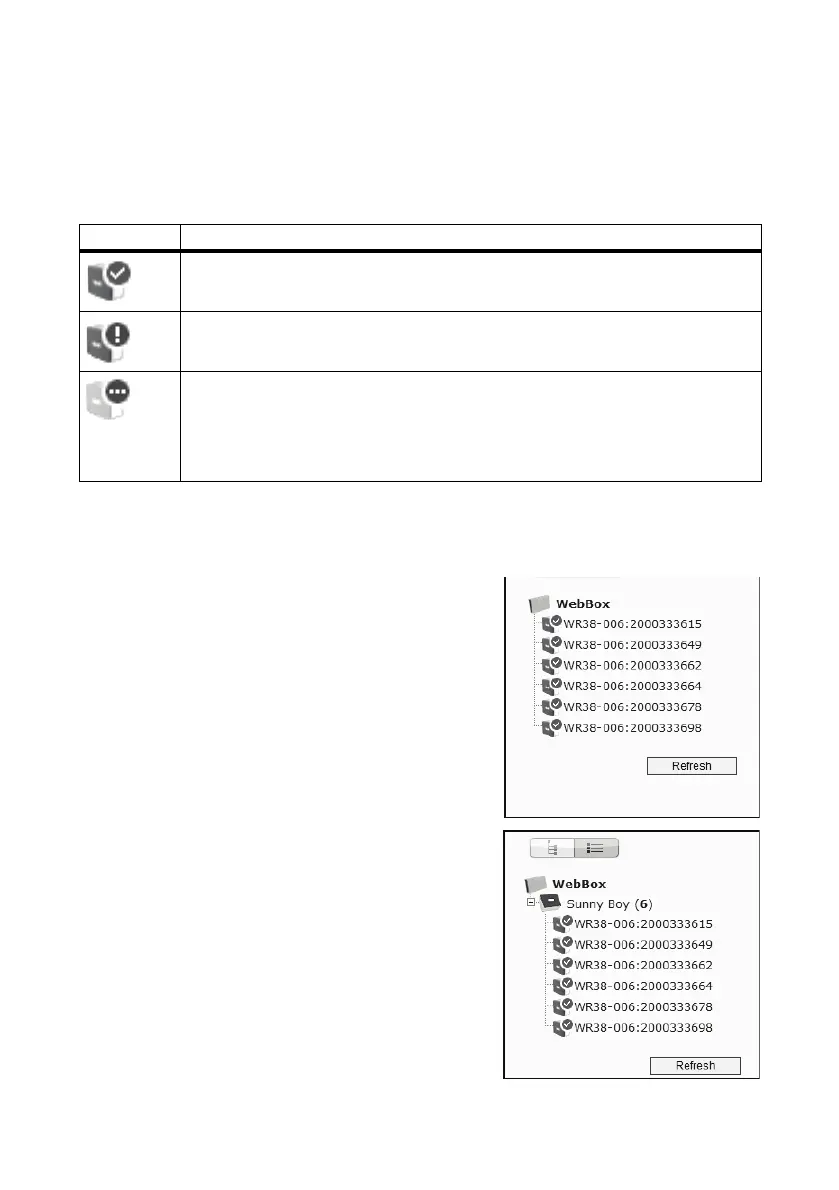

8.1.1 Explanation of the Status Symbols
This section explains the meanings of the various status symbols in the web interface of the Sunny
WebBox. The symbol of a Sunny Boy is displayed in each of the following examples. The Sunny
WebBox user interface shows other devices in the PV plant with corresponding symbols.
8.1.2 Structural view and device view
In the structural view and the device view, you can call up additional data under "Plant > Devices":
Structural view
In the structural view, the user interface shows the devices
in the order in which the devices are connected to the
data bus.
Device view
In the device view, the user interface shows all devices
sorted by device type. Device types are, for example, all
Sunny Boys. The number in brackets specifies the number
of devices of a device type.
Symbol Explanation
This symbol shows that the inverter is ready for operation and communicating with the
Sunny WebBox.
This symbol indicates that communication has been established with the Sunny
WebBox but that there is an fault in the inverter.
This symbol is shown in the following cases:
• The inverter is not communicating with the Sunny WebBox.
• A fault has occurred in the communication with the inverter.
• It is night-time and the inverter is off.
