- 15 -

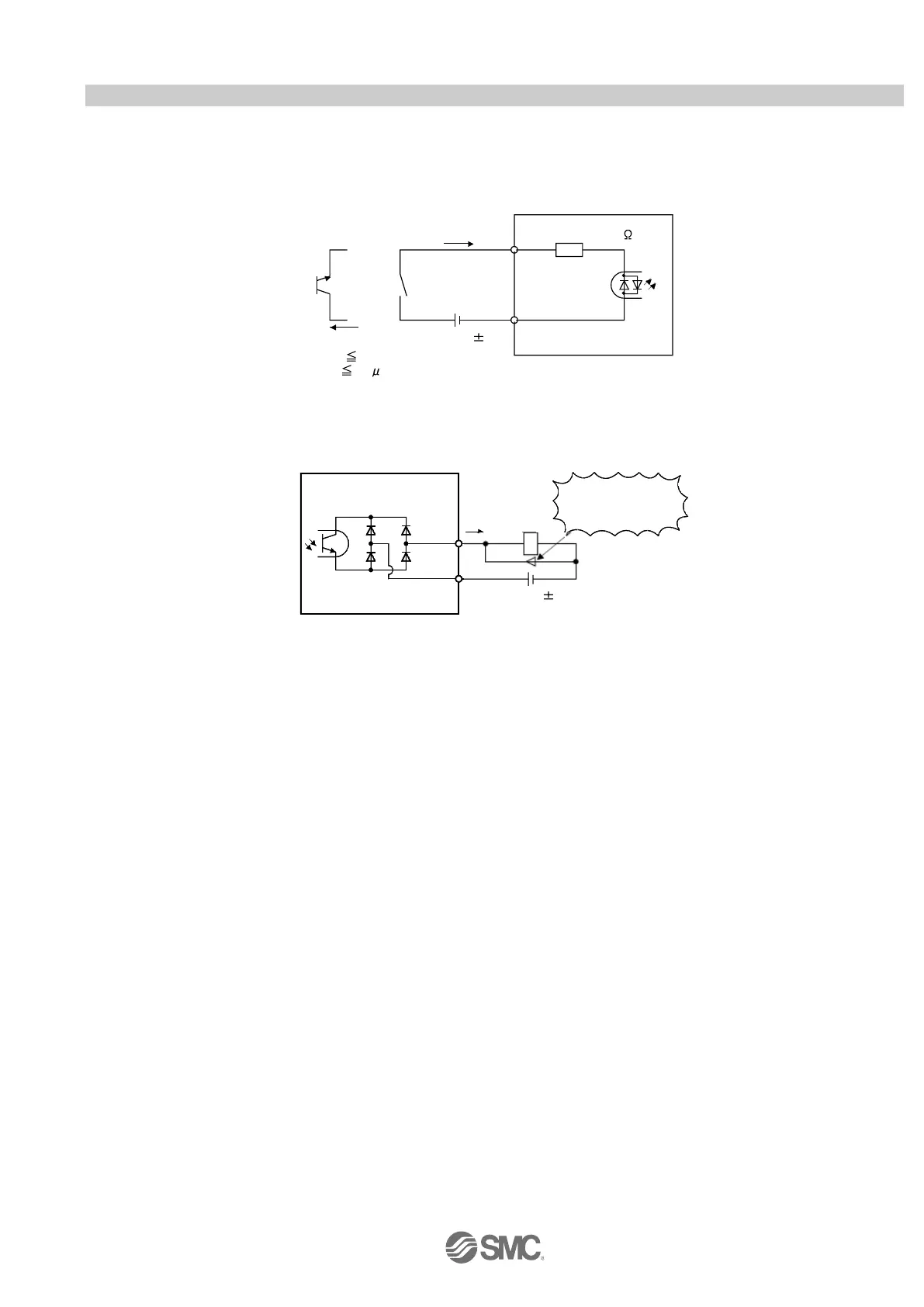

3.2.5 Source I/O interfaces
Source type I/O interfaces can be used with this driver. If used, all DI-1 input signals and DO-1 output signals are
source type signals. Complete wiring according to the following interfaces.
(1) Digital input interface DI-1
SON,
etc.
Servo amplifier
Switch
Approx. 5mA
DICOM
V
CES
1.0V
I
CEO
100 A
24VDC 10%
200mA
Approx. 5.6k
(2) Digital output interface DO-1
A maximum voltage drop of 2.6V may occur in the driver.
(Note) 24VDC 10%
2 00mA
If polarity of diode is
reversed, servo
amplifier will fail.
Servo amplifier
ALM,
etc.
Load
DOCOM
ORIGINAL IMAGE REQUIRED
Note. If the voltage drop (2.6V max) interferes with the relay operation, apply high voltage (up to 26.4V) from
external source.
Driver
Driver
driver
