5.7.4 Point table (Rotation Speed) Configuration

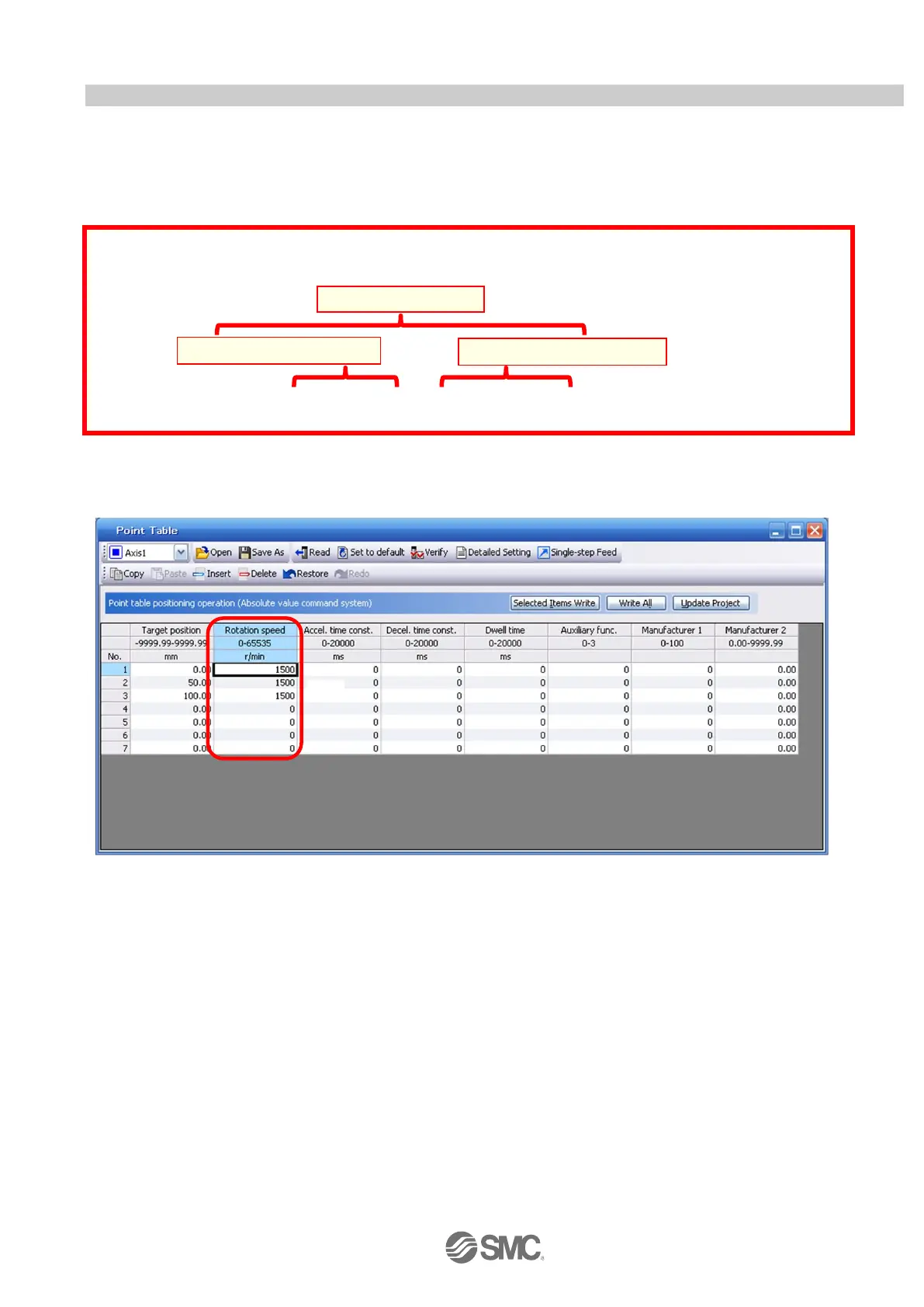

<Rotation Speed Configuration>
① Rotation speed configuration:
*r/min (rpm): motor command rotation speed (motor rotations/min)
Travel speed (mm/s) must be converted into rotation speed (r/min).
See below for the conversion formula.
Example using a 20[mm] Lead Actuator with target travel speed of 500[mm/sec]
The rotation speed must be a value between 0 and the allowable actuator speed. The actuator will not operate if
set to 0.
Too low rotation speed (r/min), may cause vibration (resonance);
Rotation Speed (rpm) = {Speed (mm/s) ÷ Lead (mm) }×60 (S)
= {500 (mm/s) ÷20 (mm) }×60 (s) =1500 (rpm)
Travel distance per second
Travel distance per rotation
Rotations per second
÷
