7.5 Positioning Mode (Programimg Method)
To perform the positioning operation, create a program using target position, rotation speed, acceleration constant and
deceleration constant (The maximum number of programs is 8 for which a total of 120 steps can be created per
program). Install the setup software, MR Configurator2
TM
: LEC-MRC2E which is required for setting the program data
with the program system.
*1 Setup software version 1.52E or above is required.
*2. Setup software should be prepared by the user.
*3. USB cable (LEC-MR-J3USB) is required for software installation.
See “LECSA Operation Manual”, section 13.4 for details regarding the positioning mode (programming method).
See “LECSA Operation Manual”, section 13.9 for details regarding programming methods.

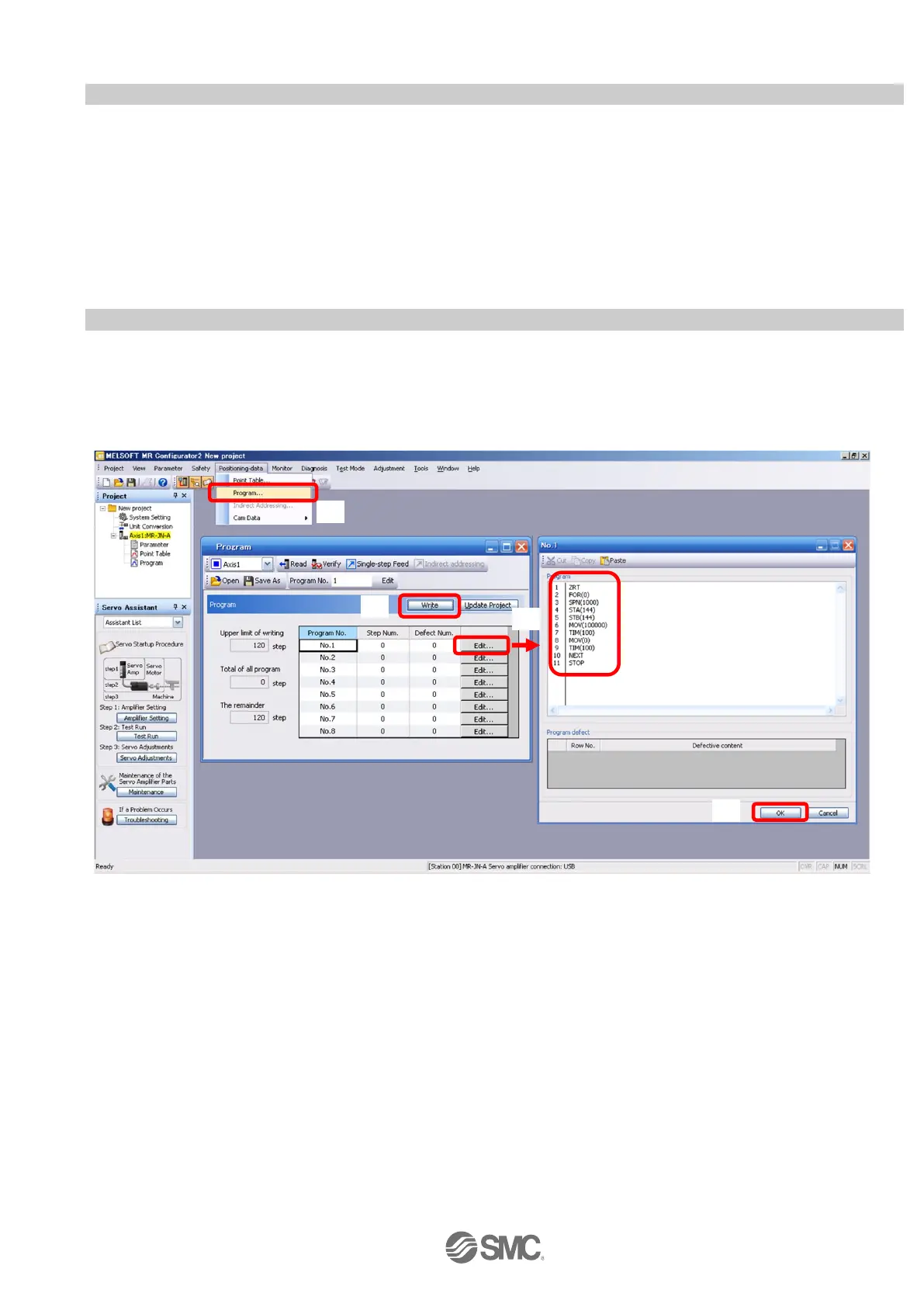

7.5.1 Setting method
① Launch the setup software and select [Program] of [Positioning data].
② Select [Edit] on the program window to open the program edition window.
③ Create programs.
④ Click [OK].
⑤ Program data is written to the driver with [Writel] on the program window.
①
②
③
④
⑤
