Scope Multimeter Optional Settings
Trace Per Division - changes the dropdown vertical scale menu selections to ##/div mode, which
in turn changes the vertical scale to represent ## by division.
## - represents (variable) what is being measured (voltage, amperage, pressure etc.)
Example (Figure 8-30): Selecting 1.0V/div, displays a vertical scale divided by 10. The
vertical scale is “always” divided by 10, therefore each division is incremented by 1.0V, thus a
10V scale.

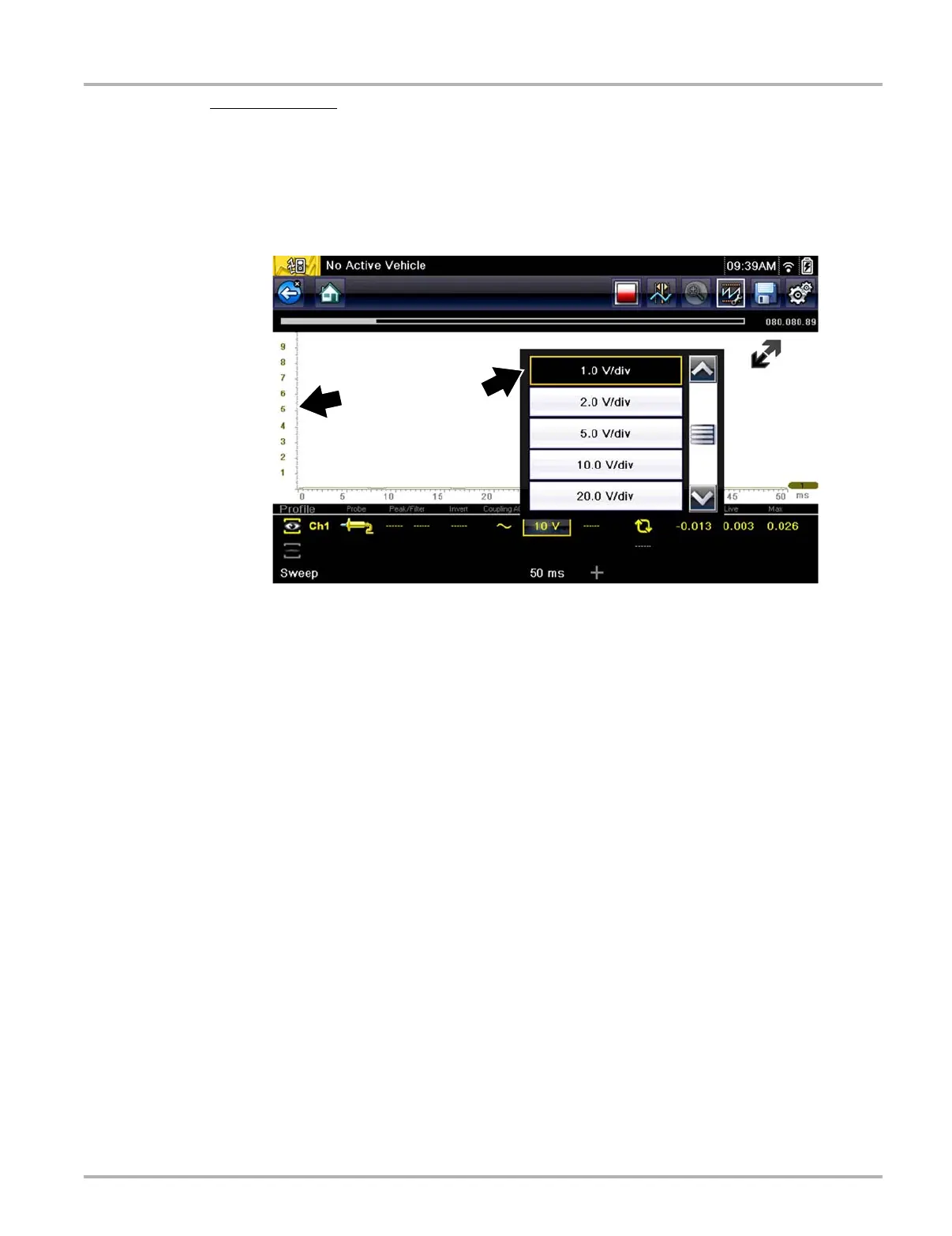

Figure 8-30
