Data Manager Operations Scope Viewer
12.8 Scope Viewer
This section is intended as an introduction of the Scope Viewer, as many features are similar to the
Scope module features. The Scope Viewer allows you to print and playback recorded trace
signals captured on your diagnostic tool. When a scope file is selected, it opens and displays in
the Scope File Viewer.
The Scope Viewer allows you to print and playback recorded trace signals captured on your
diagnostic tool. When a scope file is selected, it opens and displays in the Scope File Viewer.
The Scope File Viewer is intended to be used to review scope and meter files originally captured
on a diagnostic tool. Some features (control icons) of the Scope File Viewer may not be available
“grayed out”. This is normal as those features are only applicable when viewing live data on a
diagnostic tool.

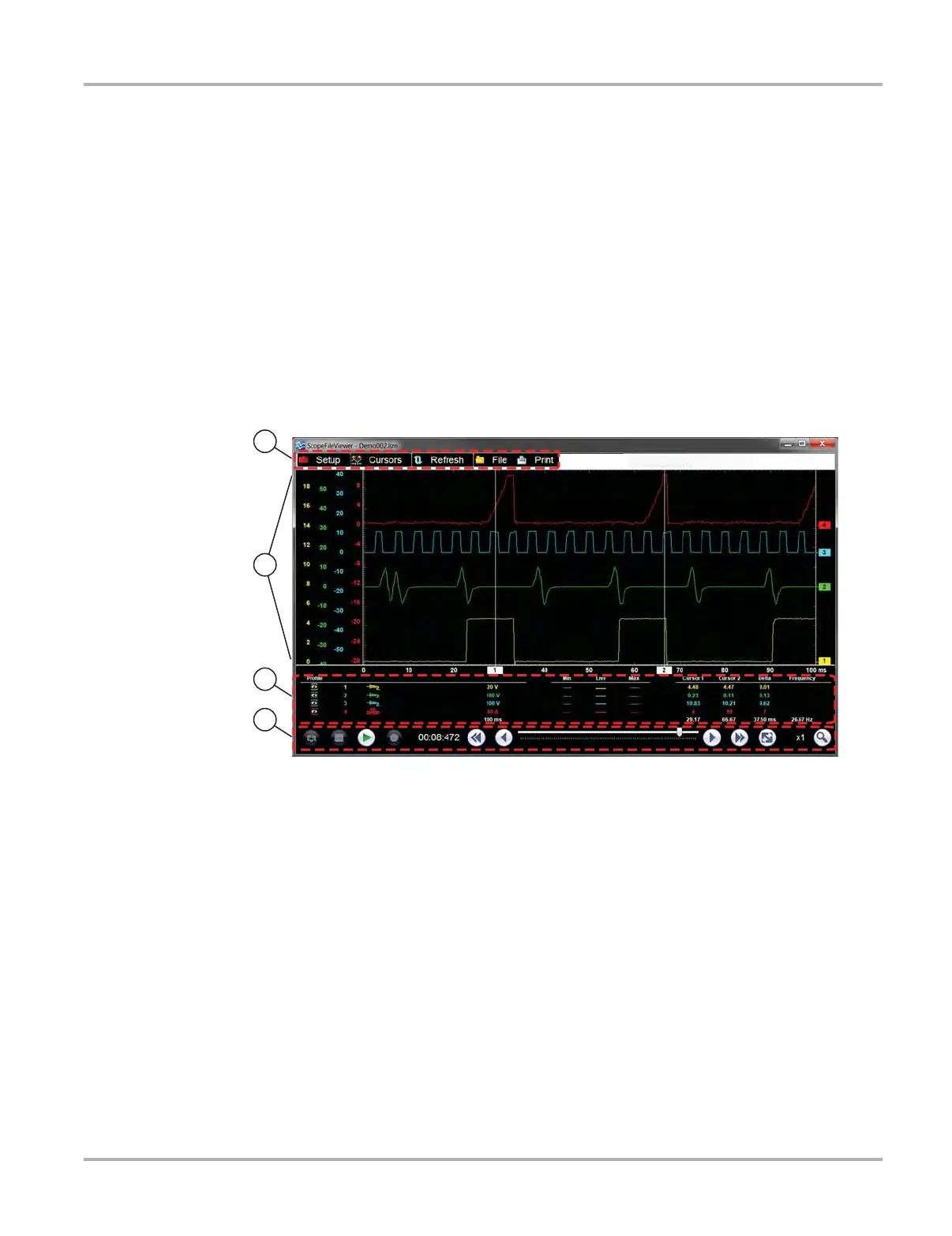

The Scope File Viewer screen includes the following sections:
Figure 12-30
1— Toolbar - contains control icons
2— Main Body - displays recorded trace results
3— Profile Controls Window - displays profile control icons and trace display settings
4— Playback Control Toolbar - contains playback and display controls
