17.1.5 Screen Protector Installation
Touch screen protectors are available as optional equipment (contact your sales representative to
order). The following procedure describes typical installation procedures.
Items recommended for installation:
⢠Microfiber type cloth (lint-free)
⢠Flexible straight edged tool (e.g. small squeegee, plastic card)
⢠Cellophane tape
z To install a screen protector:
i Cleanliness is the most important factor during the installation of the screen protector. The
following tips are provided to assist in the installation:
â Clean your hands thoroughly
â Clean the touch screen thoroughly using a microfiber type cloth, removing all dirt, dust,
grease, fingerprints etc. See Cleaning the Touch Screen on page 194 for additional
information.
â Work in a well lit area
â Minimize dust; work in an area with minimal air movement, turn off fans or air conditioning etc.
1. Thoroughly clean and dry the touch screen. See Cleaning on page 194 for additional
information.
2. Peel the rear mask (Tab 1) approximately 1 in (Figure 17-5). (2.54 cm) away from one edge of
the protector.
Do not remove the front mask (Tab 2) at this time (Figure 17-6).
3. Carefully align the exposed edge of the protector with the edge of the screen and lightly hold
the edge down to keep it in position (Figure 17-5). While holding the edge, slowly pull off the
rear mask and allow the protector to cling to the screen. Make any alignment adjustments as
needed during installation.

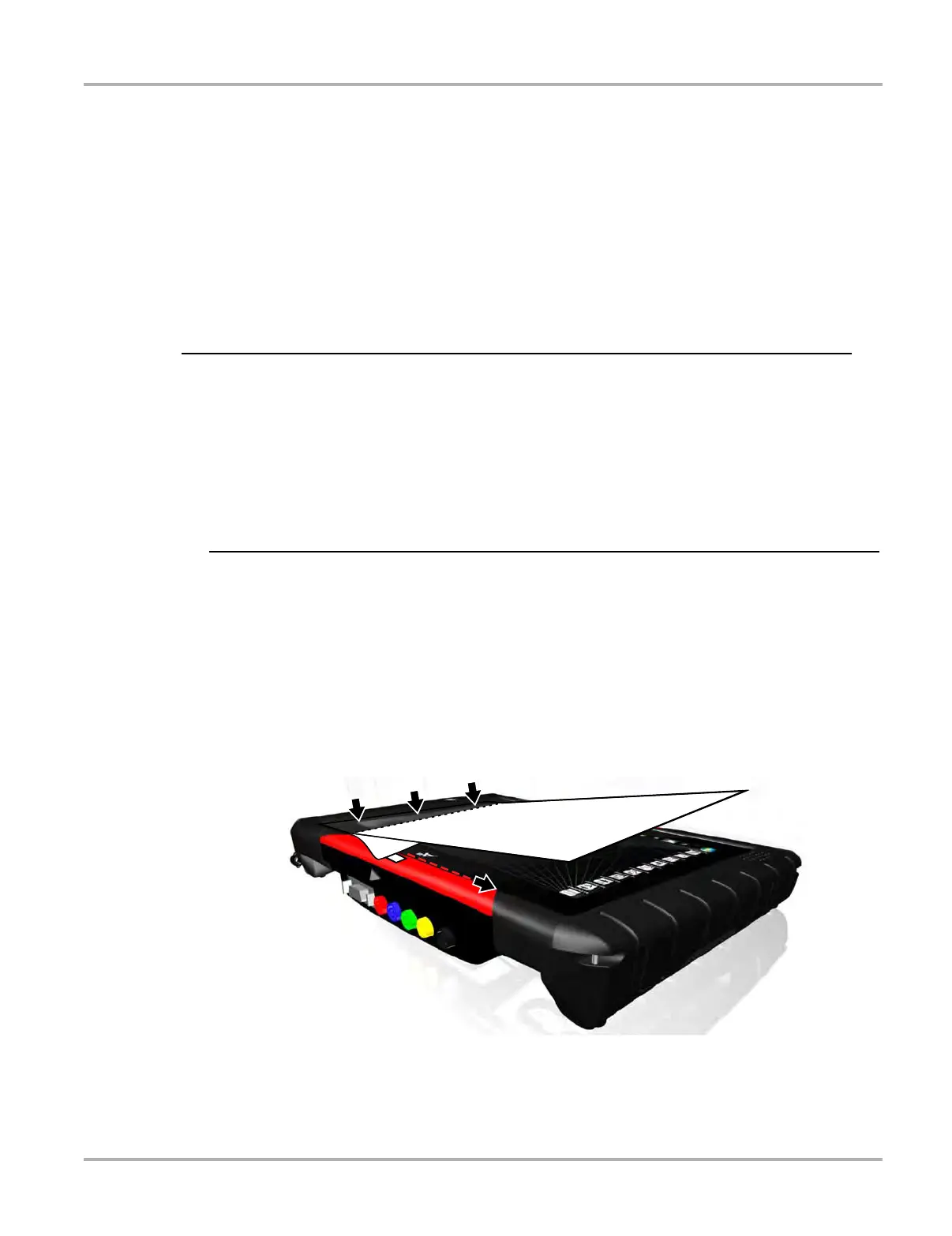

Figure 17-5 Removing rear mask (Tab 1) to apply protector
4. Once the protector is in place, use the microfiber cloth to work out any air bubbles. As an
alternative, a flexible straight edged tool can be used.
