OBD Direct Operations OBD Diagnose
6.2.2 Connector Information
This option opens a database of vehicle diagnostic connector locations that includes most makes
and models.
z To locate a vehicle diagnostic connector:
1. Select Connector Information from the System menu.
2. Select a manufacturer from the list presented.
3. Select a model from the list presented.
Instructions for which, if any, cable adapter or pin to use displays.
4. Select Continue.
Information on where to locate the vehicle diagnostic connector displays.
5. Select Continue to return to the System menu.
6.2.3 Manual Protocol Selection
A communication protocol is a standardized way of data communication between an ECM and a
scan tool. Global OBD may use several different communication protocols. The scan tool
automatically connects to an available protocol, which displays on the connection message
(Figure 6-5). Some vehicles communicate on more than one protocol. Use the Manual Protocol
Selection option to switch to a different protocol.
Select Manual Protocol Selection and message displays advising you to make sure you know
the correct protocol for the test vehicle. An incorrect selection may activate warning lamps and set
CAN related faults on the vehicle. Select OK and a menu of options displays (Figure 6-7).

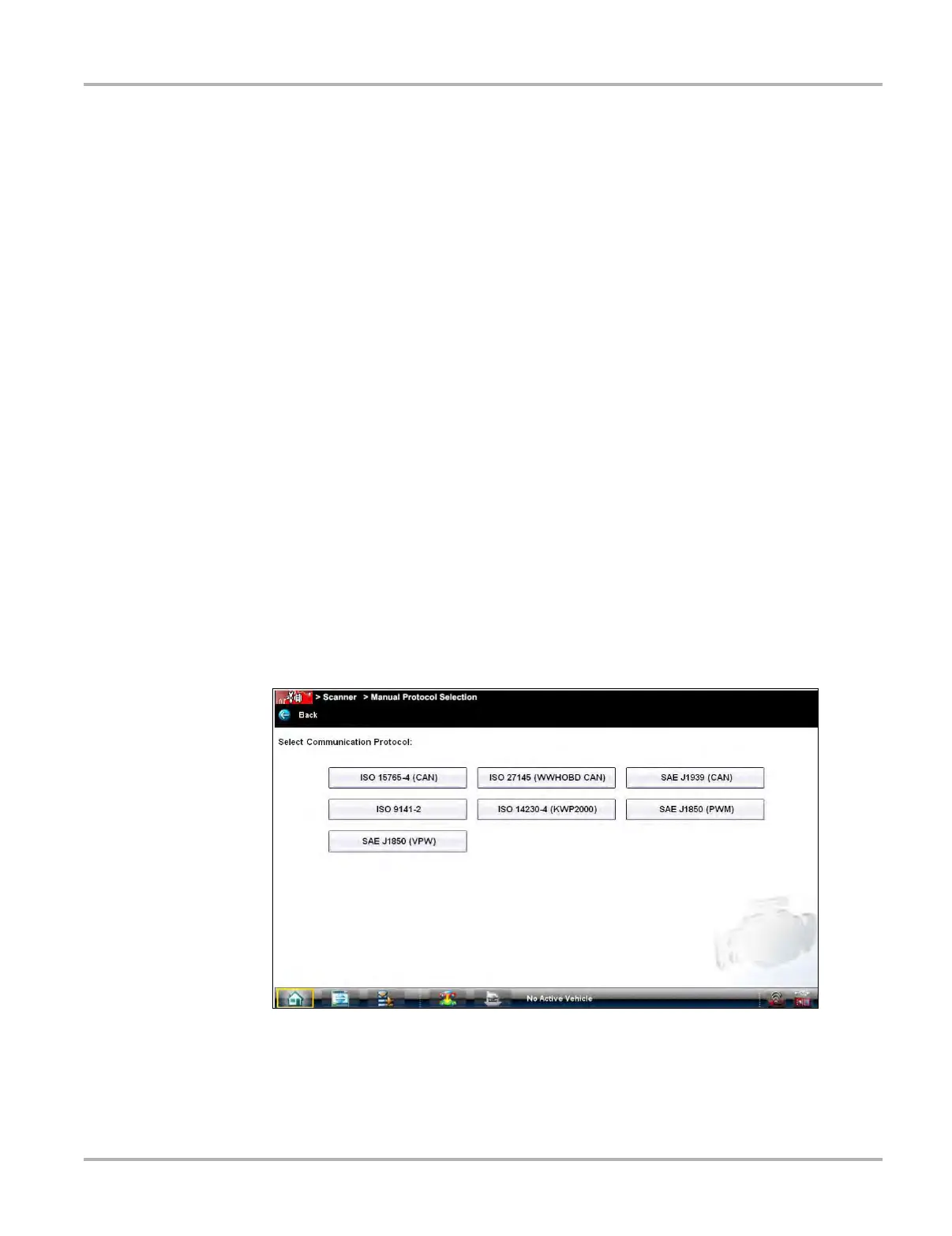

Figure 6-7 Sample communication protocol menu
