3.4.4 Function Icons
The Function Icons configure the Diagnostic Tool for the type of test to be performed. Table 3-5 on
page 18 gives brief descriptions of the available icons, which operations are available depends
upon the individual configuration of your system. Use the stylus or your finger tip to select from the
icons.

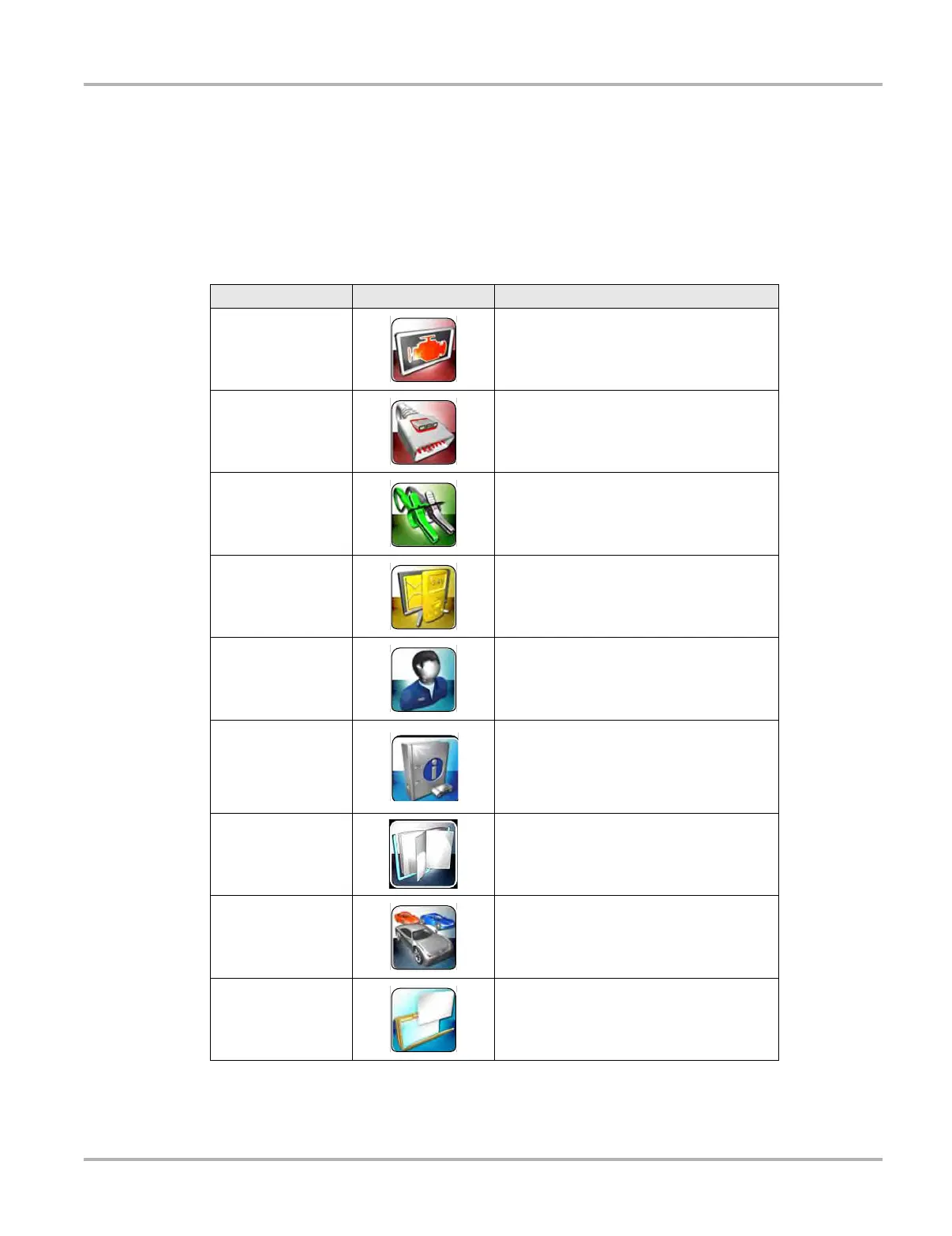

Table 3-5 (table 1 of 2)
Name Icon Description
Scanner
Configures the Diagnostic Tool to operate
as a scan tool. See Scanner Function on
page 25.
OBD Direct
Allows you to perform generic OBD-II or
EOBD system tests without identifying the
specific vehicle. See OBD Direct
Operations on page 72.
Guided Component
Tes t
Opens a diagnostic database of specific
tests for the identified vehicle. See Guided
Component Test Operations on page 80.
Scope Multimeter
Configures the Diagnostic Tool to operate
as a lab scope, graphing multimeter, or
digital multimeter. See Scope and
Multimeter Operations on page 91.
SureTrack
®
Opens the SureTrack website. See
SureTrack on page 177.
Repair Information
Provides the information needed to make
repairs once you have made your
diagnosis. The linked program varies by
region. See Repair Information on
page 121.
Quick Lookups
Provides OEM vehicle information for oil
specs and resets and technical service
bulletins. See Quick Lookups on page 123.
Vehicle History
Identifies the test vehicle and organizes and
manages work in progress and service
records. See Vehicle History Operations on
page 135.
Data Manager
Opens the organization system for saved
data files. See Data Manager Operations on
page 141.
