14
Basic Operation and Navigation Shortcut (S) Button
3.2.1 Configure Shortcut (S) Button
This feature allows you to change the function of the Shortcut (S) button.
z To configure the Shortcut (S) button:
1. Press and release the Shortcut (S) button.
2. Select the Settings icon from the slide-out menu.
3. Choose the function you would like the Shortcut button to perform when pressed (Figure 3-2).
The current/active setting is indicated by a yellow highlight box.

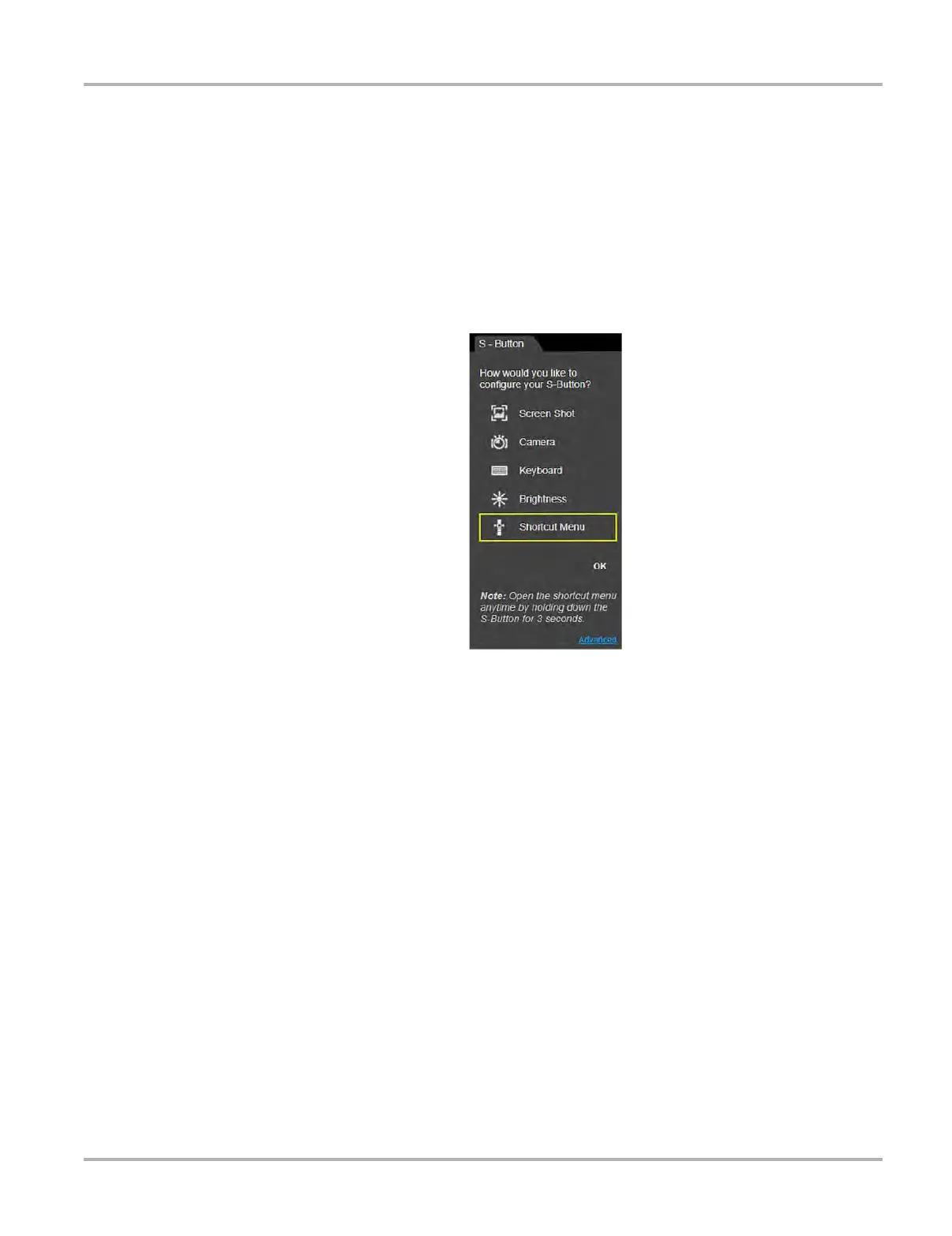

Figure 3-2 Shortcut (S) button configuration menu
4. Select OK.
3.2.2 Advanced (menu selection)
The Advanced selection has no functionality under normal operating conditions, and should ONLY
be selected when directed to do so, by Snap-on customer service.
Selecting Advanced displays the advanced diagnostic system information screen. The system
state information and functions are ONLY used during system troubleshooting, when requested by
Snap-on customer service.
