32
Scanner Function Basic Operation and Navigation
Save
The Save icon is used to record movies of vehicle datastream values. Saved files can be helpful
when trying to isolate an intermittent problem or to verify a repair during a road test.
z To save a movie:
• Select Save.
A save movie dialog box displays while data is being saved. The movie is saved when the
message box disappears.

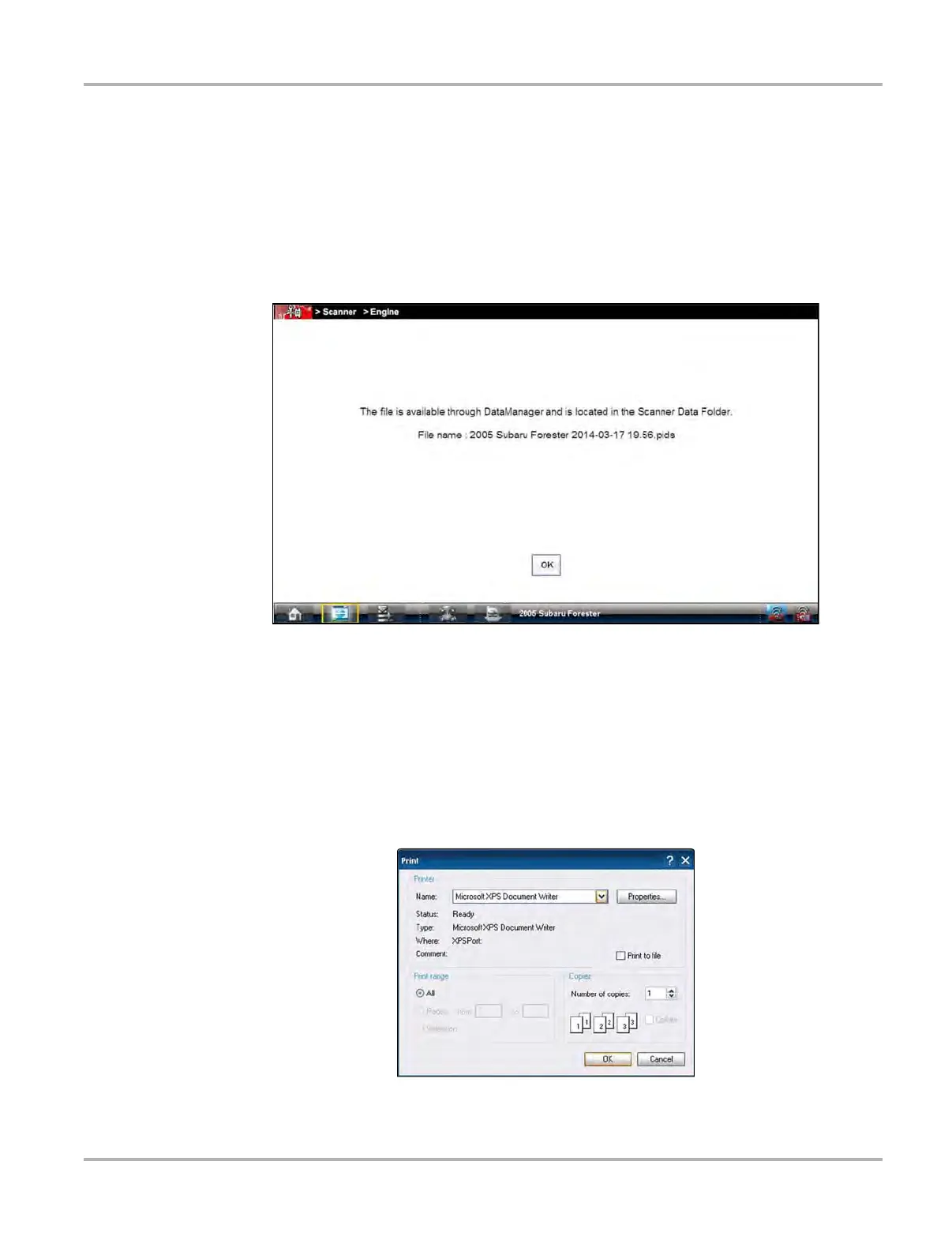

Figure 4-7 Sample save dialog box
To open saved Scanner data files, from the Home screen select Data Manager > Scanner Data
Folder, see Scanner DataViewer Operation on page 155.
Print
Selecting Print from the toolbar opens a standard Windows Print dialog box. Select from the
options as needed to print the current frame of data.
Figure 4-8 Sample print dialog box
