Scan Module Operation Troubleshooting
1— Vehicle Power—green LED, flashes during wireless communications
2— Communication—red LED, illuminates if there is a communications failure
3— Bluetooth—green LED, flashes during wireless communications

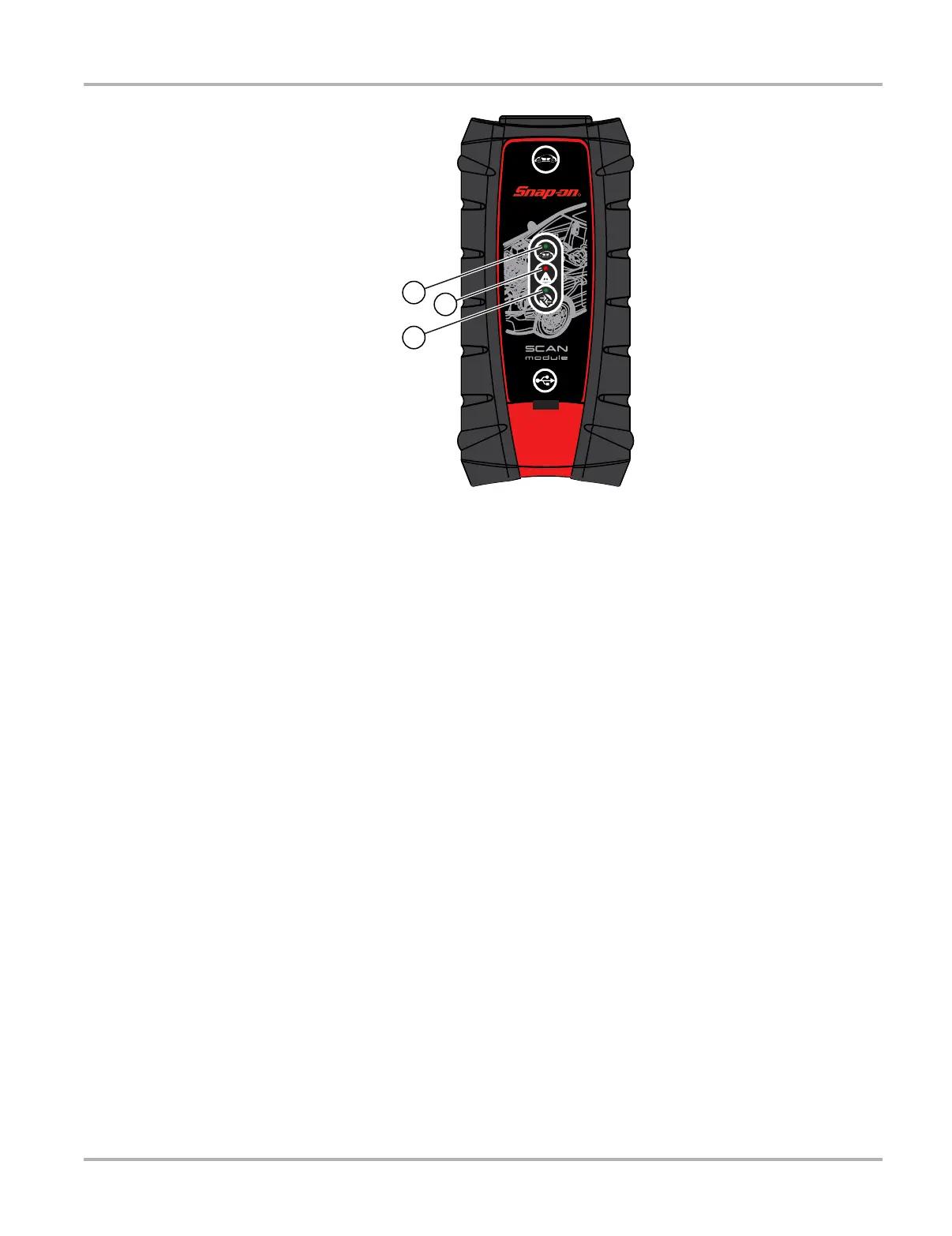

Figure 5-6 Scan Module LEDs
Each LED can be in one of three states; off, lit solid, or flashing. Interpret as follows:
• Vehicle Power
– Off, vehicle power is not being supplied to the Scan Module through the data cable
– On Solid, the Scan Module is being powered by the vehicle, but not communicating with
the Diagnostic Tool.
– Flashing, the Scan Module is being powered by the vehicle and is communicating with the
Diagnostic Tool.
• Communication
– Off, normal state, no errors detected.
– On Solid, communications error detected.
– Flashing, internal self-test in process, will go out once the test completes.
• Bluetooth
– Off, there is no connection between the Scan Module and Diagnostic Tool.
– On Solid, the Scan Module and Diagnostic Tool are communicating through a solid
(USB cable) connection.
– Flashing, the Scan Module and Diagnostic Tool are communicating through a wireless
connection.
