SIP Phone Conﬁguration Guide

- 9 -

System Status - HD101

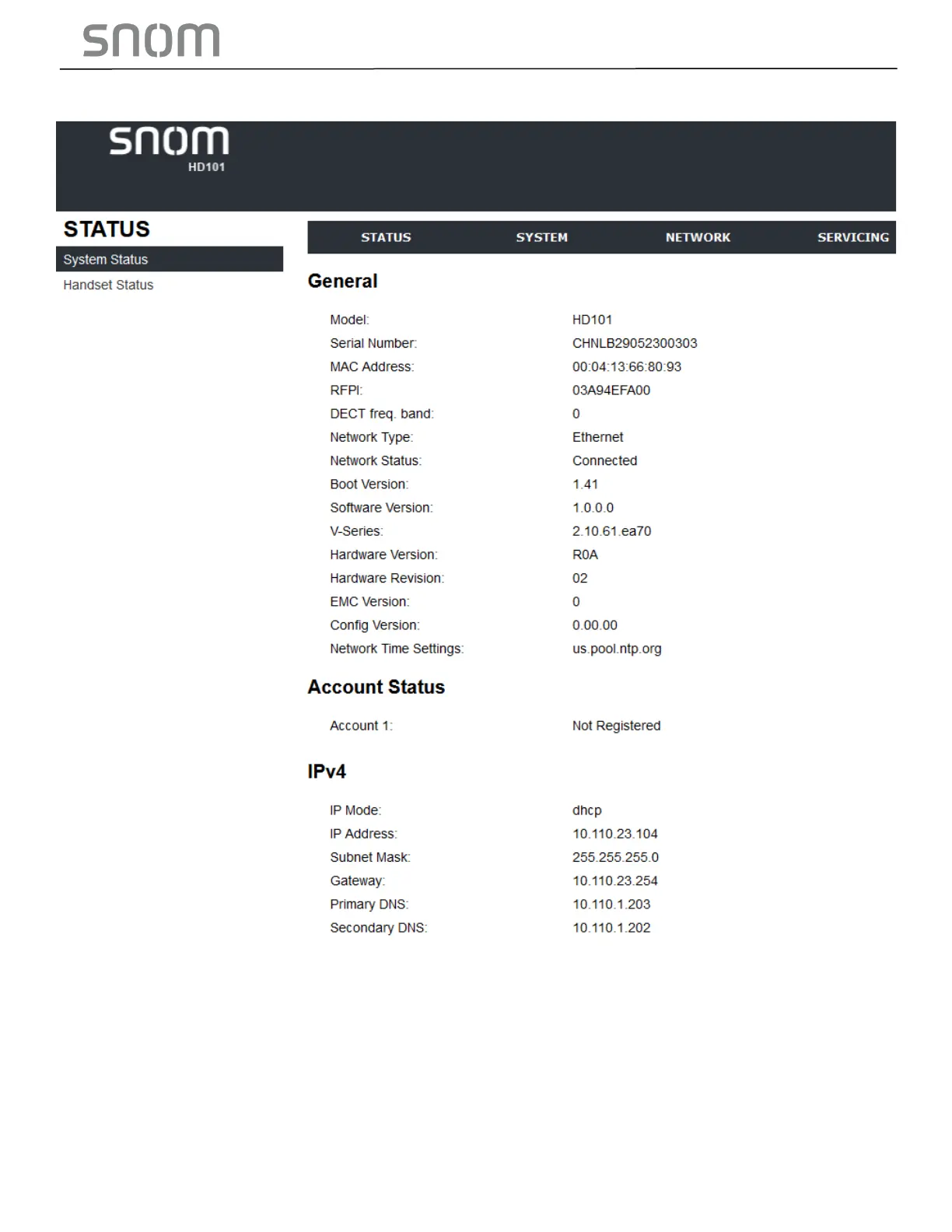

• General: display information about your device, including model, MAC address, and firmware

version.

• Account Status: display your SIP account registration.

• IPv4 | IPv6: display network information regarding your device’s network address and network

connection.
