Setting Up Communication
SolarEdge Installation Guide – MAN-01-00002-1.6
73
If the inverter has block terminal communication connectors, then connect as
follows:
• The Ethernet block terminal is already inserted into the inverter when it
is delivered. Pull off the Ethernet block terminal, as shown on the left
below:

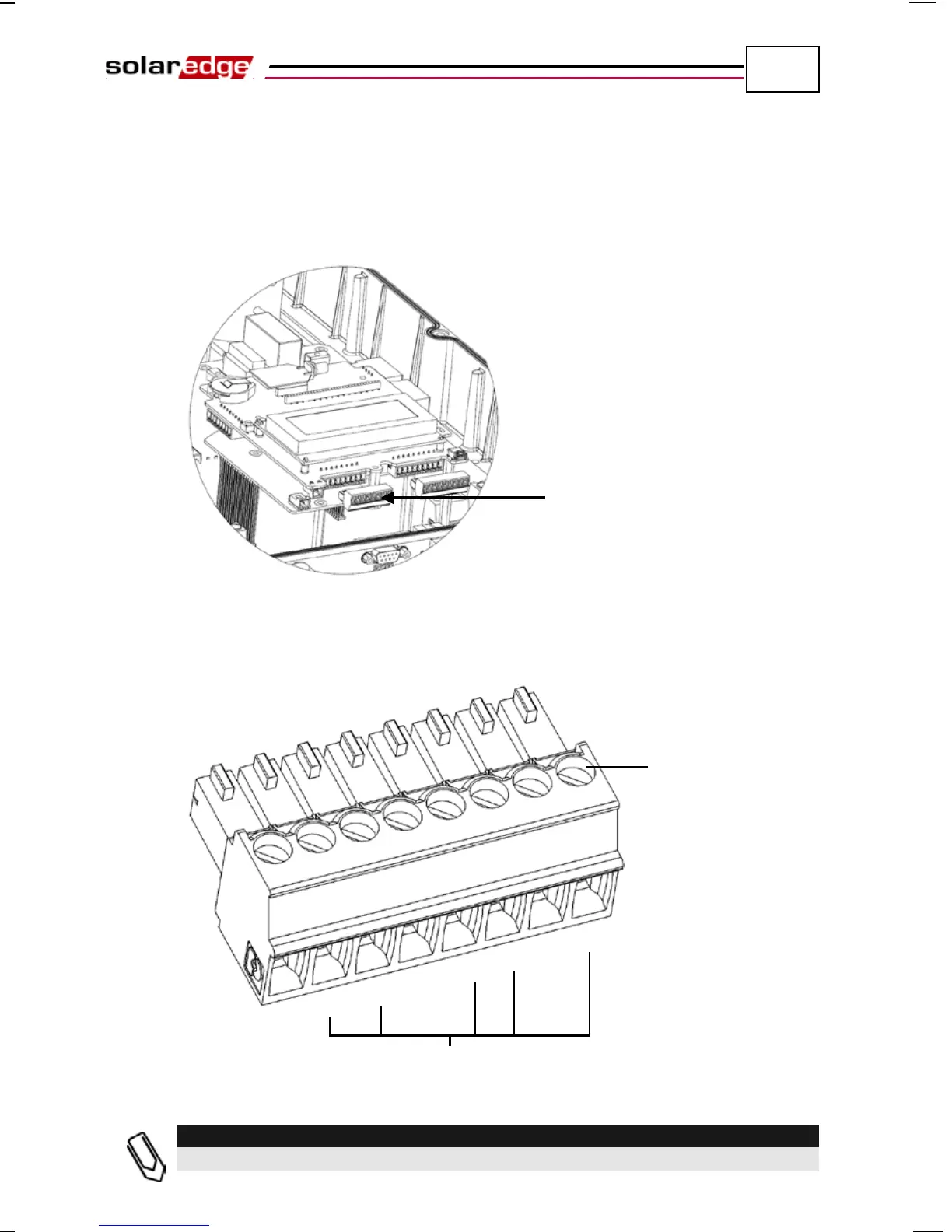

Figure 40: Removing the Ethernet Block Terminal
• Loosen the screws of connectors 6, 3, 2 and 9 on the Ethernet block
terminal, as shown below:
Figure 41: Ethernet Block Terminal
:
One to seven connectors can be connected. Only 1, 2, 3 and 6 are mandatory.
