Setting Up Communication
SolarEdge Installation Guide – MAN-01-00002-1.6
79
• Connect the other inverters in the chain. You can use any color wire to
connect between each connector A on one inverter to connector A on the
other inverter, as long as you use the same color wire. The same goes for
connecting between G connectors and for connecting between B
connectors. The following diagram conceptually depicts this connection
schema:

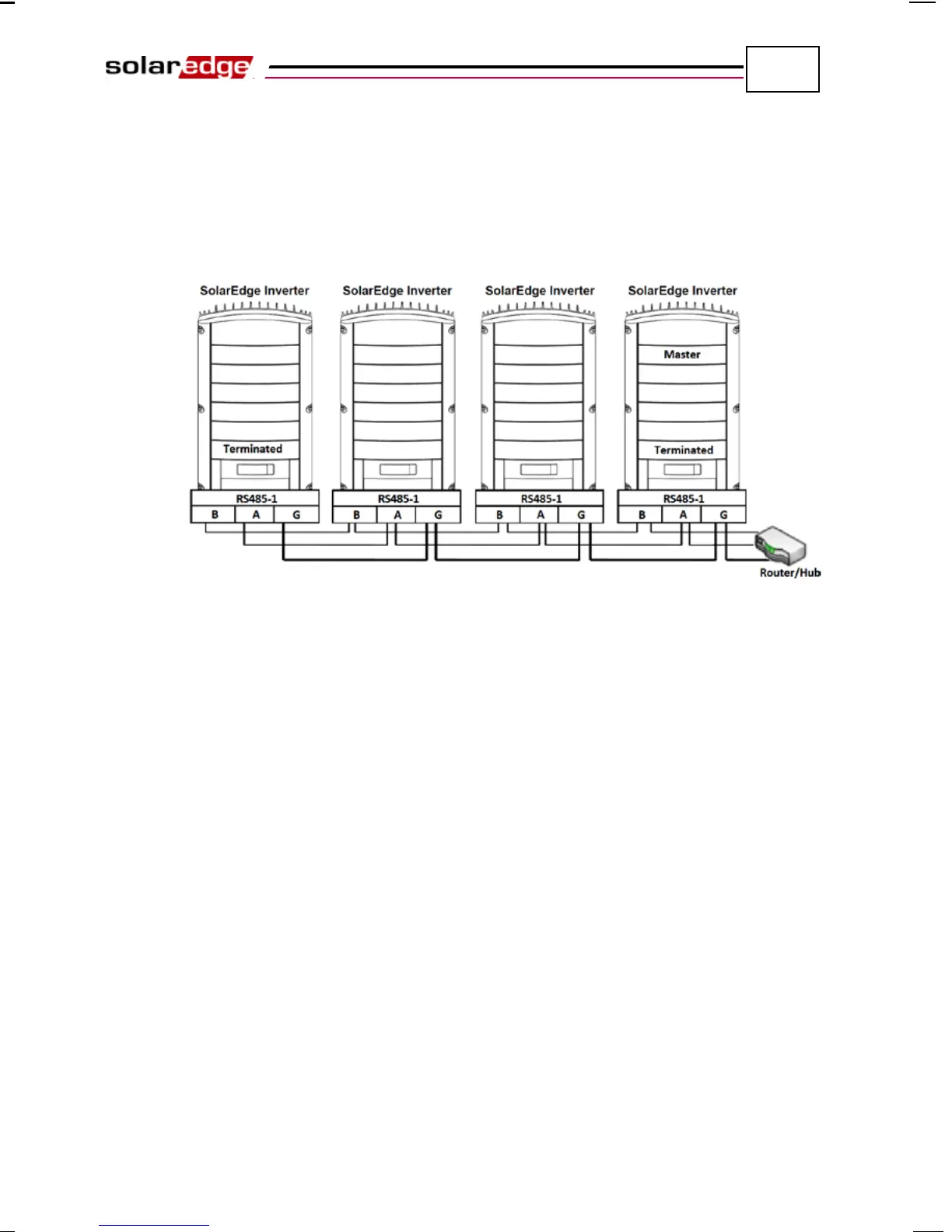

Figure 46: Connecting the Inverters in a Chain
• Reinsert the block terminal into the inverter card.
