DCR-PC1/PC1E
DCR-PC1/PC1E
MR-40
DRUM/CAPSTAN DRIVE,
REC/PB HEAD AMP
DD-111
(DC/DC CONVERTER)
TB-37
(BATTERY TERMINAL)
VC-210
CAMERA PROCESS,
MECHA SP CONTROL,
BLOCKING,
CAMERA HI CONTROL,
AUDIO PROCESSOR,
EVF DRIVER,
DC/DC CONVERTER,
LINE OUT AMP
For printed wiring boards
• This board is eight-layer print board. However, the
patterns of layers two to seven have not been included
in the diagram.
• Chip parts
Transistor Diode
There are few cases that the part printed on this
diagram isn’t mounted in this model.
C
BE
5
64
2
13
3
21
3
21

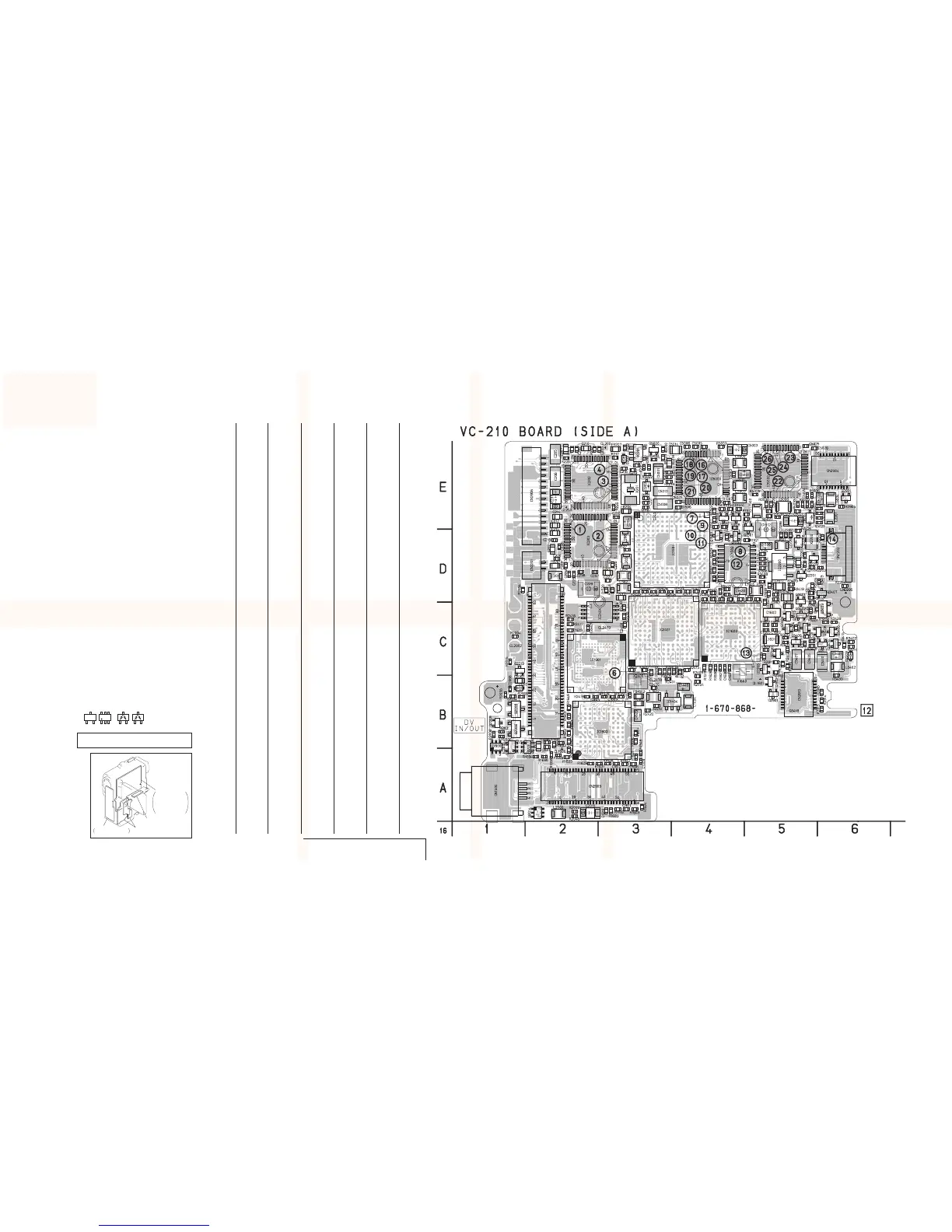

VC-210 BOARD (SIDE A)
C202 F-2
C203 F-3
C204 E-3
C205 F-2
C206 E-2
C207 F-2
C210 F-2
C211 E-2
C212 E-2
C214 E-2
C215 D-2
C216 E-3
C217 D-2
C218 D-2
C219 E-3
C220 D-2
C221 E-3
C222 D-2
C223 D-2
C224 D-2
C225 D-3
C226 D-3
C227 D-3
C228 D-2
C229 D-2
C237 E-9
C238 D-2
C255 E-3
C257 D-2
C502 D-9
C503 C-9
C505 C-9
C506 C-9
C507 D-9
C508 D-9
C509 D-9
C510 C-9
C511 D-9
C512 C-9
C514 D-9
C515 D-9
C516 E-9
C518 D-9
C520 E-9
C521 E-9
C1401 B-9
C1402 C-9
C1404 C-9
C1405 B-9
C1409 C-9
C1418 C-9
C1439 C-9
C1449 B-4
C1451 C-9
C1503 E-4
C1504 D-4
C1505 D-5
C1506 E-4
C1507 E-3
C1508 D-5
C1509 A-3
C1512 D-5
C1600 D-5
C1601 D-5
C1602 C-5
C1603 C-5
C1604 C-5
C1606 C-4
C1607 C-4
C1609 B-3
C1610 A-3
C1611 A-3
C1612 A-3
C1613 C-2
C1614 D-4
C1615 B-2
C1616 D-5
C1617 D-5
C1618 B-2
C1619 B-2
C1620 D-4
C1623 B-3
C2015 A-2
C2030 C-12
C2038 C-12
C2046 C-12
C2051 C-12
C2052 C-12
C2053 C-12
C2054 C-12
C2066 B-1
C2067 B-1
C2206 D-9
C2207 E-9
C2208 E-8
C2210 E-8
C2211 E-8
C2212 E-8
C2213 F-7
C2215 E-7
C2216 E-8
C2217 E-8
C2218 E-8
C2219 E-8
C2220 E-8
C2221 E-8
C2222 E-8
C2223 E-8
C2224 D-8
C2226 E-8
C2227 D-7
C2232 D-8
C2233 D-8
C2234 D-8
C2235 D-5
C2236 D-5
C2237 D-5
C2238 D-5
C2400 B-3
C2402 C-3
C2403 C-3
C2405 C-2
C2408 C-3
C2410 D-3
C3401 C-6
C3402 B-8
C3403 D-5
C3405 C-5
C3407 C-5
C3408 D-5
C3409 C-5
C3410 C-6
C3423 B-8
C3424 C-8
C3425 C-8
C3426 B-8
C3427 C-8
C5000 E-9
C5001 E-4
C5002 E-4
C5003 F-4
C5004 F-4
C5005 F-4
C5006 F-4
C5007 E-3
C5008 E-3
C5009 E-9
C5010 E-9
C5011 F-9
C5012 E-3
C5013 E-4
C5014 F-4
C5015 E-9
C5016 E-9
C5017 E-5
C5018 E-6
C5019 E-5
C5020 E-5
C5021 E-5
C5022 E-6
C5023 E-5
C5024 E-5
C5025 F-5
C5026 F-5
CN1500 A-1
CN2201 D-2
CN2202 D-6
CN2904 E-6
CN2906 E-2
CN2908 C-2
CN2909 A-2
CN2910 B-5
D202 E-3
D203 E-3
D501 D-9
D1600 C-5
D2000 B-1
D2201 D-7
D2203 D-8
D2206 F-8
D2207 D-8
D2208 D-5
D2209 C-6
D2901 B-5
D2902 B-5
D2903 C-5
D3400 C-7
D3401 B-8
D5000 E-5
FB201 D-2
FB204 E-3
FB207 F-3
FB1601 B-3
FB1602 B-3
IC201 F-3
IC202 E-2
IC203 D-2
IC501 C-9
IC502 D-9
IC1402 B-9
IC1404 B-4
IC1501 D-4
IC1502 D-4
IC1600 C-4
IC1601 C-2
IC1602 B-3
IC2000 B-1
IC2200 D-5
IC2201 D-9
IC2203 E-8
IC2204 E-8
IC2401 C-3
IC2404 C-3
IC3400 C-8
IC3401 B-8
IC3402 C-8
IC5000 E-4
IC5001 E-9
IC5002 E-5
L201 D-2
L203 D-3
L204 D-3
L206 D-3
L502 D-3
L1400 C-9
L1404 B-4
L1500 E-5
L1501 D-5
L1601 C-5
L1602 B-3
L1605 D-5
L2001 C-11
L2004 C-12
L2005 C-12
L2201 E-6
L2900 A-2
L3400 C-7
L3402 C-6
L3403 C-8
L3404 D-8
L5000 E-4
L5001 E-4
L5003 E-4
L5004 E-6
L5006 E-5
PS2200 E-9
Q201 E-9
Q204 E-9
Q502 D-9
Q1500 E-4
Q1501 D-5
Q1502 E-4
Q1503 D-4
Q1504 D-4
Q2006 B-1
Q2007 B-2
Q2008 B-1
Q2009 B-1
Q2014 A-2
Q2015 C-8
Q2016 C-8
Q2201 D-5
Q2202 D-5
Q2206 D-7
Q2211 F-8
Q2213 D-8
Q2214 D-8
Q2216 D-8
Q2219 C-1
Q2220 C-5
Q2901 E-6
Q3200 B-1
Q3400 C-6
Q3401 C-5
Q3402 C-5
Q3403 C-5
Q3404 C-5
Q3405 C-5
Q3406 C-5
Q3407 D-6
Q3408 C-6
Q3409 C-6
Q3410 C-6
Q3411 C-6
Q3414 C-8
Q3415 B-8
Q3416 B-8
Q3417 B-5
Q3417 B-8
Q3418 B-5
Q3418 B-8
Q5000 F-3
R202 F-2
R203 F-2
R206 E-2
R217 E-3
R221 E-3
R226 E-3
R251 E-9
R290 E-3
R291 E-3
R292 F-3
R293 E-3
R507 D-9
R508 D-9
R509 D-9
R510 D-9
R511 D-9
R512 D-9
R513 D-9
R514 D-9
R515 D-9
R516 D-9
R517 D-9
R518 D-9
R519 D-9
R520 D-9
R521 D-9
R524 E-9
R525 D-9
R526 D-9
R527 D-3
R1497 C-9
R1507 E-4
R1508 D-4
R1509 E-4
R1510 E-5
R1511 D-4
R1512 E-5
R1513 D-4
R1514 E-4
R1515 E-4
R1516 D-4
R1517 E-4
R1518 D-4
R1519 C-4
R1520 D-3
R1521 D-5
R1522 E-4
R1523 E-4
R1524 D-4
R1525 D-5
R1526 D-4
R1527 B-3
R1528 B-3
R1529 B-3
R1530 D-5
R1531 D-5
R1600 C-4
R1601 B-3
R1602 B-2
R1603 A-3
R1604 A-3
R1618 D-5
R1619 C-5
R1621 C-5
R1622 C-5
R1623 C-5
R1624 D-5
R1625 D-5
R1626 C-4
R1627 C-4
R1632 A-3
R1633 A-2
R1635 A-3
R1636 B-3
R1637 A-3
R1638 A-3
R1639 A-2
R1640 A-2
R1641 B-2
R1642 B-2
R1643 B-2
R1644 A-3
R1645 B-2
R1646 A-3
R1647 A-3
R1648 A-3
R1649 B-2
R1689 D-5
R1694 A-2
R1695 A-2
R1696 B-2
R1697 B-2
R1698 A-2
R1699 A-2
R2000 B-1
R2004 C-1
R2009 A-2
R2011 C-11
R2012 C-11
R2013 C-11
R2014 C-11
R2015 C-1
R2020 C-11
R2021 C-12
R2022 C-11
R2030 B-1
R2031 B-1
R2032 B-1
R2033 B-1
R2034 D-1
R2048 A-2
R2202 D-5
R2203 D-6
R2204 D-6
R2205 D-7
R2206 D-7
R2209 D-5
R2210 D-7
R2211 D-5
R2212 D-6
R2213 E-9
R2214 C-6
R2215 D-9
R2216 E-9
R2217 E-9
R2218 E-9
R2219 E-9
R2220 D-8
R2221 E-8
R2222 E-8
R2223 E-8
R2224 E-7
R2225 E-7
R2226 E-7
R2227 F-7
R2228 E-8
R2229 E-7
R2230 E-8
R2231 E-8
R2232 F-7
R2233 E-8
R2234 D-5
R2235 E-7
R2236 D-8
R2237 E-8
R2239 E-8
R2240 E-7
R2241 E-7
R2242 E-7
R2243 D-7
R2244 D-7
R2245 D-7
R2246 E-8
R2247 E-7
R2248 E-8
R2249 E-8
R2250 E-8
R2251 E-8
R2252 E-8
R2253 D-8
R2254 E-8
R2255 E-8
R2256 E-8
R2257 D-7
R2258 D-8
R2259 D-8
R2260 D-8
R2261 D-7
R2262 D-8
R2263 D-8
R2264 D-8
R2265 D-8
R2266 D-8
R2267 D-8
R2268 D-9
R2269 D-8
R2270 D-8
R2271 D-8
R2272 D-8
R2273 D-8
R2274 D-8
R2275 D-8
R2277 E-8
R2278 E-8
R2279 E-8
R2280 E-7
R2281 E-8
R2282 E-7
R2283 E-7
R2284 E-7
R2285 E-7
R2286 E-8
R2287 E-8
R2288 E-8
R2289 E-8
R2290 E-8
R2291 E-8
R2292 E-8
R2293 D-8
R2295 D-8
R2296 D-8
R2297 D-8
R2298 D-8
R2299 D-8
R2300 D-8
R2301 C-8
R2302 C-8
R2401 B-3
R2402 C-3
R2404 B-4
R2405 C-3
R2406 C-3
R2407 C-3
R2408 C-4
R2409 B-4
R2410 B-3
R2411 D-4
R2412 D-4
R2415 C-4
R2416 C-4
R2417 C-2
R2418 C-2
R2419 B-2
R2420 B-3
R2421 D-4
R2422 D-4
R2423 D-4
R2424 D-4
R2428 D-3
R2429 D-3
R2430 C-3
R2432 D-3
R2433 C-3
R2434 D-3
R2436 D-4
R2439 D-4
R2440 D-4
R2441 D-4
R2442 D-3
R2443 D-3
R2905 E-6
R2906 B-1
R2908 C-5
R2911 C-5
R2912 C-5
R2913 B-6
R2914 B-6
R2915 B-6
R2916 C-5
R3401 C-5
R3402 C-6
R3403 C-5
R3404 C-5
R3405 D-5
R3406 C-5
R3407 C-5
R3408 D-5
R3409 D-5
R3410 C-5
R3411 C-5
R3412 C-5
R3413 D-6
R3414 D-5
R3415 C-6
R3416 C-5
R3417 C-5
R3418 C-5
R3419 D-5
R3420 B-8
R3421 B-8
R3422 B-8
R3423 B-8
R3424 C-8
R3425 B-8
R3426 B-8
R3427 B-9
R3428 C-8
R3429 C-6
R3430 C-6
R3431 C-8
R3433 B-6
R5000 F-3
R5001 E-9
R5002 E-9
R5003 E-9
R5004 E-3
R5005 E-9
R5006 E-9
R5007 F-4
R5008 E-9
R5009 E-9
R5010 E-9
R5011 E-9
R5012 E-9
R5013 E-9
R5014 E-9
R5015 E-9
R5016 E-3
R5017 E-3
R5018 E-3
R5019 E-3
R5020 E-9
R5021 E-9
R5022 E-3
R5023 E-3
R5024 E-6
R5025 E-6
R5026 E-6
R5027 E-5
R5028 E-5
R5029 E-5
R5030 E-5
R5031 E-5
R5032 E-5
R5033 E-5
R5035 E-9
R5036 E-5
R5037 E-9
R5039 E-9
S2201 B-7
X201 E-3
X1600 C-4
X2200 D-5
X2201 D-8
X2400 B-3
VC-210 (CAMERA PROCESS, MECHA SP CONTROL, BLOCKING, CAMERA HI CONTROL, AUDIO PROCESSOR, EVF DRIVER, DC/DC CONVERTER, LINE OUT AMP) PRINTED WIRING BOARD
— Ref. No. VC-210 Board; 10,000 Series —
4-12 4-13 4-14
CAMERA/VIDEO/AUDIO PROCESSOR
VC-210
