Sony DCR-PC1 - Page 52

DCR-PC1/PC1E
DCR-PC1/PC1E
4-15 4-16
CAMERA/VIDEO/AUDIO PROCESSOR
VC-210

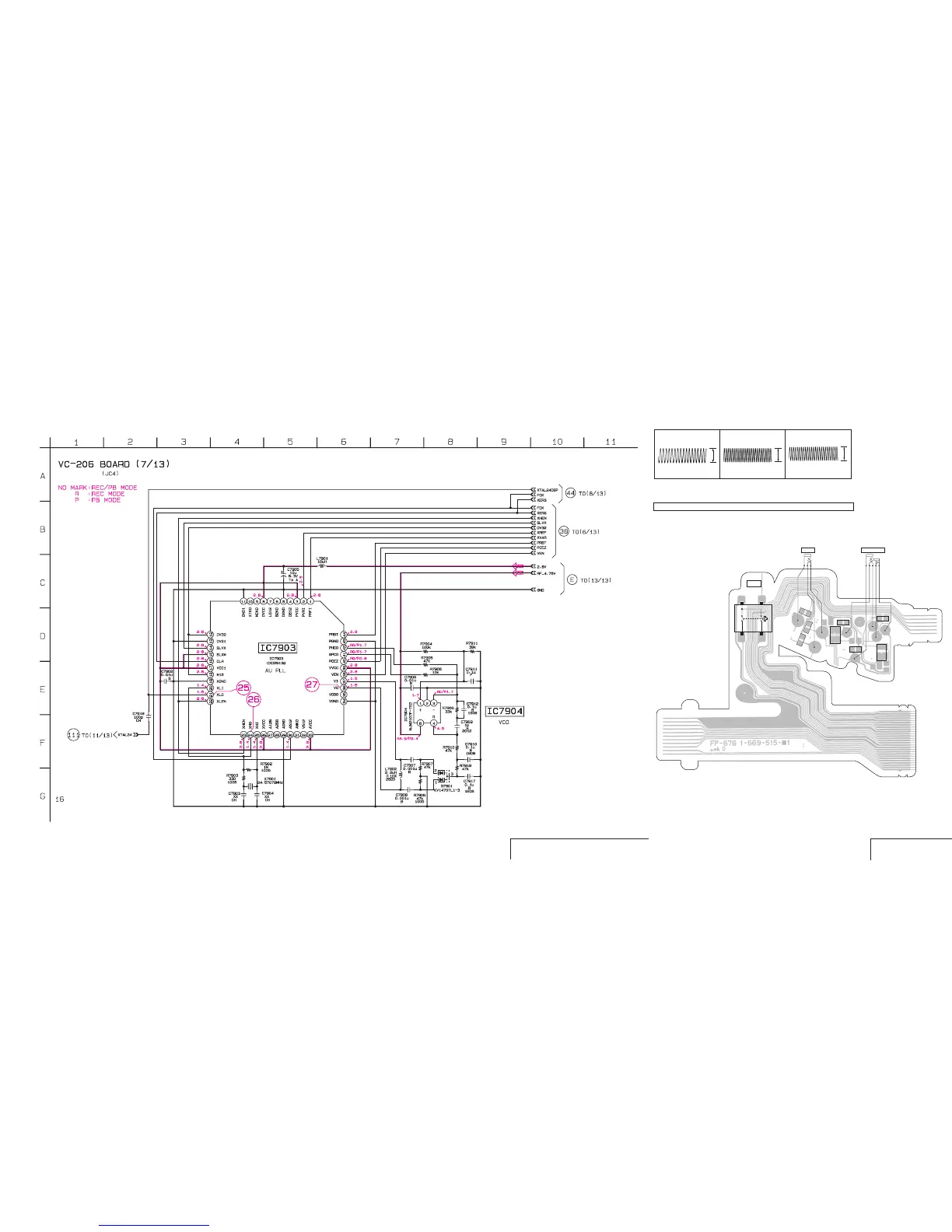

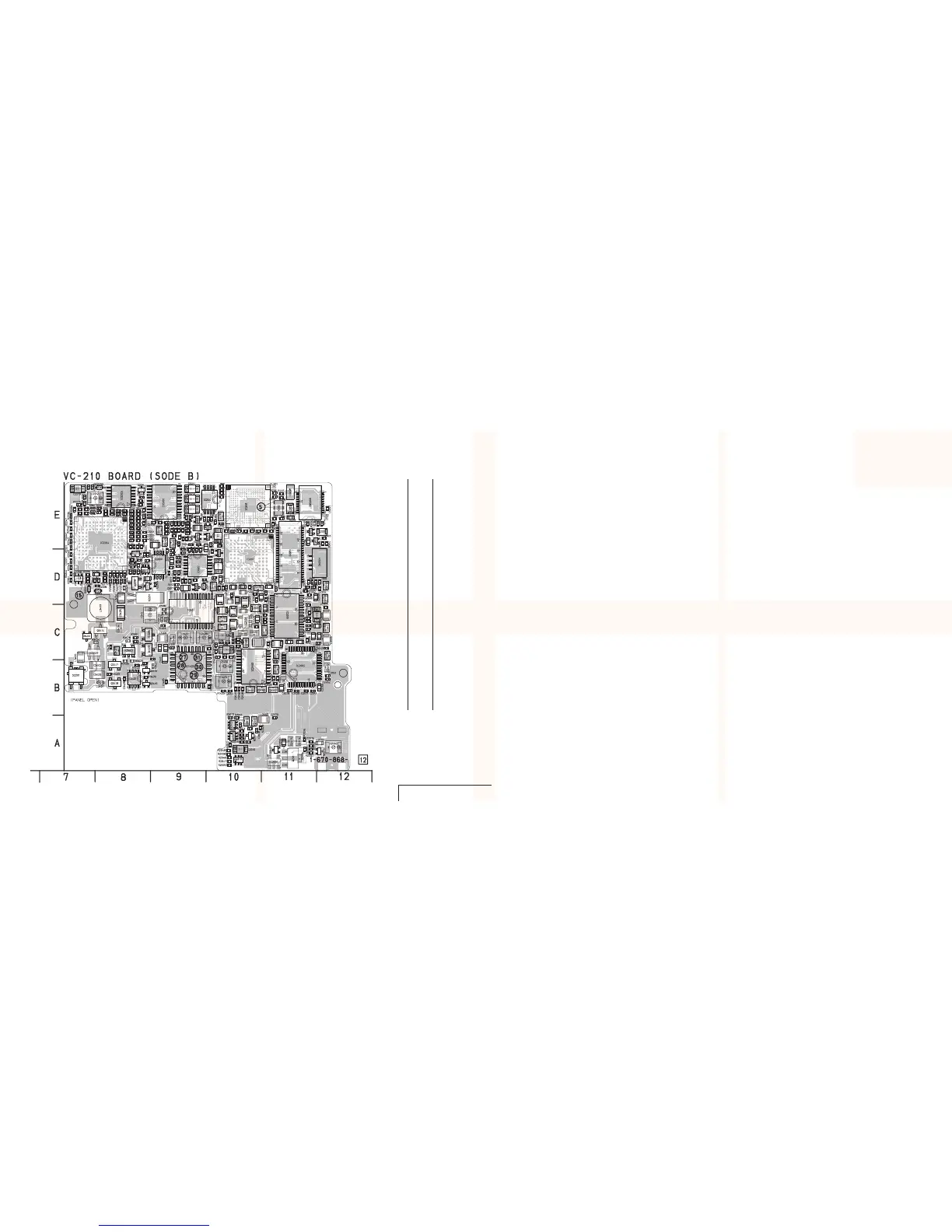

VC-210 BOARD (SIDE B)
C231 E-10
C232 E-10
C233 E-11
C234 E-11
C235 D-10
C236 D-10
C239 F-10
C240 E-10
C241 E-11
C242 D-10
C243 D-10
C244 D-10
C245 E-10
C246 E-10
C247 E-10
C248 E-10
C256 D-10
C504 D-10
C513 D-10
C519 C-10
C522 D-10
C523 D-10
C1422 C-10
C1423 B-10
C1433 C-10
C1436 C-10
C1438 C-10
C1450 B-10
C1621 C-10
C1622 C-10
C2001 D-11
C2002 D-11
C2003 D-12
C2004 D-11
C2005 D-11
C2006 D-11
C2007 A-10
C2008 D-11
C2009 C-11
C2010 A-10
C2011 C-11
C2012 D-12
C2013 D-11
C2014 D-12
C2016 A-10
C2017 C-11
C2018 B-11
C2019 C-11
C2020 C-11
C2021 B-11
C2022 C-11
C2023 B-11
C2028 B-11
C2031 C-10
C2032 C-11
C2033 C-10
C2035 C-11
C2040 C-11
C2041 B-11
C2042 C-11
C2044 C-11
C2049 B-11
C2050 D-12
C2055 B-10
C2056 B-10
C2057 B-11
C2058 A-10
C2059 C-10
C2060 B-11
C2061 C-10
C2062 B-11
C2063 B-11
C2064 B-10
C2065 C-10
C2069 B-12
C2070 A-11
C2071 B-11
C2072 B-12
C2073 A-12
C2074 A-11
C2075 A-11
C2076 A-11
C2900 A-12
C5027 E-12
C5028 E-11
CN201 D-11
CN2001 D-12
CN5000 E-11
FB202 D-11
FB203 D-11
FB205 C-10
FB206 D-10
FB209 D-10
IC204 E-10
IC206 E-10
IC207 D-10
IC2001 C-11
IC2002 B-11
IC2003 B-10
IC2005 C-10
IC2006 A-11
L202 E-11
L205 E-12
L501 C-10
L503 C-10
L504 D-10
L1603 C-10
L1604 C-10
L2002 A-11
L2003 C-10
L2400 D-10
Q202 E-10
Q203 E-10
Q205 E-11
Q501 E-11
Q503 D-10
Q2001 A-10
Q2002 A-10
Q2003 A-10
Q2010 A-10
Q2011 A-11
Q2012 A-11
Q2013 A-12
R209 E-11
R210 E-11
R213 E-12
R214 E-12
R218 D-10
R230 E-10
R234 E-10
R236 E-11
R237 E-11
R238 E-11
R245 E-11
R246 F-10
R247 E-11
R250 E-11
R252 E-10
R255 E-10
R256 E-10
R258 D-10
R259 D-10
R260 E-11
R264 E-10
R266 E-10
R284 E-10
R285 D-10
R286 E-11
R502 E-12
R503 E-12
R504 E-12
R505 D-10
R522 D-10
R523 E-10
R1418 C-10
R1419 C-10
R1421 C-10
R1425 B-10
R1430 C-10
R1432 C-10
R1433 C-10
R1438 C-10
R1439 C-10
R1498 B-10
R2001 D-11
R2002 D-11
R2005 A-10
R2006 A-10
R2007 A-10
R2008 A-10
R2010 A-10
R2018 A-10
R2019 A-10
R2023 C-10
R2025 C-10
R2026 B-10
R2027 B-11
R2028 A-10
R2029 B-10
R2040 D-11
R2041 D-11
R2042 A-10
R2043 A-10
R2044 A-10
R2045 A-10
R2046 A-10
R2047 A-10
R2049 A-10
R2050 A-11
R2051 A-11
R2052 B-12
R2053 B-12
R2054 A-11
R2055 A-11
R2056 A-11
R2057 A-11
R2403 D-10
X202 E-11
