DCR-VX2000/VX2000E

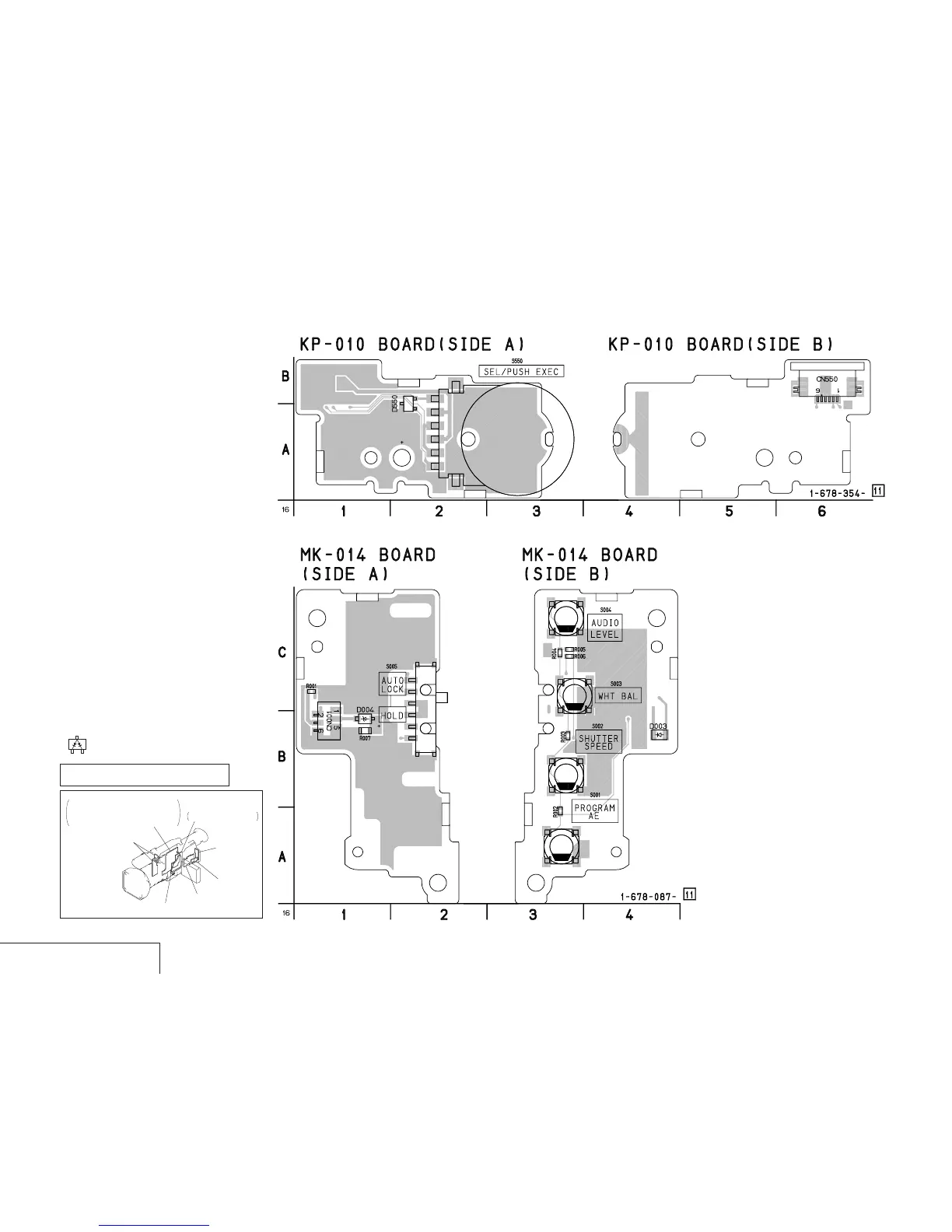

KP-010 (SELECT DIAL), MK-014 (CONTROL KEY) PRINTED WIRING BOARDS
— Ref. No. KP-010, MK-014 Boards; 10,000 Series —
4-79 4-80
SELECT DIAL
KP-010
CONTROL KEY
MK-014
/
MK-014
(CONTROL KEY)
LA-026
200m/FOCUS DRIVE, VAP DRIVE,
KEY IN/CONNECTOR
VC-242
S/H AGC, TG, CAMERA SIGNAL PROCESS,
MS I/F, RS232C I/F, STILL CONTROL, MS DRIVE,
DV SIGNAL PROCESS, REC/PB AMP,
LINE IN/OUT, LINE A/D, RGB DRIVE/TG,
CAMERA CONTROL, DRUM/CAPSTAN MOTOR DRIVE,
HI CONTROL, AU LINE A/D, D/A, LINE AMP
JK-190
(JACK BOARD)
KP-010
(SELECT DIAL)
MS-049
(MS CONNECTOR)
DD-138
(DC/DC CONVERTER, DC REGULATOR)
For printed wiring boards
• Refer to page 4-117 for parts location.
• These boards are six-layer print board. However, the
patterns of layers two to five have not been included in
the diagrams.
• Chip parts
Diode
There are few cases that the part printed on this
diagram isn’t mounted in this model.
3
21
