Sony DCR-VX2000 - Audio System Adjustments

5-55
3-5. AUDIO SYSTEM ADJUSTMENTS
Switch setting:
MIC/LINE .............................................................................. MIC
MIC LEVEL (Menu) ........................................................... AUTO
[Connection of Audio System Measuring Devices]

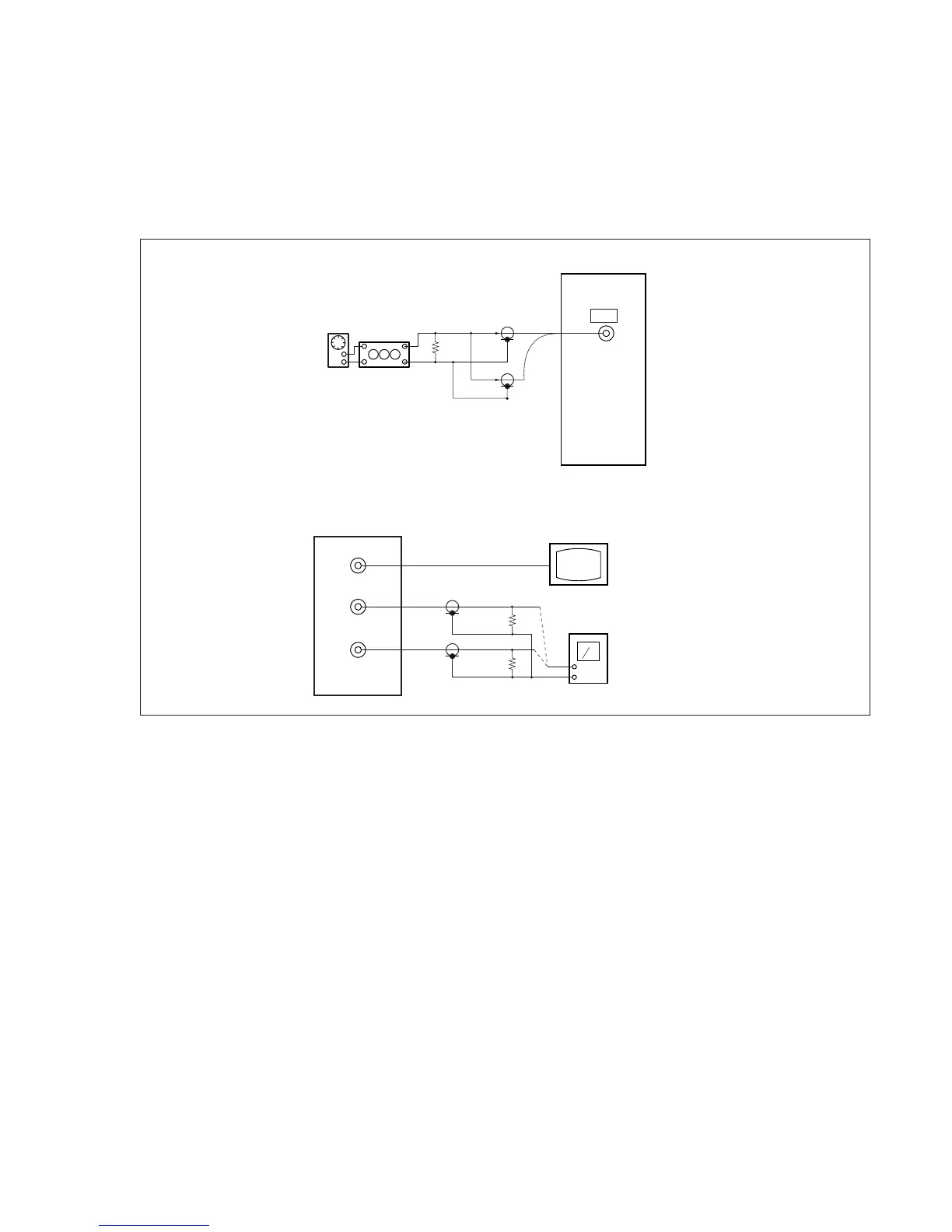

Connect the audio system measuring devices as shown in Fig. 5-3-11.
Fig. 5-3-11.
Recording (Camera mode)
Audio oscillator
Attenuator
600
Ω
Left
Right
Main unit
MIC
600
Ω : 270 Ω (1-249-410-11) + 330 Ω (1-249-411-11)
Main unit
47k
Ω
47k Ω
Video
Video jack
Audio jack
L
R
TV monitor
Audio level meter
or Distortion meter
47k
Ω (1-249-437-11)
Playback
