Sony DCR-VX2000 - Cabinet (R) Block Assembly; Cabinet Bottom (D) Assembly

2-7

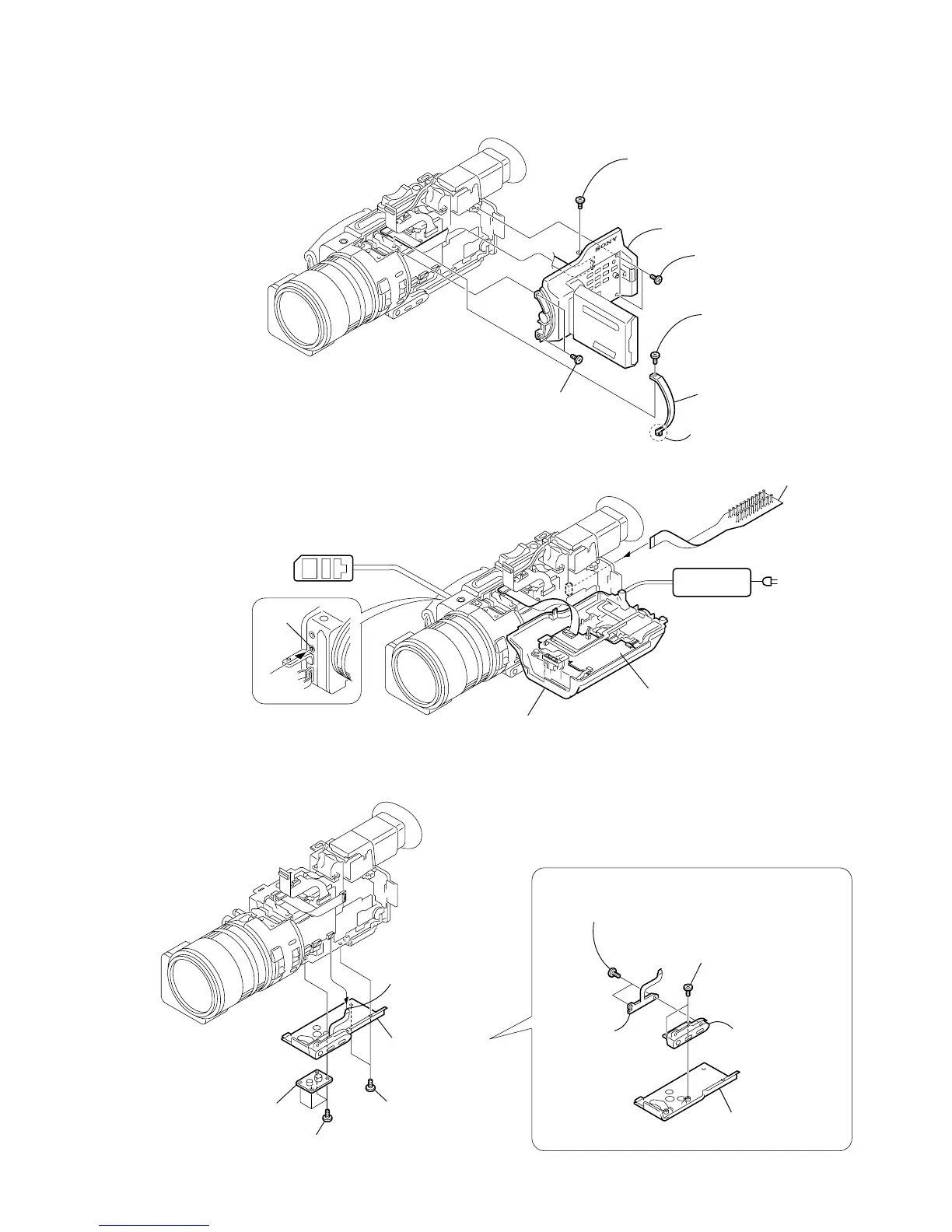

2-6. CABINET (R) BLOCK ASSEMBLY
2-7. CABINET BOTTOM (D) ASSEMBLY
CK-093
Board
1 Screw
(M2 × 5),
spring bolt
5 Screw
(M2 × 5),
spring bolt
4 Two screws
(M2 × 5),
spring bolt
6 Two screws
(M2 × 5),
spring bolt
7 Cabinet (R) block assembly
Cabinet (R) block assembly
CK-093 board
3 CF ornamental plate
2 Claw
AC POWER
ADAPTOR
AC IN
Adjustment remote
commander (RM-95)
LANC
jack
[CK-093 BOARD SERVICE POSITION]
CPC-13 jig
(J-6082-443-A)
2 Four screws
(M2
× 5),
spring bolt
4 Two screws
(M2 × 5),
spring bolt
1 Two tapping screws
(B2
× 5)
3 Two tapping screws
(B2
× 5)
5 FBS cover
assembly
4 Cabinet (bottom)
3 Tripod table
5 Cabinet bottom
(D) assembly
1 FP-189
flexible board (6P)
2 FP-189
flexible board
REMOVING THE FBS COVER ASSEMBLY
