Sony DCR-VX2000 - Boards

2-4

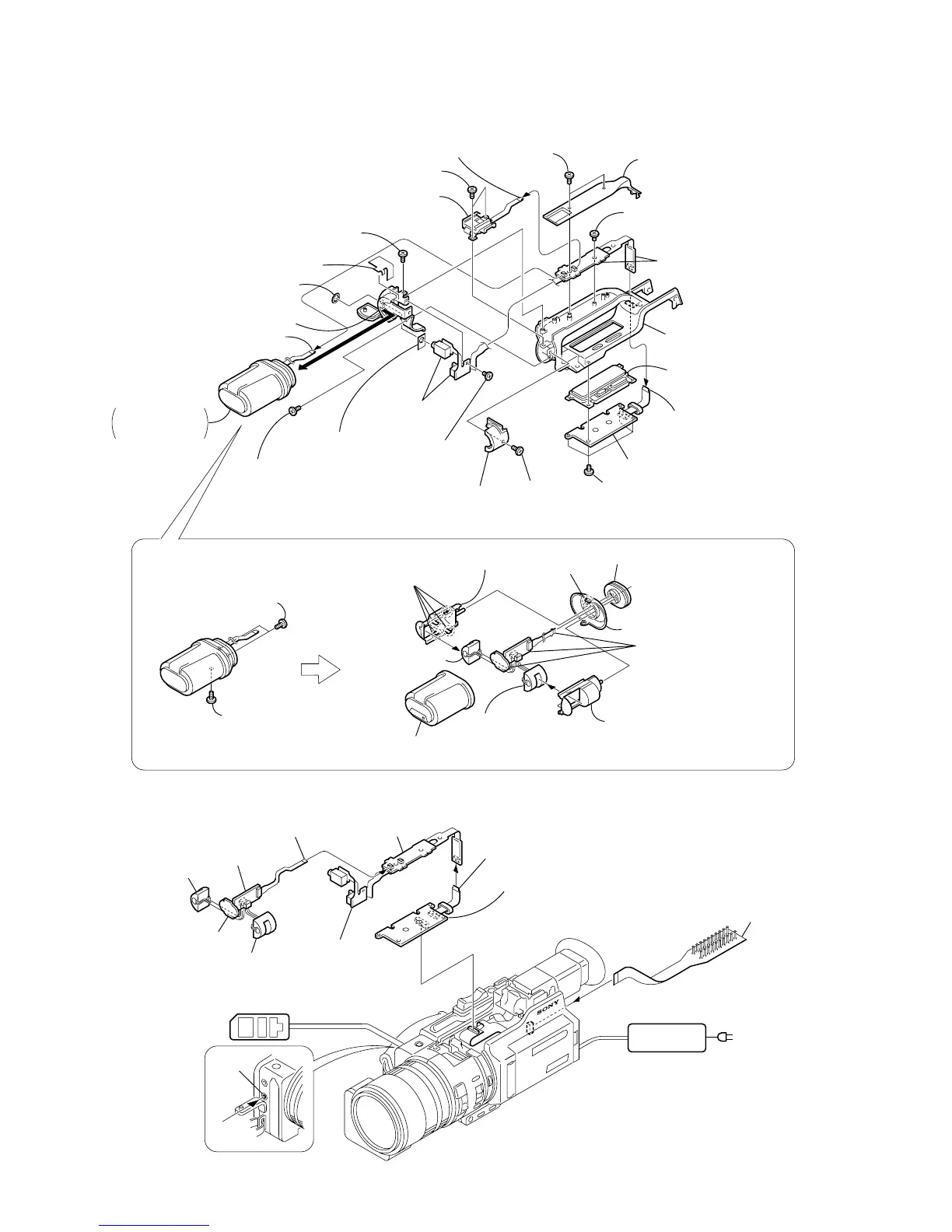

2-4. FK-076, MA-386, MI-038, FT-090 BOARDS
1 FP-202 flexible
board (27P)
9 FP-201 flexible board (15P)
qs FP-199 flexible
board (15P)
wa FP-198
flexible board
ws M terminal
protection
sheet
qd Remove it in the
direction of the
arrow A .
A
4
FK frame (D)
assembly
3 FK-076 board
2 Four screws
(M2 × 3),
spring bolt
5 Two screws
(M2 × 5),
spring bolt
qh Screw (M2 × 5),
spring bolt
qf Microphon sheet
1 Two tapping
screws (B2 × 5)
2 Tapping
screw (B2
× 5)
4 Claw
7 Four claws
8 Microphone
unit
9 Microphone case
qa Microphone case
q; Microphone
unit
5 Microphone cover
qs FP-199 flexible board,
MI-038 board,
FT-090 board
6 Microphone
mask assembly
3 Rubber neck
assembly
ql Nut (M6 × 0.5)
qg Screw (M2 × 3),
spring bolt
qk Handle assembly,
(Upper) cabinet
wd MA-386
board
qj Screw
(M2 × 5),
spring bolt
w; Screw
(M2 × 3),
spring bolt
q; Two screws (M2 × 3),
spring bolt
qa Outer connector (hot shoe),
Strap sheet metal (F),
FP-201 flexible board
7 Screw
(M2 × 5),
spring bolt
8 Microphone
cabinet (L)
wf Microphone
cabinet (R) assembly
6 Handle cover
assembly
REMOVING THE MI-038, FT-090 BOARDS
FT-090 board
MI-038 board
FP-199 flexible
board (15P)
Microphone unit
Microphone unit
FP-198
flexible board
MA-386 board
FP-202 flexible board (27P)
FK-076 board
Adjustment remote
commander (RM-95)
LANC
jack
AC POWER
ADAPTOR
AC IN
CPC-13 jig
(J-6082-443-A
)
[FK-076, MA-386, MI-038, FT-090 BOARDS SERVICE POSITION]
