Sony DCR-VX2000 - Upper Handle Section

6-6

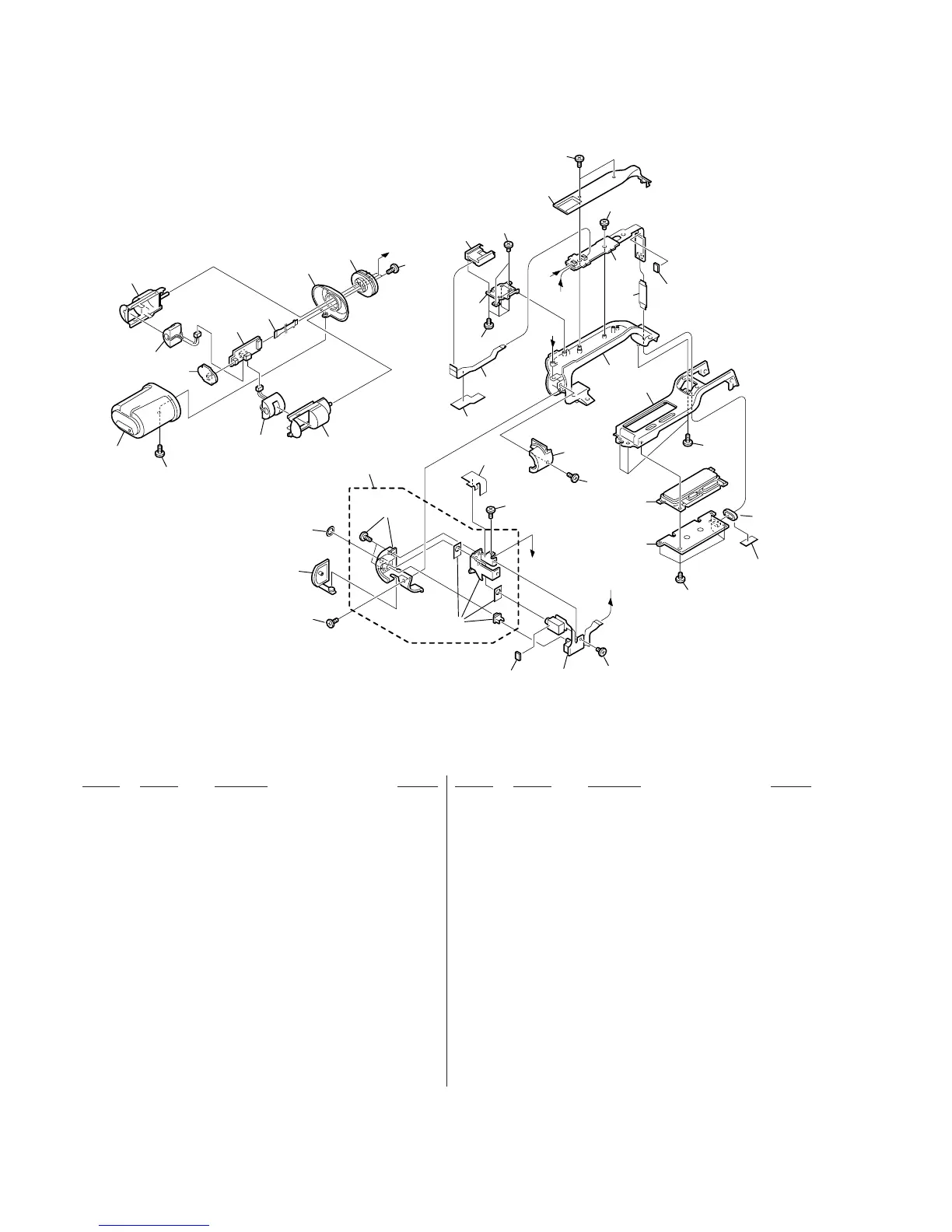

6-1-6. UPPER HANDLE SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
C
C
A
B
A
B
251
251
252
252
253
254
255
256
257
258
259
260
261
262
263
282
264
265
266
279
267
268
269
270
281
271
272
262
273
262
261
MIC901
MIC902
261
261
262
274
280
275
276
277
not supplie
d
not
supplied
not
supplied
278
251 3-963-968-01 CASE, MICROPHONE
252 3-948-339-01 SCREW, TAPPING
253 X-3950-579-1 MASK ASSY, MICROPHONE
254 A-7074-413-A FT-090 BOARD, COMPLETE
255 A-7074-411-A MI-O38 BOARD, COMPLETE
256 1-678-066-11 FP-199 FLEXIBLE BOARD
257 3-060-706-01 COVER, MICROPHONE
258 X-3945-076-1 NECK ASSY, RUBBER
259 1-785-594-11 CONNECTOR (HOT SHOE), OUTER
260 X-3950-582-1 COVER ASSY, HANDLE
261 3-053-121-41 BOLT (M2), SPRING
262 3-053-121-11 BOLT (M2), SPRING
263 A-7074-410-A MA-386 BOARD, COMPLETE
264 3-060-709-01 SHEET METAL (F), STRAP
265 3-989-735-11 SCREW (M1.7), LOCK ACE, P2
266 1-678-068-11 FP-201 FLEXIBLE BOARD
267 1-678-049-11 FP-202 FLEXIBLE BOARD
268 X-3950-685-1 HANDLE ASSY
269 3-060-786-11 CABINET (UPPER)
270 3-053-121-21 BOLT (M2), SPRING
271 X-3950-600-1 FRAME (D) ASSY, FK
272 A-7074-412-A FK-076 BOARD, COMPLETE
273 3-060-708-01 CABINET (L), MICROPHONE
274 1-678-065-21 FP-198 FLEXIBLE BOARD
275 X-3950-684-1 CABINET (R) ASSY, MICROPHONE
276 3-061-234-01 NUT(M6X0.5)
277 3-060-707-01 COVER, MJ
* 278 3-061-544-01 SHEET, MICROPHONE
* 279 3-061-626-01 SHEET, MA SHIELD
* 280 3-061-511-01 SPACER, MICROPHONE
281 1-469-829-11 CORE, FERRITE (VX2000)
* 282 3-062-543-01 CUSHION, MA FLEXIBLE
MIC901 1-542-263-11 MICROPHONE UNIT
MIC902 1-542-263-11 MICROPHONE UNIT
