Sony DCR-VX2000 - Battery Panel Block Assembly (Mk-014, Kp-010, Ms-049 Boards); Evf Block Assembly; Boards

2-8

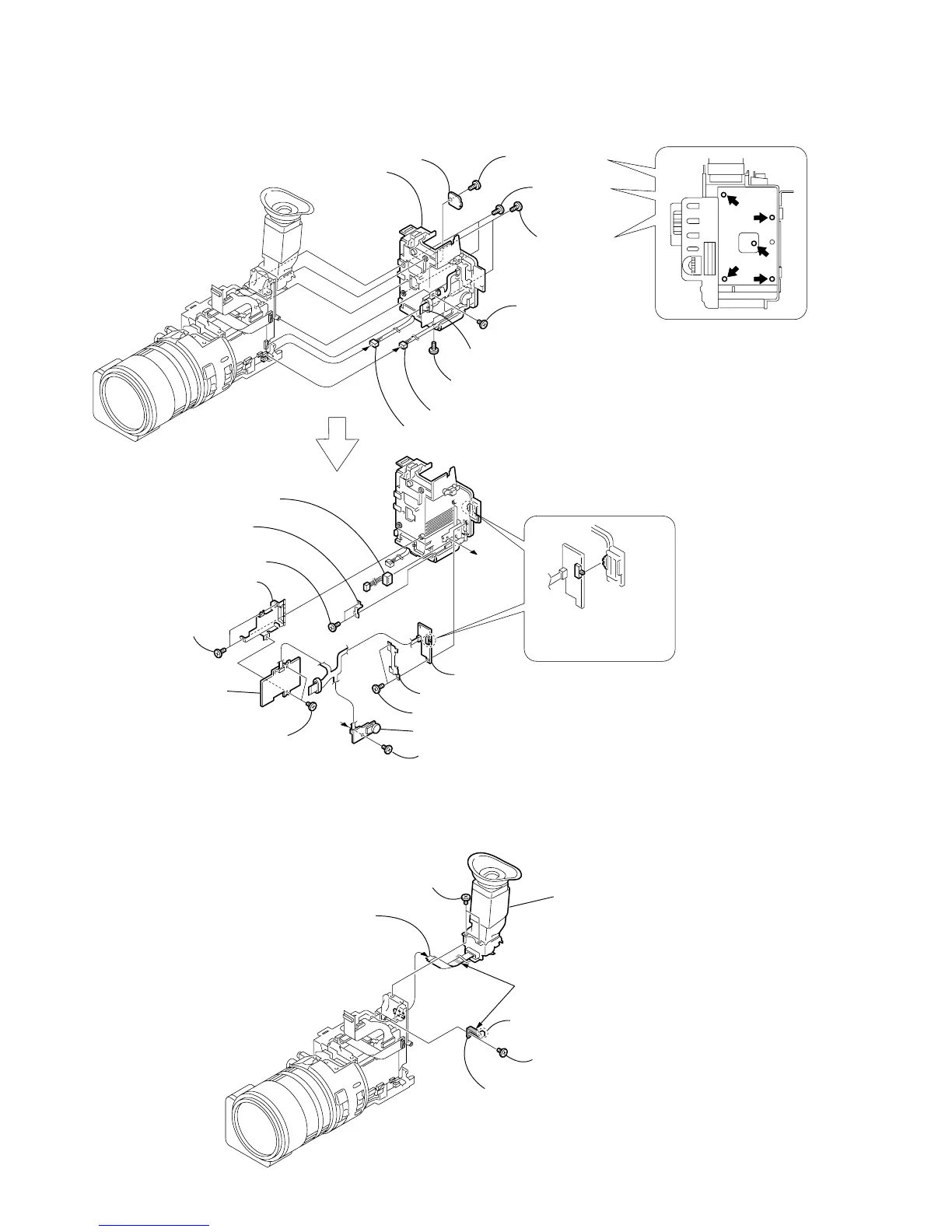

2-8. BATTERY PANEL BLOCK ASSEMBLY (MK-014, KP-010, MS-049 BOARDS)
2-9. EVF BLOCK ASSEMBLY
LA-026
board
MS-049
Board
A
A
1 FP-190
flexible board (20P)
2 DC-IN connector (3P)
3 Battery terminal board (4P)
5 Screw (M2 × 5),
spring bolt
8 Screw (M2 × 5),
spring bolt
9 CPC cover
q; Battery panel block assembly
4 Screw (M2 × 3),
spring bolt
6 Two screws
(M2 × 5),
spring bolt
7 Two screws
(M2
× 5),
spring bolt
1 Two tapping screws (B2 × 5)
8 Two tapping
screws (B2
× 5)
q; Two tapping
screws (B2
× 5)
qa DC jack retainer
qs DC-IN connector
9 MS holder assembly
2 MK retainer
3 MK-014 board
When installing it,
align the switch position
as shown.
5 KP-010 board
7 MS-049 board
4 Screw (M2 × 3),
spring bolt
6 Two screws
(M2
× 3),
spring bolt
PRECAUTION DURING
INSTALLATION
LA-026
board
2 Screw (M2 × 3),
spring bolt
6 Two screws
(M2
× 3),
spring bolt
7 EVF block assembly
3 Claw
5 Flexible clamp
4 Peel off the area
shown by shading.
1 FP-193
flexible board (27P)
