Sony DCR-VX2000 - Cabinet (L) Section

6-3

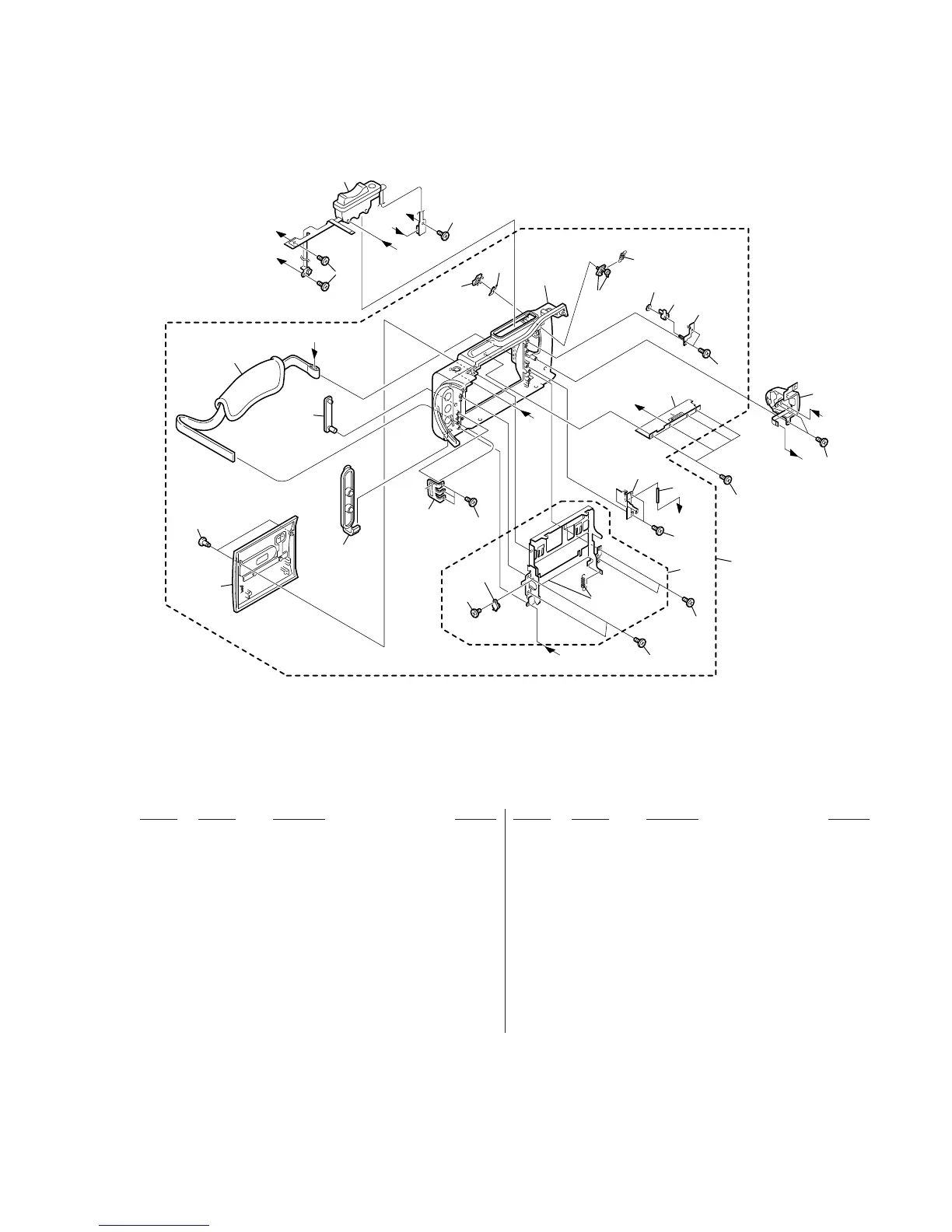

6-1-3. CABINET (L) SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
A
B
B
C
C
D
E
F
F
E
A
D
not
supplied
not
supplied
not
supplied
101
102
103
104
105
104
104
114
116
104
104
106
107
108
109
110
111
112
113
115
117
118
119
120
121
122
121
121
123
121
101 X-3950-678-1 CABINET (L) ASSY (VX2000)
101 X-3950-688-1 CABINET (L) ASSY (VX2000E)
102 3-703-357-08 PIN(DIA. 1.6 SERISE)
103 3-060-550-01 BRACKET (REAR), GRIP
104 3-948-339-01 SCREW, TAPPING
105 X-3950-561-1 CS ASSY
106 3-051-871-01 BRACKET (FRONT), BELT
107 3-060-540-01 COVER (AV), JACK
108 X-3950-679-1 LID ASSY, CASSETTE
109 3-060-790-01 SCREW (M2 STEP)
110 3-060-548-01 BELT, GRIP
111 3-060-541-01 COVER (L), JACK
112 3-060-551-01 KNOB, EJECT
113 3-060-549-01 SHEET, EJECT
114 4-634-290-11 DAMPER
115 3-060-554-01 SPRING, TENSION
116 3-968-729-81 SCREW (M2), LOCK ACE, P2
117 3-669-465-01 WASHER (1.5), STOPPER
118 3-060-553-01 LEVER, EJECT
119 X-3950-585-1 SHEET METAL ASSY, EJECT
120 X-3950-562-1 SLIDER ASSY
121 3-948-339-61 TAPPING
122 1-476-075-21 SWITCH BLOCK, CONTROL (PS-4980)
123 1-476-025-21 SWITCH BLOCK, CONTROL (CF-4980)
