Sony DCR-VX2000 - Evf Section (Lb-065 Board); Upper) Handle Block Assembly

2-3

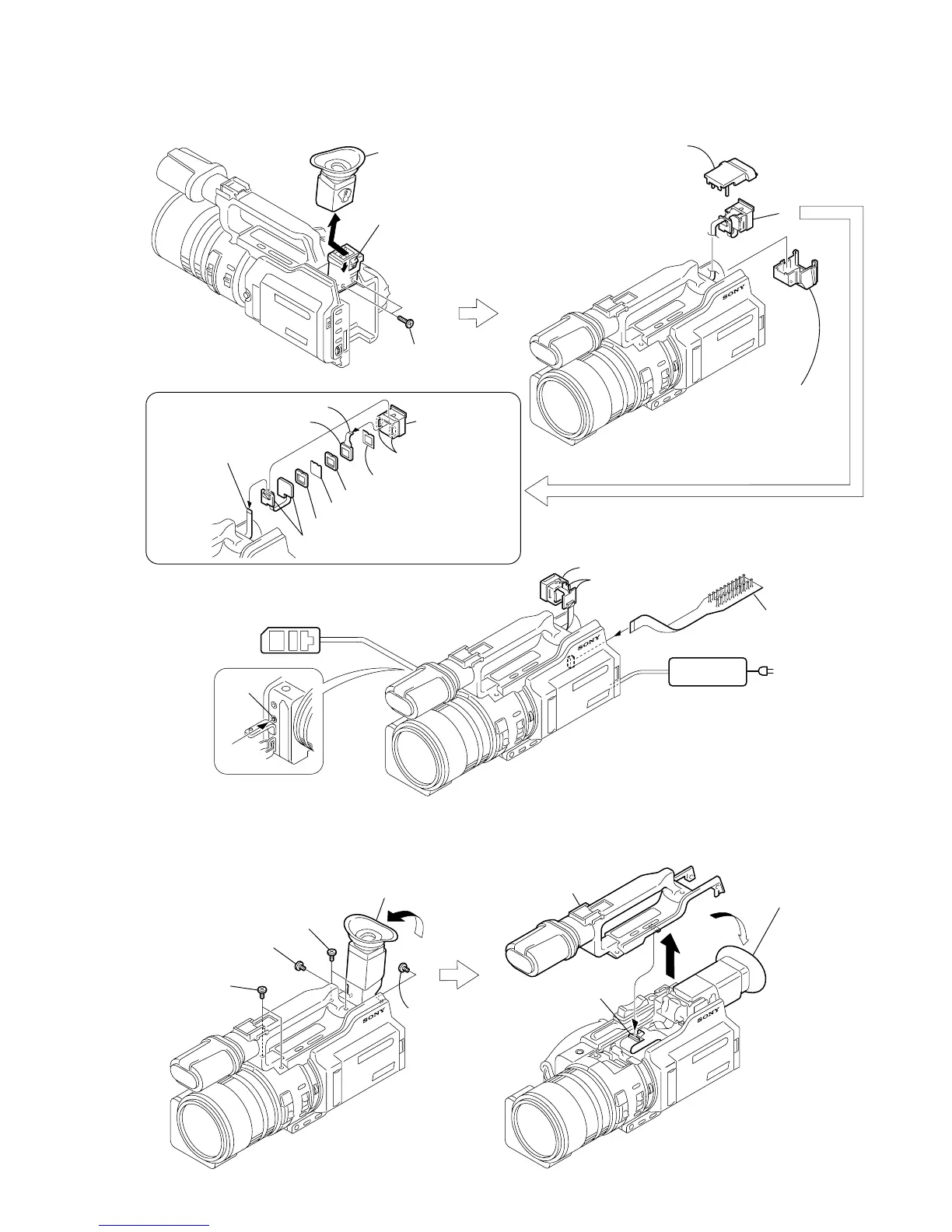

2-2. EVF SECTION (LB-065 BOARD)
2-3. (UPPER) HANDLE BLOCK ASSEMBLY
A
B
1
Push the lock knob
in the direction of the
arrow
A and remove the
EVF rear cabinet assembly
in the direction of the
arrow
B .
2 EVF rear
cabinet assembly
4 EVF front cabinet (upper)
6
5
EVF front cabinet
(lower) assembly
3 Two tapping
screws (M1.7 × 8)
1 FP-193
flexible board (27P)
2 LCD (LCX033AK-J)(16P)
8 LCD (LCX033AK-J)
3 Two claws
4 LB-065 board
5 LCD cushion (498)
6 Illuminator (498)
7 LCD cushion (498)
9 Light interception sheet
q; LCD holder
assembly
REMOVING THE LB-065 BOARD
LB-065 board
LCD holder assembly
Adjustment remote
commander (RM-95)
LANC
jack
AC POWER
ADAPTOR
AC IN
CPC-13 jig
(J-6082-443-A)
[LB-065 BOARD SERVICE POSITION]
1 Two screws
(M2 × 5),
spring bolt
2 Two screws
(M2 × 5),
spring bolt
3 Screw (M2 × 5),
spring bolt
5 Screw
(M2 × 5),
spring bolt
4 Tilt up the finder.
6 Tilt down the finder.
7
9
(Upper) handle
block assembly
8 FP-200 flexible
board (36P)
