Sony DCR-VX2000 - Printed Wiring Board; Control Switch

DCR-VX2000/VX2000E
4-83 4-84
CONTROL SWITCH
FK-076

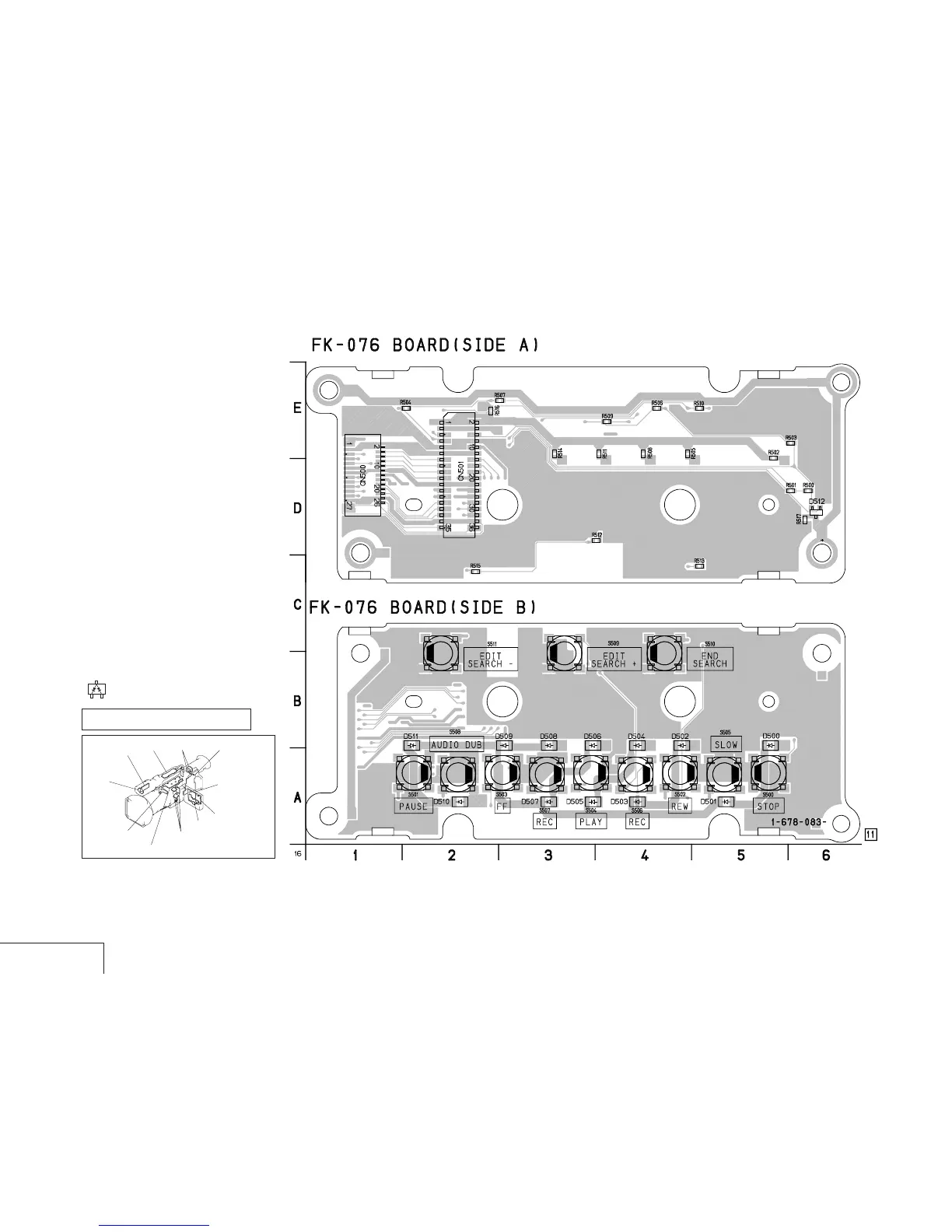

FK-076 (CONTROL SWITCH) PRINTED WIRING BOARD
— Ref. No. FK-076 Board; 1,000 Series —
FT-090
(REMOTE)
MI-038
(MIC IN)
MA-386
(AUDIO AMP)
LB-065
(BACK LIGHT)
CK-093
(KEY IN)
PD-126
(RGB DRIVE/TG)
HL-011
(LCD DRIVE)
CD-254
(CCD IMAGER)
FK-076
(CONTROL SWITCH)
INVERTER TRANSFORME
R
UNIT
SE-108
(VAP SENSOR)
For printed wiring board
• Refer to page 4-117 for parts location.
• This board is six-layer print board. However, the pat-
terns of layers two to five have not been included in
the diagram.
• Chip parts
Diode
There are few cases that the part printed on this
diagram isn’t mounted in this model.
