Sony DCR-VX2000 - White Balance Check

5-26

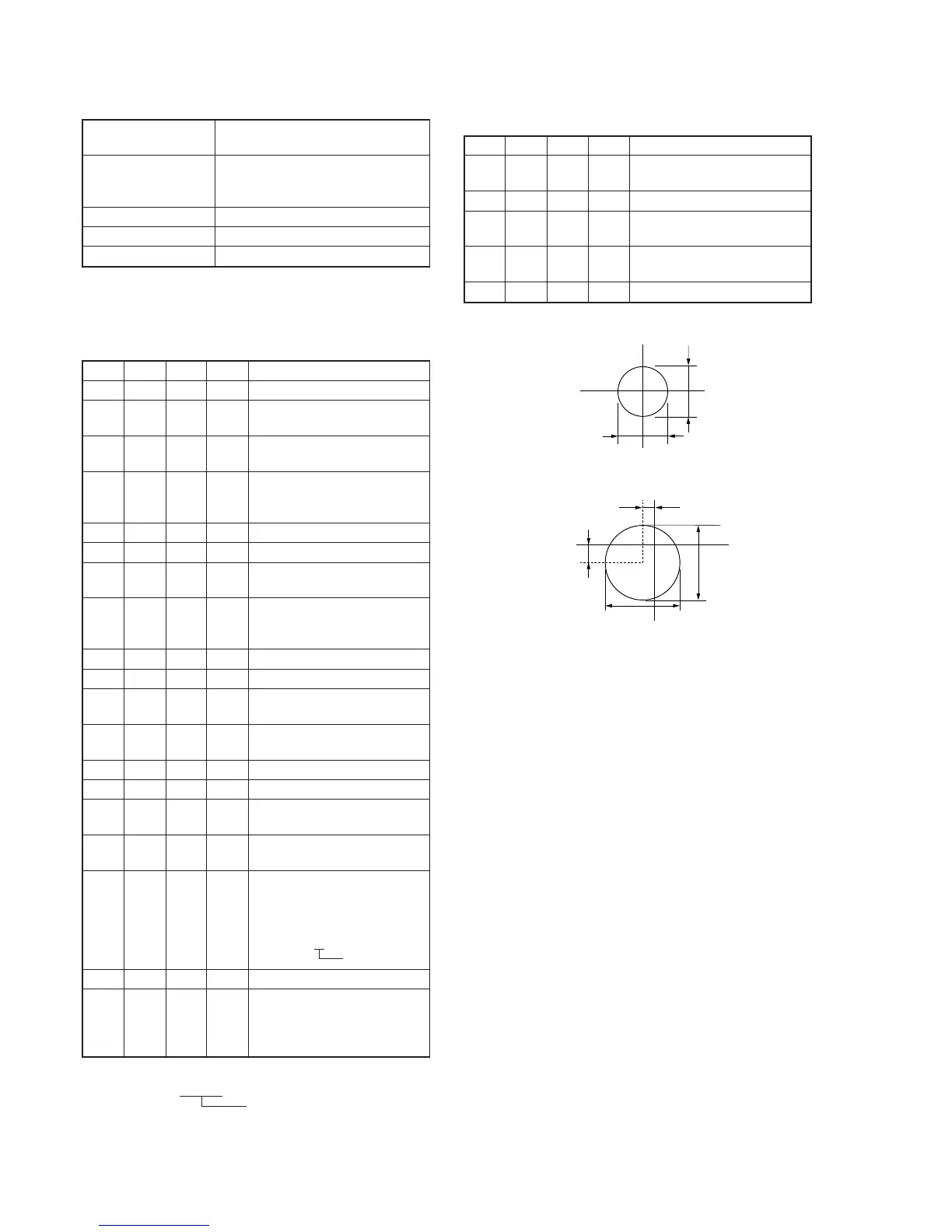

19. White Balance Check
Subject Clear chart
(Color bar standard picture frame)
Filter Filter C14 for color temperature
correction
ND filter 1.0 and 0.3 (2 sheets)
Measurement Point Video output terminal
Measuring Instrument Vectorscope
Specified Value Fig. 5-1-12. A to B
Switch setting:
ND FILTER......................................................................OFF
(The data of page: 6, address: 9D is “00”.)
Checking method:
Order Page Address Data Procedure
Indoor white balance check
1 Check that the lens is not
covered with either filter.
2 6 01 0F Set the data, and press PAUSE
button.
3 Check that the center of the
white luminance point is within
the circle shown Fig. 5-1-12. A.
Outdoor white balance check
4 Place the C14 filter on the lens.
5 6 01 3F Set the data, and press PAUSE
button.
6 Check that the center of the
white luminance point is within
the circle shown Fig. 5-1-12. B.
7 Remove the C14 filter.
Indoor white balance data check
8 Place the ND filter 1.6
(1.0+0.3+0.3) on the lens.
9 6 01 0F Set the data, and press PAUSE
button.
10 Wait for 2 seconds.
11 0 01 01 Set the data.
12 F 10 A1 Set the data, and press PAUSE
button.
13 F 11 04 Set the data, and press PAUSE
button.
14 1 Check that the second digit of
the display data (Note) is an odd
number.
Specified value:
1 : XX : XX
Odd number
15 6 04 C6 Set the data.
16 1 Check that the display data
(Note) satisfies the specified
value.
Specified value: 0000 to 0C50
Note: Displayed data of the adjustment remote commander.
1 : XX : XX
Display data
Processing after Completing Adjustments
Order Page Address Data Procedure
1 6 01 00 Set the data, and press PAUSE
button.
2 6 04 00 Set the data.
3 F 10 00 Set the data, and press PAUSE
button.
4 F 11 00 Set the data, and press PAUSE
button.
5 0 01 00 Set the data.
R-Y 4mm
B-Y
4mm
R-Y
B-
Y
1.5mm
1.0mm
6mm
6mm
Fig. 5-1-12. (A)
Fig. 5-1-12. (B)
