DCR-VX2000/VX2000E
4-92
BACK LIGHT
LB-065

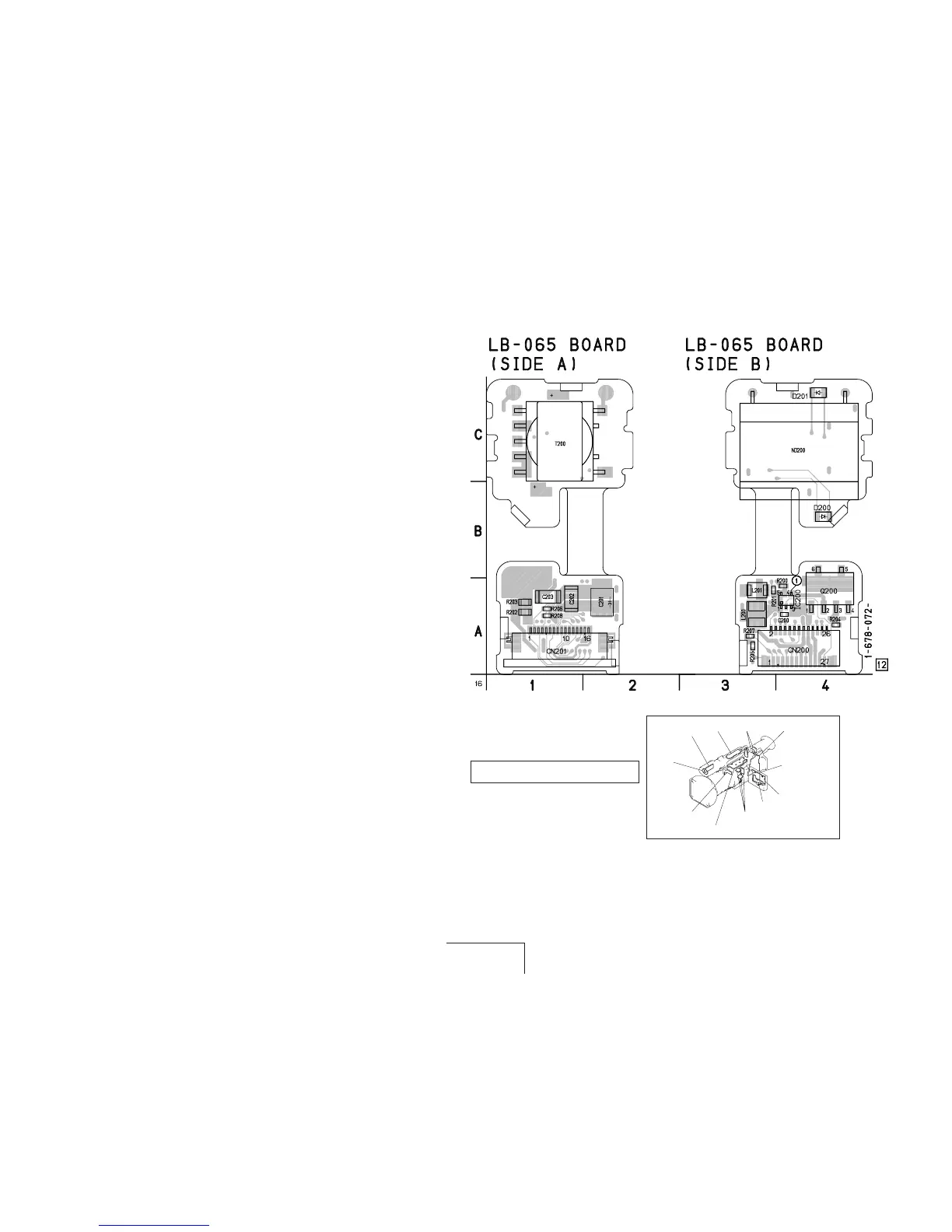

LB-065 (BACK LIGHT) PRINTED WIRING BOARD
— Ref. No. LB-065 Board; 1,000 Series —
For printed wiring board
• Refer to page 4-118 for parts location.
• This board is four-layer print board. However, the pat-
terns of layers two and three have not been included
in the diagram.
There are few cases that the part printed on this
diagram isn’t mounted in this model.
FT-090
(REMOTE)
MI-038
(MIC IN)
MA-386
(AUDIO AMP)
LB-065
(BACK LIGHT)
CK-093
(KEY IN)
PD-126
(RGB DRIVE/TG)
HL-011
(LCD DRIVE)
CD-254
(CCD IMAGER)
FK-076
(CONTROL SWITCH)
INVERTER TRANSFORMER
UNIT
SE-108
(VAP SENSOR)
DCR-VX2000/VX2000E
