Sony DCR-VX2000 - Page 117

DCR-VX2000/VX2000E
4-95 4-96
LCD DRIVE
HL-011

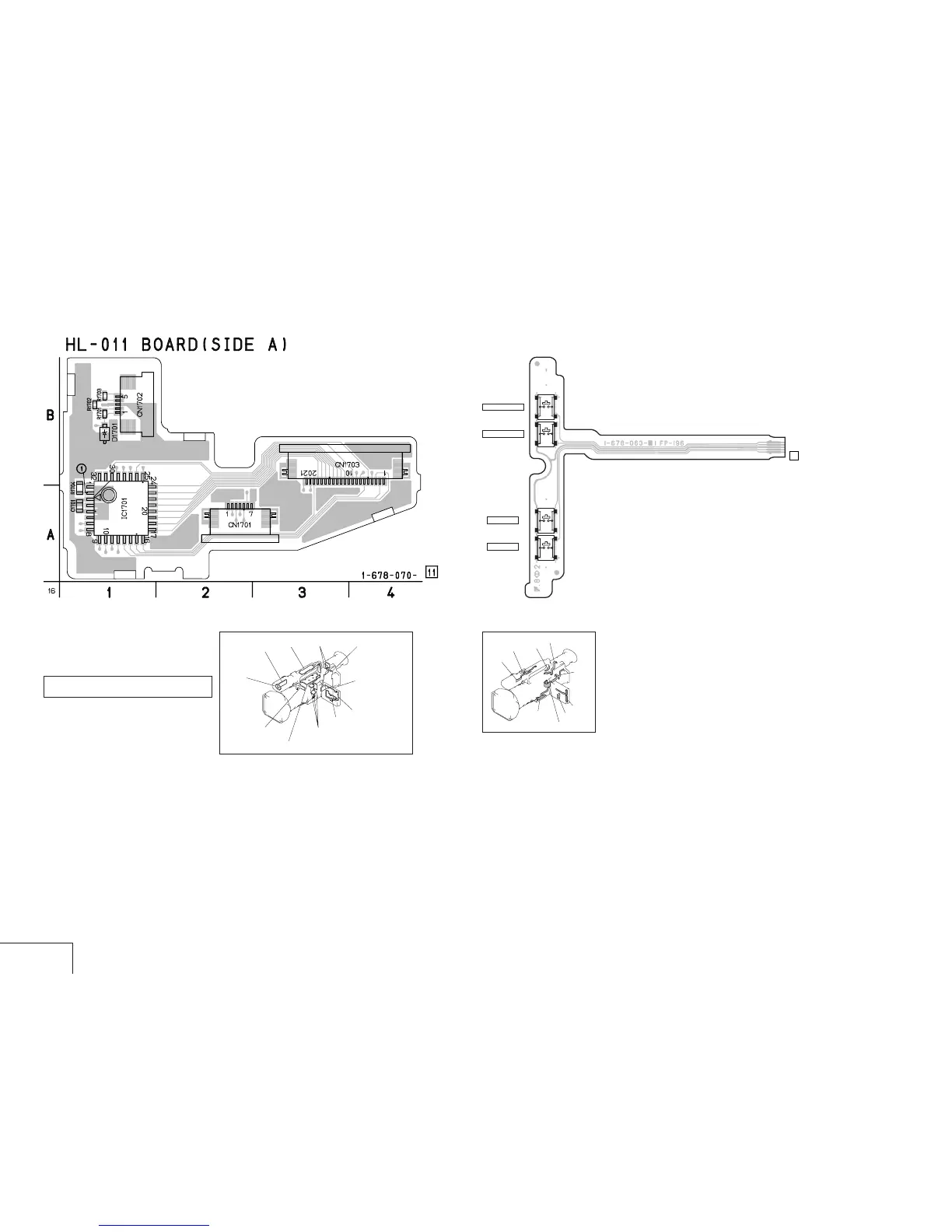

HL-011 (LCD DRIVE) PRINTED WIRING BOARD
— Ref. No. HL-011 Board; 20,000 Series —
For printed wiring board
• Refer to page 4-118 for parts location.
• This board is six-layer print board. However, the pat-
terns of layers two to six have not been included in the
diagram.
There are few cases that the part printed on this
diagram isn’t mounted in this model.
FT-090
(REMOTE)
MI-038
(MIC IN)
MA-386
(AUDIO AMP)
LB-065
(BACK LIGHT)
CK-093
(KEY IN)
PD-126
(RGB DRIVE/TG)
HL-011
(LCD DRIVE)
CD-254
(CCD IMAGER)
FK-076
(CONTROL SWITCH)
INVERTER TRANSFORME
R
UNIT
SE-108
(VAP SENSOR)
FP-201
FP-202
FP-193
FP-190
FP-196
FP-195
FP-191
FP-189
FP-199
1-678-063-
21
S001
LCD BRIGHT+
S003
S004
S001
S002
S002
LCD BRIGHT–
S003
VOLUME+
S004
VOLUME–
FP-196 FLEXIBLE BOARD
1
5
